Panasonic Projector PT-RS11K User Manual
Here you can view all the pages of manual Panasonic Projector PT-RS11K User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

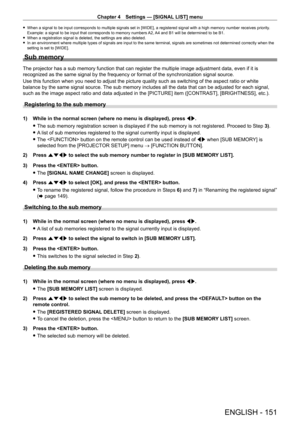

Page 151
![Page 151
Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 151
fWhen a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority .
Example: a signal to be input that corresponds to memory numbers A2,
A4 and B1 will be determined to be B1.
fWhen a registration signal is deleted, the settings are also deleted. fIn an environment where multiple types of signals are input to the same \
terminal, signals are sometimes not determined correctly...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-150.png "Page 151
Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 151
fWhen a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority .
Example: a signal to be input that corresponds to memory numbers A2,
A4 and B1 will be determined to be B1.
fWhen a registration signal is deleted, the settings are also deleted. fIn an environment where multiple types of signals are input to the same \
terminal, signals are sometimes not determined correctly...")
Chapter 4 Settings — [SIGNAL LIST] menu ENGLISH - 151 fWhen a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority . Example: a signal to be input that corresponds to memory numbers A2, A4 and B1 will be determined to be B1. fWhen a registration signal is deleted, the settings are also deleted. fIn an environment where multiple types of signals are input to the same \ terminal, signals are sometimes not determined correctly...

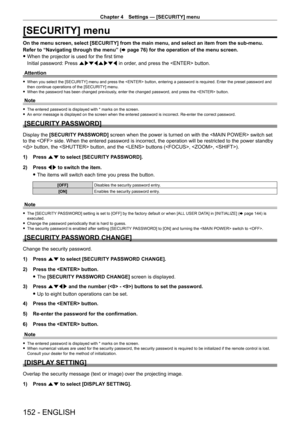

Page 152
![Page 152
Chapter 4 Settings — [SECURITY] menu
152 - ENGLISH
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
fWhen the projector is used for the first time
Initial password: Press awsqawsq in order
, and press the button.
Attention
f When you select the [SECURITY] menu and press the button, entering a password is required. Enter the preset password and...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-151.png "Page 152
Chapter 4 Settings — [SECURITY] menu
152 - ENGLISH
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
fWhen the projector is used for the first time
Initial password: Press awsqawsq in order
, and press the button.
Attention
f When you select the [SECURITY] menu and press the button, entering a password is required. Enter the preset password and...")
Chapter 4 Settings — [SECURITY] menu 152 - ENGLISH [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. fWhen the projector is used for the first time Initial password: Press awsqawsq in order , and press the button. Attention f When you select the [SECURITY] menu and press the button, entering a password is required. Enter the preset password and...

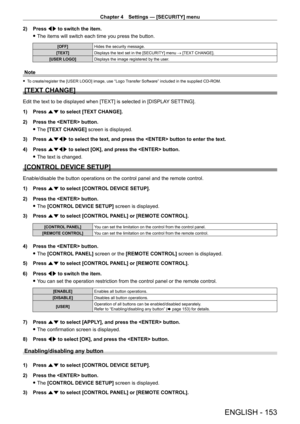

Page 153
![Page 153
Chapter 4 Settings — [SECURITY] menu
ENGLISH - 153
2) Press qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Hides the security message.
[TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE].
[USER LOGO] Displays the image registered by the user.
Note
fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLA Y SETTING].
1)
Press...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-152.png "Page 153
Chapter 4 Settings — [SECURITY] menu
ENGLISH - 153
2) Press qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Hides the security message.
[TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE].
[USER LOGO] Displays the image registered by the user.
Note
fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLA Y SETTING].
1)
Press...")
Chapter 4 Settings — [SECURITY] menu ENGLISH - 153 2) Press qw to switch the item. fThe items will switch each time you press the button. [OFF] Hides the security message. [TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [USER LOGO] Displays the image registered by the user. Note fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM. [TEXT CHANGE] Edit the text to be displayed when [TEXT] is selected in [DISPLA Y SETTING]. 1) Press...

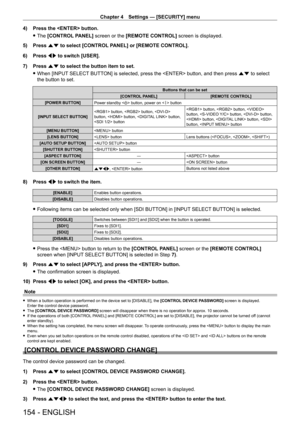

Page 154
![Page 154
Chapter 4 Settings — [SECURITY] menu
154 - ENGLISH
4) Press the button.
fThe
[CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5)
Press
as to select [CONTROL PANEL] or [REMOTE CONTROL].
6)
Press
qw to switch [USER].
7)
Press
as to select the button item to set.
fWhen [INPUT
SELECT BUTTON] is selected, press the button, and then press as to select
the button to set.
Buttons that can be set
[CONTROL PANEL] [REMOTE CONTROL]
[POWER BUTTON] Power standby button, power...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-153.png "Page 154
Chapter 4 Settings — [SECURITY] menu
154 - ENGLISH
4) Press the button.
fThe
[CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5)
Press
as to select [CONTROL PANEL] or [REMOTE CONTROL].
6)
Press
qw to switch [USER].
7)
Press
as to select the button item to set.
fWhen [INPUT
SELECT BUTTON] is selected, press the button, and then press as to select
the button to set.
Buttons that can be set
[CONTROL PANEL] [REMOTE CONTROL]
[POWER BUTTON] Power standby button, power...")
Chapter 4 Settings — [SECURITY] menu 154 - ENGLISH 4) Press the button. fThe [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed. 5) Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. 6) Press qw to switch [USER]. 7) Press as to select the button item to set. fWhen [INPUT SELECT BUTTON] is selected, press the button, and then press as to select the button to set. Buttons that can be set [CONTROL PANEL] [REMOTE CONTROL] [POWER BUTTON] Power standby button, power...

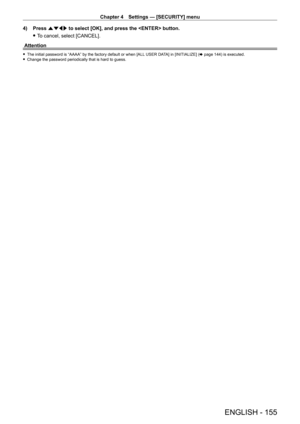

Page 155
![Page 155
Chapter 4 Settings — [SECURITY] menu
ENGLISH - 155
4) Press asqw to select [OK], and press the button.
fT
o cancel, select [CANCEL].
Attention
f The initial password is “AAAA” by the factory default or when [ALL USER DA TA] in [INITIALIZE] (x page 144) is executed. fChange the password periodically that is hard to guess.](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-154.png "Page 155
Chapter 4 Settings — [SECURITY] menu
ENGLISH - 155
4) Press asqw to select [OK], and press the button.
fT
o cancel, select [CANCEL].
Attention
f The initial password is “AAAA” by the factory default or when [ALL USER DA TA] in [INITIALIZE] (x page 144) is executed. fChange the password periodically that is hard to guess.")
Chapter 4 Settings — [SECURITY] menu ENGLISH - 155 4) Press asqw to select [OK], and press the button. fT o cancel, select [CANCEL]. Attention f The initial password is “AAAA” by the factory default or when [ALL USER DA TA] in [INITIALIZE] (x page 144) is executed. fChange the password periodically that is hard to guess.

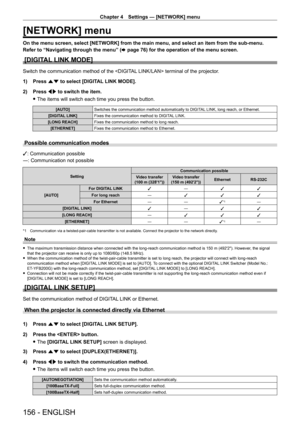

Page 156
![Page 156
Chapter 4 Settings — [NETWORK] menu
156 - ENGLISH
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1)
Press
as to select [DIGITAL LINK MODE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Switches the...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-155.png "Page 156
Chapter 4 Settings — [NETWORK] menu
156 - ENGLISH
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1)
Press
as to select [DIGITAL LINK MODE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Switches the...")
Chapter 4 Settings — [NETWORK] menu 156 - ENGLISH [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the terminal of the projector. 1) Press as to select [DIGITAL LINK MODE]. 2) Press qw to switch the item. fThe items will switch each time you press the button. [AUTO] Switches the...

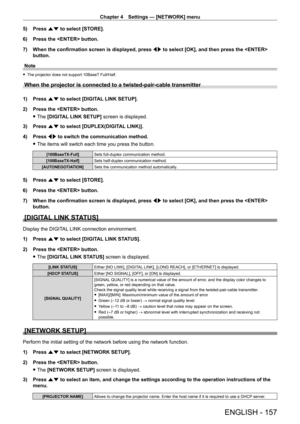

Page 157
![Page 157
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 157
5) Press as to select [STORE].
6)
Press the button.
7)
When the confirmation screen is displayed, press qw
to select [OK], and then press the
button.
Note
f The projector does not support 10BaseT Full/Half.
When the projector is connected to a twisted-pair-cable transmitter
1) Press as to select [DIGITAL LINK SETUP].
2)
Press the button.
fThe
[DIGITAL LINK SETUP] screen is displayed.
3)
Press
as to select [DUPLEX(DIGITAL LINK)].
4)...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-156.png "Page 157
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 157
5) Press as to select [STORE].
6)
Press the button.
7)
When the confirmation screen is displayed, press qw
to select [OK], and then press the
button.
Note
f The projector does not support 10BaseT Full/Half.
When the projector is connected to a twisted-pair-cable transmitter
1) Press as to select [DIGITAL LINK SETUP].
2)
Press the button.
fThe
[DIGITAL LINK SETUP] screen is displayed.
3)
Press
as to select [DUPLEX(DIGITAL LINK)].
4)...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 157 5) Press as to select [STORE]. 6) Press the button. 7) When the confirmation screen is displayed, press qw to select [OK], and then press the button. Note f The projector does not support 10BaseT Full/Half. When the projector is connected to a twisted-pair-cable transmitter 1) Press as to select [DIGITAL LINK SETUP]. 2) Press the button. fThe [DIGITAL LINK SETUP] screen is displayed. 3) Press as to select [DUPLEX(DIGITAL LINK)]. 4)...

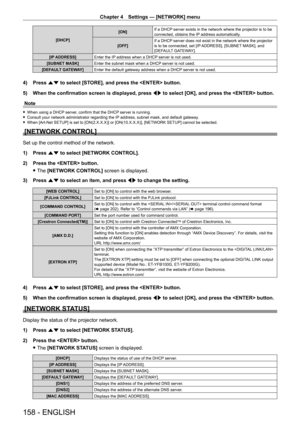

Page 158
![Page 158
Chapter 4 Settings — [NETWORK] menu
158 - ENGLISH
[DHCP][ON]
If a DHCP server exists in the network where the projector is to be
connected, obtains the IP address automatically.
[OFF] If a DHCP server does not exist in the network where the projector
is to be connected, set [IP ADDRESS], [SUBNET MASK], and
[DEFAULT GATEWAY].
[IP ADDRESS] Enter the IP address when a DHCP server is not used.
[SUBNET MASK] Enter the subnet mask when a DHCP server is not used.
[DEFAULT GATEWAY] Enter the default gateway...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-157.png "Page 158
Chapter 4 Settings — [NETWORK] menu
158 - ENGLISH
[DHCP][ON]
If a DHCP server exists in the network where the projector is to be
connected, obtains the IP address automatically.
[OFF] If a DHCP server does not exist in the network where the projector
is to be connected, set [IP ADDRESS], [SUBNET MASK], and
[DEFAULT GATEWAY].
[IP ADDRESS] Enter the IP address when a DHCP server is not used.
[SUBNET MASK] Enter the subnet mask when a DHCP server is not used.
[DEFAULT GATEWAY] Enter the default gateway...")
Chapter 4 Settings — [NETWORK] menu 158 - ENGLISH [DHCP][ON] If a DHCP server exists in the network where the projector is to be connected, obtains the IP address automatically. [OFF] If a DHCP server does not exist in the network where the projector is to be connected, set [IP ADDRESS], [SUBNET MASK], and [DEFAULT GATEWAY]. [IP ADDRESS] Enter the IP address when a DHCP server is not used. [SUBNET MASK] Enter the subnet mask when a DHCP server is not used. [DEFAULT GATEWAY] Enter the default gateway...

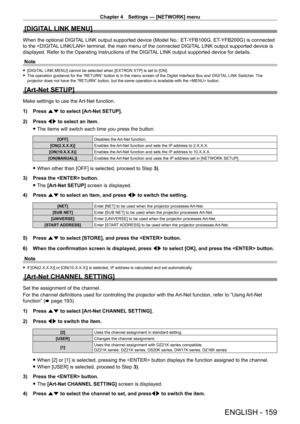

Page 159
![Page 159
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 159
[DIGITAL LINK MENU]
When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET- YFB200G) is connected
to the terminal, the main menu of the connected DIGITAL LINK output supported device is
displayed. Refer to the Operating Instructions of the DIGITAL LINK output supported device for details.
Note
f [DIGITAL LINK MENU] cannot be selected when [EXTRON XTP] is set to [ON]. fThe operation guidance for the “RETURN” button is in the...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-158.png "Page 159
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 159
[DIGITAL LINK MENU]
When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET- YFB200G) is connected
to the terminal, the main menu of the connected DIGITAL LINK output supported device is
displayed. Refer to the Operating Instructions of the DIGITAL LINK output supported device for details.
Note
f [DIGITAL LINK MENU] cannot be selected when [EXTRON XTP] is set to [ON]. fThe operation guidance for the “RETURN” button is in the...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 159 [DIGITAL LINK MENU] When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET- YFB200G) is connected to the terminal, the main menu of the connected DIGITAL LINK output supported device is displayed. Refer to the Operating Instructions of the DIGITAL LINK output supported device for details. Note f [DIGITAL LINK MENU] cannot be selected when [EXTRON XTP] is set to [ON]. fThe operation guidance for the “RETURN” button is in the...

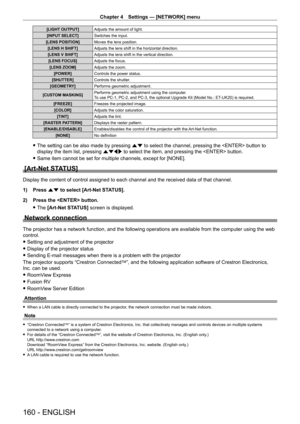

Page 160
![Page 160
Chapter 4 Settings — [NETWORK] menu
160 - ENGLISH
[LIGHT OUTPUT]Adjusts the amount of light.
[INPUT SELECT] Switches the input.
[LENS POSITION] Moves the lens position.
[LENS H SHIFT] Adjusts the lens shift in the horizontal direction.
[LENS V SHIFT] Adjusts the lens shift in the vertical direction.
[LENS FOCUS] Adjusts the focus.
[LENS ZOOM] Adjusts the zoom.
[POWER] Controls the power status.
[SHUTTER] Controls the shutter.
[GEOMETRY] Performs geometric adjustment.
[CUSTOM MASKING] Performs geometric...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-159.png "Page 160
Chapter 4 Settings — [NETWORK] menu
160 - ENGLISH
[LIGHT OUTPUT]Adjusts the amount of light.
[INPUT SELECT] Switches the input.
[LENS POSITION] Moves the lens position.
[LENS H SHIFT] Adjusts the lens shift in the horizontal direction.
[LENS V SHIFT] Adjusts the lens shift in the vertical direction.
[LENS FOCUS] Adjusts the focus.
[LENS ZOOM] Adjusts the zoom.
[POWER] Controls the power status.
[SHUTTER] Controls the shutter.
[GEOMETRY] Performs geometric adjustment.
[CUSTOM MASKING] Performs geometric...")
Chapter 4 Settings — [NETWORK] menu 160 - ENGLISH [LIGHT OUTPUT]Adjusts the amount of light. [INPUT SELECT] Switches the input. [LENS POSITION] Moves the lens position. [LENS H SHIFT] Adjusts the lens shift in the horizontal direction. [LENS V SHIFT] Adjusts the lens shift in the vertical direction. [LENS FOCUS] Adjusts the focus. [LENS ZOOM] Adjusts the zoom. [POWER] Controls the power status. [SHUTTER] Controls the shutter. [GEOMETRY] Performs geometric adjustment. [CUSTOM MASKING] Performs geometric...
