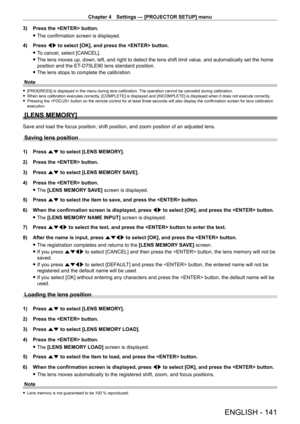

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 141
3) Press the  button.
 fThe confirmation screen is displayed.
4)


Press
 qw to select [OK], and press the  button.
 fT

o cancel, select [CANCEL].
 fThe lens moves up, down, left, and right to detect the lens shift limit \
value, and automatically set the home
position and the ET
-

D75LE90 lens standard position.
 fThe lens stops to complete the calibration.
Note
 f [PROGRESS] is displayed in the menu during lens calibration.  The operation...

Chapter 4 Settings — [PROJECTOR SETUP] menu
142 - ENGLISH

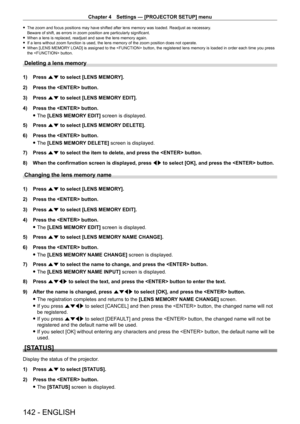

 fThe zoom and focus positions may have shifted after lens memory was loaded. Readjust as necessary .
Beware of shift, as errors in zoom position are particularly significant.
 f When a lens is replaced, readjust and save the lens memory again. fIf a lens without zoom function is used, the lens memory of the zoom position does not operate. fWhen [LENS MEMOR

Y LOAD] is assigned to the  button, the registered lens memory is loaded in order each...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 143

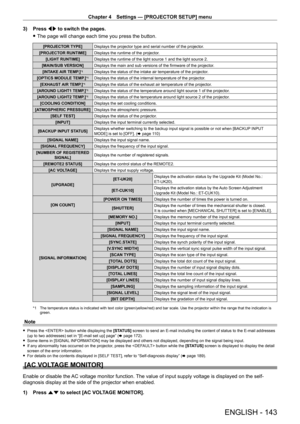

3) Press qw to switch the pages.
 fThe page will change each time you press the button.
[PROJECTOR TYPE] Displays the projector type and serial number of the projector.
[PROJECTOR RUNTIME] Displays the runtime of the projector.
[LIGHT RUNTIME] Displays the runtime of the light source 1 and the light source 2.
[MAIN/SUB VERSION] Displays the main and sub versions of the firmware of the projector .
[INTAKE AIR TEMP.]
*1Displays the status of the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
144 - ENGLISH

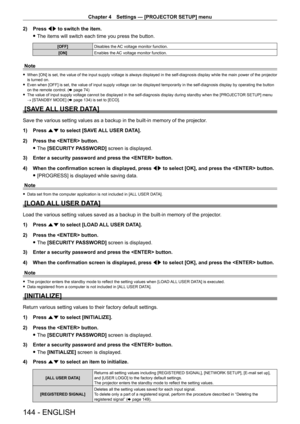

2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Disables the AC voltage monitor function.
[ON] Enables the AC voltage monitor function.
Note
 fWhen [ON] is set, the value of the input supply voltage is always displayed in the self-diagnosis display while the main power of the projector
is turned on.
 f Even when [OFF] is set, the value of input supply voltage can be displayed temporarily in the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 145

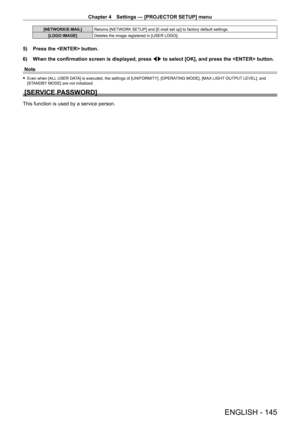

[NETWORK/E-MAIL]Returns [NETWORK SETUP] and [E-mail set up] to factory default settings.
[LOGO IMAGE] Deletes the image registered in [USER LOGO].
5) Press the  button.
6)
When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
Note
 f Even when [ALL  USER DATA] is executed, the settings of [UNIFORMITY], [OPERATING MODE], [MAX LIGHT OUTPUT LEVEL], and
[STANDBY MODE] are not initialized.
[SERVICE PASSWORD]...

Chapter 4 Settings — [P IN P] menu
146 - ENGLISH

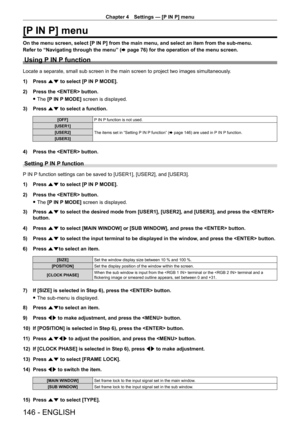

[P IN P] menu
On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously .
1)
Press
 as to select [P IN P MODE].
2)

Press the  button.
 fThe

[P IN P MODE] screen is displayed.
3)

Press
 as to select a...

Chapter 4 Settings — [P IN P] menu
ENGLISH - 147

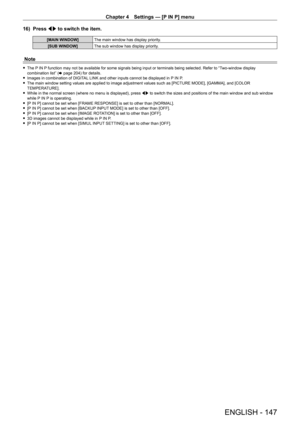

16) Press qw to switch the item.
[MAIN WINDOW] The main window has display priority.
[SUB WINDOW] The sub window has display priority.
Note
 fThe P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display
combination list” ( x
  page   204) for details.
 fImages in combination of DIGIT

AL LINK and other inputs cannot be displayed in P IN P.
 fThe main window setting values are applied to...

Chapter 4 Settings — [TEST PATTERN] menu
148 - ENGLISH

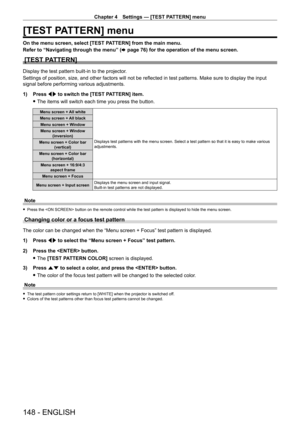

[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input
signal before performing various adjustments.
1)

Press
 qw to switch the [TEST PATTERN]...

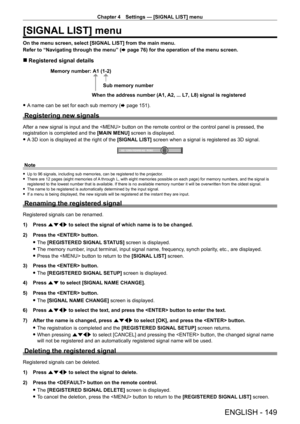

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 149
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
 rRegistered signal details
A1 (1-2)
When the address number (A1, A2, ... L7, L8) signal is registered Sub memory number
Memory number:
 f
A name can be set for each sub memory (x   page   151).
Registering new signals
After a new signal is input and the  button on the remote...

Chapter 4 Settings — [SIGNAL LIST] menu
150 - ENGLISH

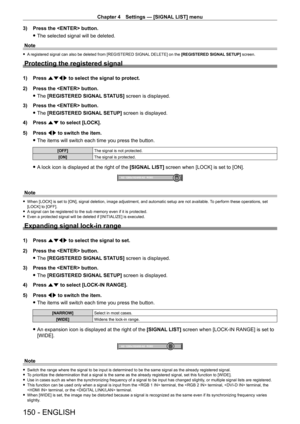

3) Press the  button.
 fThe selected signal will be deleted.
Note
 f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press  asqw to select the signal to protect.
2)
Press the  button.
 fThe

[REGISTERED SIGNAL STATUS] screen is displayed.
3)

Press the  button.
 fThe

[REGISTERED SIGNAL SETUP] screen is displayed.
4)

Press
 as to select...
