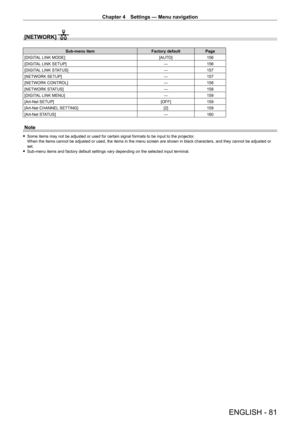

Chapter 4 Settings — Menu navigation
ENGLISH - 81
[NETWORK]
Sub-menu itemFactory defaultPage
[DIGITAL LINK MODE] [AUTO]156
[DIGITAL LINK SETUP] ―156
[DIGITAL LINK STATUS] ―157
[NETWORK SETUP] ―157
[NETWORK CONTROL] ―158
[NETWORK STATUS] ―158
[DIGITAL LINK MENU] ―159
[Art-Net SETUP] [OFF]159
[Art-Net CHANNEL SETTING] [2]159
[Art-Net STATUS] ―160
Note
fSome items may not be adjusted or used for certain signal formats to be \
input to the projector .
When the items cannot be adjusted or used, the items in...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-80.png "Page 81
Chapter 4 Settings — Menu navigation
ENGLISH - 81
[NETWORK]
Sub-menu itemFactory defaultPage
[DIGITAL LINK MODE] [AUTO]156
[DIGITAL LINK SETUP] ―156
[DIGITAL LINK STATUS] ―157
[NETWORK SETUP] ―157
[NETWORK CONTROL] ―158
[NETWORK STATUS] ―158
[DIGITAL LINK MENU] ―159
[Art-Net SETUP] [OFF]159
[Art-Net CHANNEL SETTING] [2]159
[Art-Net STATUS] ―160
Note
fSome items may not be adjusted or used for certain signal formats to be \
input to the projector .
When the items cannot be adjusted or used, the items in...")
Chapter 4 Settings — Menu navigation ENGLISH - 81 [NETWORK] Sub-menu itemFactory defaultPage [DIGITAL LINK MODE] [AUTO]156 [DIGITAL LINK SETUP] ―156 [DIGITAL LINK STATUS] ―157 [NETWORK SETUP] ―157 [NETWORK CONTROL] ―158 [NETWORK STATUS] ―158 [DIGITAL LINK MENU] ―159 [Art-Net SETUP] [OFF]159 [Art-Net CHANNEL SETTING] [2]159 [Art-Net STATUS] ―160 Note fSome items may not be adjusted or used for certain signal formats to be \ input to the projector . When the items cannot be adjusted or used, the items in...
Page 82
![Page 82
Chapter 4 Settings — [PICTURE] menu
82 - ENGLISH

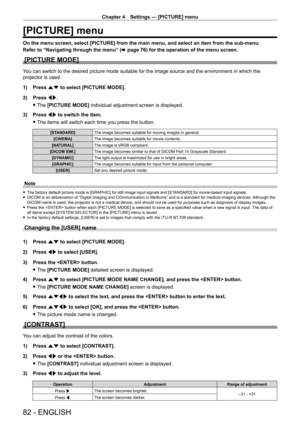

[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the
projector is used.
1)
Press
as to select [PICTURE MODE].
2)
Press
qw.
fThe
[PICTURE MODE] individual adjustment screen is...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-81.png "Page 82
Chapter 4 Settings — [PICTURE] menu
82 - ENGLISH
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
page 76) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the
projector is used.
1)
Press
as to select [PICTURE MODE].
2)
Press
qw.
fThe
[PICTURE MODE] individual adjustment screen is...")
Chapter 4 Settings — [PICTURE] menu 82 - ENGLISH [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source \ and the environment in which the projector is used. 1) Press as to select [PICTURE MODE]. 2) Press qw. fThe [PICTURE MODE] individual adjustment screen is...
Page 83
![Page 83

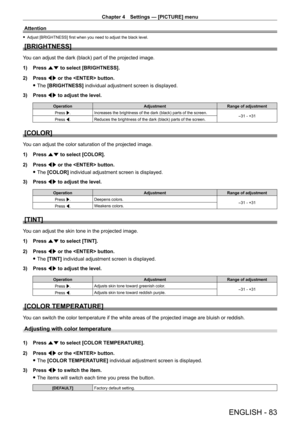

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 83
Attention
fAdjust [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1)
Press
as to select [BRIGHTNESS].
2)
Press
qw or the button.
fThe
[BRIGHTNESS] individual adjustment screen is displayed.
3)
Press
qw to adjust the level.
Operation AdjustmentRange of adjustment
Press w. Increases the brightness of the dark (black) parts of the screen.
-31 - +31
Press q....](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-82.png "Page 83
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 83
Attention
fAdjust [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1)
Press
as to select [BRIGHTNESS].
2)
Press
qw or the button.
fThe
[BRIGHTNESS] individual adjustment screen is displayed.
3)
Press
qw to adjust the level.
Operation AdjustmentRange of adjustment
Press w. Increases the brightness of the dark (black) parts of the screen.
-31 - +31
Press q....")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 83 Attention fAdjust [BRIGHTNESS] first when you need to adjust the black level. [BRIGHTNESS] You can adjust the dark (black) part of the projected image. 1) Press as to select [BRIGHTNESS]. 2) Press qw or the button. fThe [BRIGHTNESS] individual adjustment screen is displayed. 3) Press qw to adjust the level. Operation AdjustmentRange of adjustment Press w. Increases the brightness of the dark (black) parts of the screen. -31 - +31 Press q....
Page 84

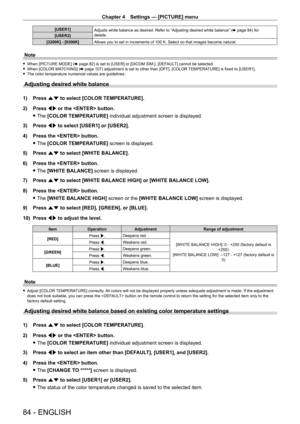

![Page 84
Chapter 4 Settings — [PICTURE] menu
84 - ENGLISH
[USER1]Adjusts white balance as desired. Refer to “Adjusting desired white balance” ( x
page 84) for
details.
[USER2]
[3200K] - [9300K] Allows you to set in increments of 100
K. Select so that images become natural.
Note
fWhen [PICTURE MODE] ( x page 82) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected. fWhen [COLOR MA
TCHING] (x page 107) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1].
fThe...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-83.png "Page 84
Chapter 4 Settings — [PICTURE] menu
84 - ENGLISH
[USER1]Adjusts white balance as desired. Refer to “Adjusting desired white balance” ( x
page 84) for
details.
[USER2]
[3200K] - [9300K] Allows you to set in increments of 100
K. Select so that images become natural.
Note
fWhen [PICTURE MODE] ( x page 82) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected. fWhen [COLOR MA
TCHING] (x page 107) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1].
fThe...")
Chapter 4 Settings — [PICTURE] menu 84 - ENGLISH [USER1]Adjusts white balance as desired. Refer to “Adjusting desired white balance” ( x page 84) for details. [USER2] [3200K] - [9300K] Allows you to set in increments of 100 K. Select so that images become natural. Note fWhen [PICTURE MODE] ( x page 82) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected. fWhen [COLOR MA TCHING] (x page 107) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1]. fThe...
Page 85
![Page 85
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 85
6) Press the button.
fThe confirmation screen is displayed.
7)
Press
qw to select [OK], and press the button.
fThe [USER1] or [USER2] data is overwritten.
fIf you press
qw to select [CANCEL] and then press the button, the data will not be overwritten.
fThe
[WHITE BALANCE HIGH] screen is displayed.
8)
Press
as to select [RED], [GREEN], or [BLUE].
9)
Press
qw to adjust the level.
Note
f Adjust [COLOR TEMPERATURE] correctly. All...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-84.png "Page 85
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 85
6) Press the button.
fThe confirmation screen is displayed.
7)
Press
qw to select [OK], and press the button.
fThe [USER1] or [USER2] data is overwritten.
fIf you press
qw to select [CANCEL] and then press the button, the data will not be overwritten.
fThe
[WHITE BALANCE HIGH] screen is displayed.
8)
Press
as to select [RED], [GREEN], or [BLUE].
9)
Press
qw to adjust the level.
Note
f Adjust [COLOR TEMPERATURE] correctly. All...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 85 6) Press the button. fThe confirmation screen is displayed. 7) Press qw to select [OK], and press the button. fThe [USER1] or [USER2] data is overwritten. fIf you press qw to select [CANCEL] and then press the button, the data will not be overwritten. fThe [WHITE BALANCE HIGH] screen is displayed. 8) Press as to select [RED], [GREEN], or [BLUE]. 9) Press qw to adjust the level. Note f Adjust [COLOR TEMPERATURE] correctly. All...
Page 86
![Page 86
Chapter 4 Settings — [PICTURE] menu
86 - ENGLISH

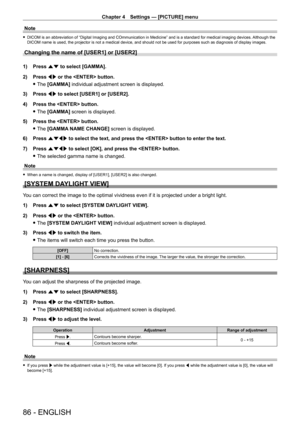

Note
fDICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the
DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.
Changing the name of [USER1] or [USER2]
1) Press as to select [GAMMA].
2)
Press
qw or the button.
fThe
[GAMMA] individual adjustment screen is displayed.
3)
Press
qw to...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-85.png "Page 86
Chapter 4 Settings — [PICTURE] menu
86 - ENGLISH
Note
fDICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the
DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.
Changing the name of [USER1] or [USER2]
1) Press as to select [GAMMA].
2)
Press
qw or the button.
fThe
[GAMMA] individual adjustment screen is displayed.
3)
Press
qw to...")
Chapter 4 Settings — [PICTURE] menu 86 - ENGLISH Note fDICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images. Changing the name of [USER1] or [USER2] 1) Press as to select [GAMMA]. 2) Press qw or the button. fThe [GAMMA] individual adjustment screen is displayed. 3) Press qw to...
Page 87
![Page 87
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 87
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occur\
ring in the image signal.
1)
Press
as to select [NOISE REDUCTION].
2)
Press
qw or the button.
fThe
[NOISE REDUCTION] individual adjustment screen is displayed.
3)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] No correction.
[1] Slightly corrects the noise.
[2] Moderately corrects the noise.
[3] Strongly...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-86.png "Page 87
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 87
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occur\
ring in the image signal.
1)
Press
as to select [NOISE REDUCTION].
2)
Press
qw or the button.
fThe
[NOISE REDUCTION] individual adjustment screen is displayed.
3)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] No correction.
[1] Slightly corrects the noise.
[2] Moderately corrects the noise.
[3] Strongly...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 87 [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occur\ ring in the image signal. 1) Press as to select [NOISE REDUCTION]. 2) Press qw or the button. fThe [NOISE REDUCTION] individual adjustment screen is displayed. 3) Press qw to switch the item. fThe items will switch each time you press the button. [OFF] No correction. [1] Slightly corrects the noise. [2] Moderately corrects the noise. [3] Strongly...
Page 88

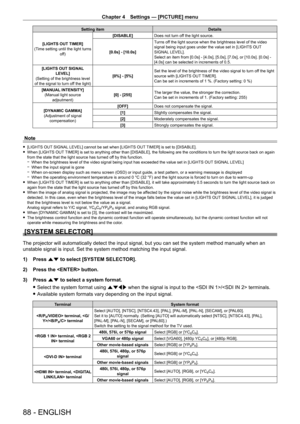

![Page 88
Chapter 4 Settings — [PICTURE] menu
88 - ENGLISH
Setting itemDetails
[LIGHTS OUT TIMER]
(Time setting until the light turns off) [DISABLE]
Does not turn off the light source.
[0.0s] - [10.0s] Turns off the light source when the brightness level of the video
signal being input goes under the value set in [LIGHTS OUT
SIGNAL LEVEL].
Select an item from [0.0s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.0s] -
[4.0s] can be selected in increments of 0.5.
[LIGHTS OUT SIGNAL LEVEL]
(Setting of the brightness...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-87.png "Page 88
Chapter 4 Settings — [PICTURE] menu
88 - ENGLISH
Setting itemDetails
[LIGHTS OUT TIMER]
(Time setting until the light turns off) [DISABLE]
Does not turn off the light source.
[0.0s] - [10.0s] Turns off the light source when the brightness level of the video
signal being input goes under the value set in [LIGHTS OUT
SIGNAL LEVEL].
Select an item from [0.0s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.0s] -
[4.0s] can be selected in increments of 0.5.
[LIGHTS OUT SIGNAL LEVEL]
(Setting of the brightness...")
Chapter 4 Settings — [PICTURE] menu 88 - ENGLISH Setting itemDetails [LIGHTS OUT TIMER] (Time setting until the light turns off) [DISABLE] Does not turn off the light source. [0.0s] - [10.0s] Turns off the light source when the brightness level of the video signal being input goes under the value set in [LIGHTS OUT SIGNAL LEVEL]. Select an item from [0.0s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.0s] - [4.0s] can be selected in increments of 0.5. [LIGHTS OUT SIGNAL LEVEL] (Setting of the brightness...
Page 89
![Page 89
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 89

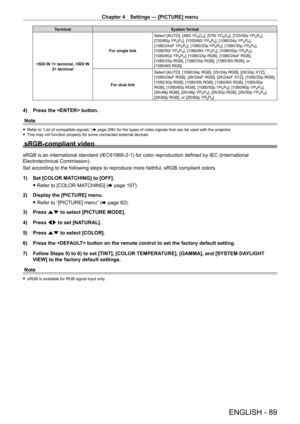

TerminalSystem format
terminal, terminal For single link
Select [AUTO], [480i YC
BCR], [576i YCBCR], [720/50p YPBPR],
[720/60p YP
BPR], [1035/60i YPBPR], [1080/24p YPBPR],
[1080/24sF
YP
BPR], [1080/25p YPBPR], [1080/30p YPBPR],
[1080/50i
YP
BPR], [1080/60i YPBPR], [1080/50p YPBPR],
[1080/60p
YP
BPR], [1080/24p RGB], [1080/24sF RGB],
[1080/25p
RGB], [1080/30p RGB], [1080/50i RGB], or
[1080/60i
RGB].
For dual link Select [AUTO],...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-88.png "Page 89
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 89
TerminalSystem format
terminal, terminal For single link
Select [AUTO], [480i YC
BCR], [576i YCBCR], [720/50p YPBPR],
[720/60p YP
BPR], [1035/60i YPBPR], [1080/24p YPBPR],
[1080/24sF
YP
BPR], [1080/25p YPBPR], [1080/30p YPBPR],
[1080/50i
YP
BPR], [1080/60i YPBPR], [1080/50p YPBPR],
[1080/60p
YP
BPR], [1080/24p RGB], [1080/24sF RGB],
[1080/25p
RGB], [1080/30p RGB], [1080/50i RGB], or
[1080/60i
RGB].
For dual link Select [AUTO],...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 89 TerminalSystem format terminal, terminal For single link Select [AUTO], [480i YC BCR], [576i YCBCR], [720/50p YPBPR], [720/60p YP BPR], [1035/60i YPBPR], [1080/24p YPBPR], [1080/24sF YP BPR], [1080/25p YPBPR], [1080/30p YPBPR], [1080/50i YP BPR], [1080/60i YPBPR], [1080/50p YPBPR], [1080/60p YP BPR], [1080/24p RGB], [1080/24sF RGB], [1080/25p RGB], [1080/30p RGB], [1080/50i RGB], or [1080/60i RGB]. For dual link Select [AUTO],...
Page 90
![Page 90

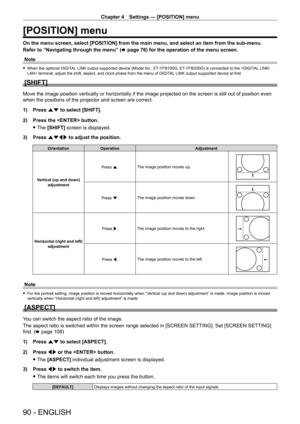

Chapter 4 Settings — [POSITION] menu
