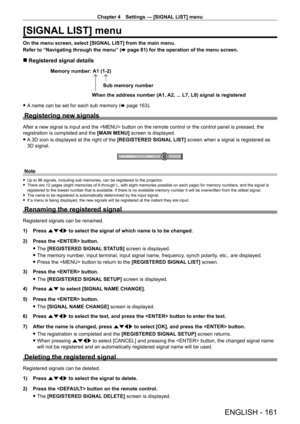

Panasonic Projector PT-RS30K User Manual

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 161
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
 rRegistered signal details
A1 (1-2)
When the address number (A1, A2, ... L7, L8) signal is registered Sub memory number
Memory number:
 f
A name can be set for each sub memory (x   page   163).
Registering new signals
After a new signal is input and the  button on the remote...

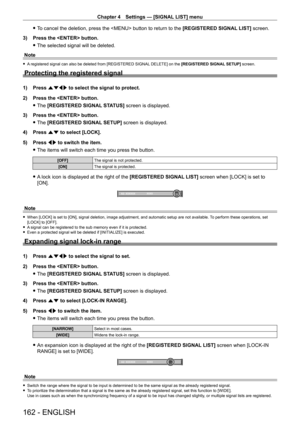

Chapter 4 Settings — [SIGNAL LIST] menu
162 - ENGLISH
 fTo cancel the deletion, press the  button to return to the  [REGISTERED SIGNAL LIST] screen.
3)

Press the  button.
 f The selected signal will be deleted.
Note
 f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press  asqw to select the signal to protect.
2)
Press the  button.
 fThe

[REGISTERED SIGNAL STATUS] screen is displayed.
3)

Press the...

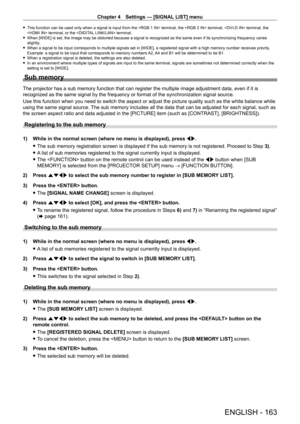

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 163
 fThis function can be used only when a signal is input from the  terminal, the  terminal,  terminal, the
 terminal, or the  terminal.
 fWhen [WIDE] is set, the image may be distorted because a signal is recognized as the same even if its synchronizing frequency varies
slightly

.
 fWhen a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority .
Example: a signal to be input...

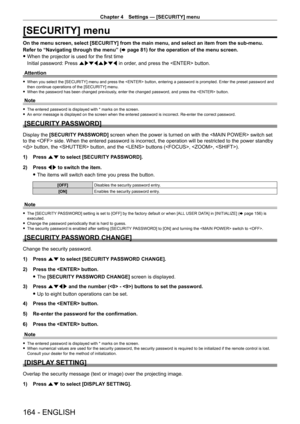

Chapter 4 Settings — [SECURITY] menu
164 - ENGLISH
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an \
item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
 fWhen the projector is used for the first time
Initial password: Press  awsqawsq in order

, and press the  button.
Attention
 f When you select the [SECURITY] menu and press the  button, entering a password is prompted. Enter the preset password and...

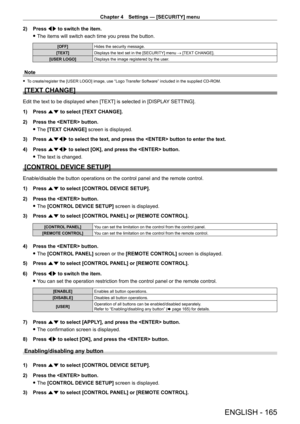

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 165
2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Hides the security message.
[TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE].
[USER LOGO] Displays the image registered by the user.
Note
 fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLA Y SETTING].
1)
Press...

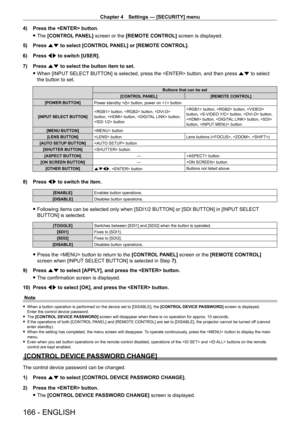

Chapter 4 Settings — [SECURITY] menu
166 - ENGLISH
4) Press the  button.
 fThe

[CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5)

Press
 as to select [CONTROL PANEL] or [REMOTE CONTROL].
6)

Press
 qw to switch [USER].
7)

Press
 as to select the button item to set.
 fWhen [INPUT

 SELECT BUTTON] is selected, press the  button, and then press as to select
the button to set.
Buttons that can be set
[CONTROL PANEL] [REMOTE CONTROL]
[POWER BUTTON] Power standby  button, power...

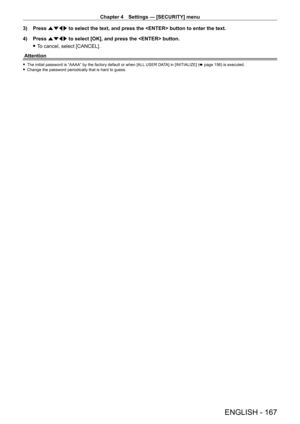

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 167
3) Press asqw to select the text, and press the  button to enter the text.
4)
Press
 asqw to select [OK], and press the  button.
 fT

o cancel, select [CANCEL].
Attention
 f The initial password is “AAAA” by the factory default or when [ALL  USER DA TA] in [INITIALIZE] (x   page   156) is executed. fChange the password periodically that is hard to guess.

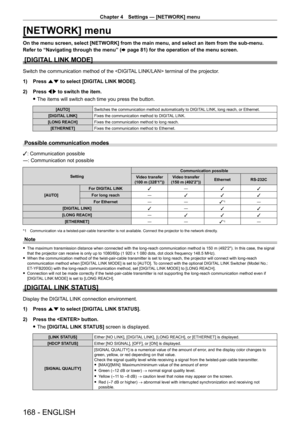

Chapter 4 Settings — [NETWORK] menu
168 - ENGLISH
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an i\
tem from the sub-menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the  terminal of the projector.
1)

Press
 as to select [DIGITAL LINK MODE].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO] Switches the...

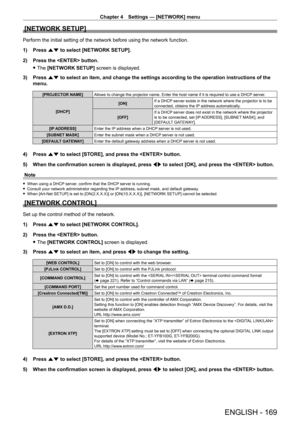

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 169
[NETWORK SETUP]
Perform the initial setting of the network before using the network func\
tion.
1)
Press
 as to select [NETWORK SETUP].
2)

Press the  button.
 fThe

[NETWORK SETUP] screen is displayed.
3)

Press
 as to select an item, and change the settings according to the operation i\
nstructions of the
menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP  server.
[DHCP] [ON]
If a DHCP...

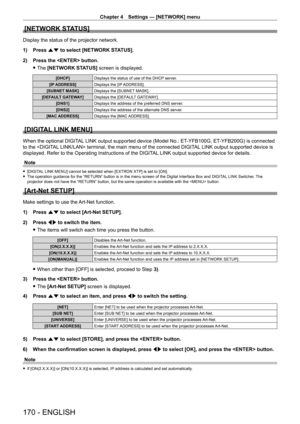

Chapter 4 Settings — [NETWORK] menu
170 - ENGLISH
[NETWORK STATUS]
Display the status of the projector network.
1)
Press
 as to select [NETWORK STATUS].
2)

Press the  button.
 fThe

[NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server.
[IP ADDRESS] Displays the [IP ADDRESS].
[SUBNET MASK] Displays the [SUBNET MASK].
[DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY].
[DNS1] Displays the address of the preferred DNS server.
[DNS2] Displays the address of the...
