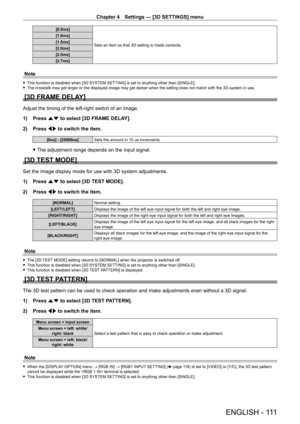

Chapter 4 Settings — [3D SETTINGS] menu ENGLISH - 111 [0.5ms]Sets an item so that 3D setting is made correctly. [1.0ms] [1.5ms] [2.0ms] [2.5ms] [2.7ms] Note f This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE]. fThe crosstalk may get larger or the displayed image may get darker when \ the setting does not match with the 3D system in use. [3D FRAME DELAY] Adjust the timing of the left-right switch of an image. 1) Press as to select [3D FRAME DELAY]. 2) Press...
Page 112

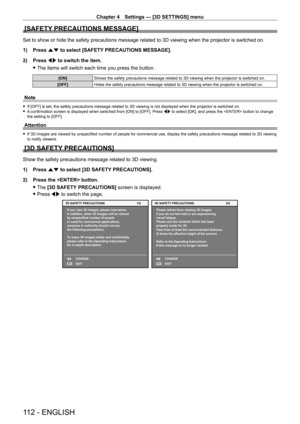

Chapter 4 Settings — [3D SETTINGS] menu 112 - ENGLISH [SAFETY PRECAUTIONS MESSAGE] Set to show or hide the safety precautions message related to 3D viewing\ when the projector is switched on. 1) Press as to select [SAFETY PRECAUTIONS MESSAGE]. 2) Press qw to switch the item. fThe items will switch each time you press the button. [ON] Shows the safety precautions message related to 3D viewing when the proj\ ector is switched on. [OFF] Hides the safety precautions message related to 3D viewing...
Page 113

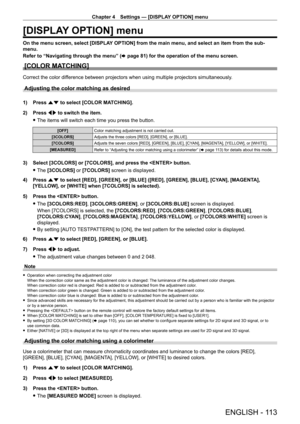

Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 113 [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 81) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously\ . Adjusting the color matching as desired 1) Press as to select [COLOR MATCHING]. 2) Press qw to switch the item....
Page 114

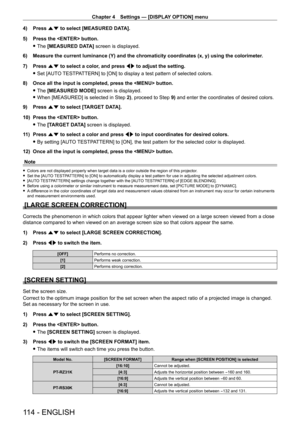

Chapter 4 Settings — [DISPLAY OPTION] menu 114 - ENGLISH 4) Press as to select [MEASURED DATA]. 5) Press the button. fThe [MEASURED DATA] screen is displayed. 6) Measure the current luminance (Y) and the chromaticity coordinates (x\ , y) using the colorimeter . 7) Press as to select a color, and press qw to adjust the setting. fSet [AUT O TESTPATTERN] to [ON] to display a test pattern of selected colors. 8) Once all the input is completed, press the button. fThe [MEASURED MODE]...
Page 115

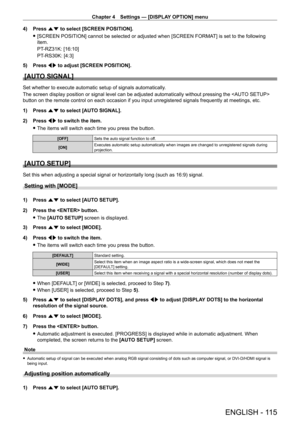

Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 115 4) Press as to select [SCREEN POSITION]. f[SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMA T] is set to the following item. PT - RZ31K: [16:10] PT - RS30K: [4:3] 5) Press qw to adjust [SCREEN POSITION]. [AUTO SIGNAL] Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the button on the remote control on each occasion...
Page 116

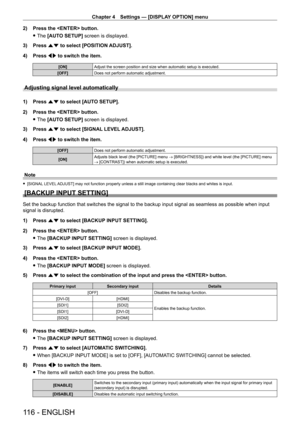

Chapter 4 Settings — [DISPLAY OPTION] menu 116 - ENGLISH 2) Press the button. fThe [AUTO SETUP] screen is displayed. 3) Press as to select [POSITION ADJUST]. 4) Press qw to switch the item. [ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment. Adjusting signal level automatically 1) Press as to select [AUTO SETUP]. 2) Press the button. fThe [AUTO SETUP] screen is displayed. 3) Press as to select [SIGNAL LEVEL...
Page 117

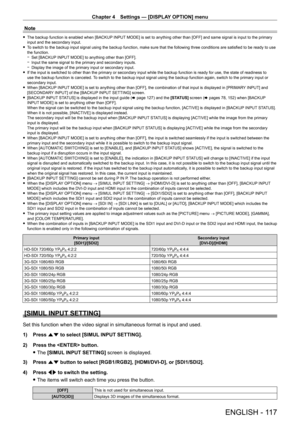

Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 117 Note fThe backup function is enabled when [BACKUP INPUT MODE] is set to anything other than [OFF] and same signal is input to the primary input and the secondary input. f T o switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use the function. g Set [BACKUP INPUT MODE] to anything other than [OFF]. gInput the same signal to the primary and secondary...
Page 118

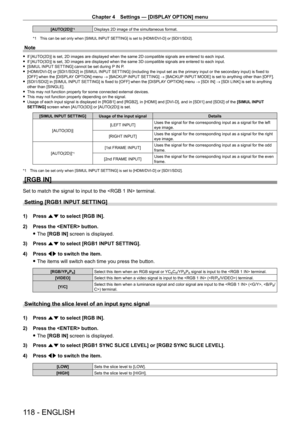

Chapter 4 Settings — [DISPLAY OPTION] menu 118 - ENGLISH [AUTO(2D)]*1Displays 2D image of the simultaneous format. *1 This can be set only when [SIMUL INPUT SETTING] is set to [HDMI/DVI-D] or [SDI1/SDI2]. Note fIf [AUTO(2D)] is set, 2D images are displayed when the same 2D compatible signals are entered to each input. fIf [AUT O(3D)] is set, 3D images are displayed when the same 3D compatible signals are entered to each input. f[SIMUL INPUT SETTING] cannot be set during P IN P. f[HDMI/DVI-D] or...
Page 119

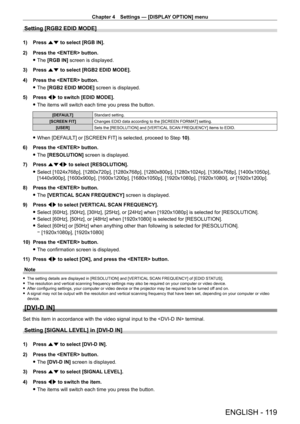

Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 119 Setting [RGB2 EDID MODE] 1) Press as to select [RGB IN]. 2) Press the button. fThe [RGB IN] screen is displayed. 3) Press as to select [RGB2 EDID MODE]. 4) Press the button. fThe [RGB2 EDID MODE] screen is displayed. 5) Press qw to switch [EDID MODE]. fThe items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the...
Page 120

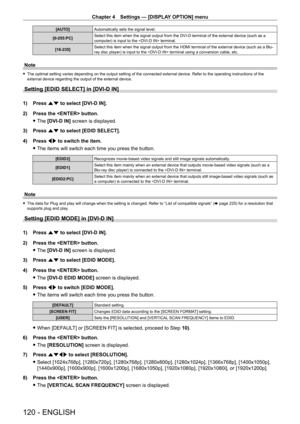

Chapter 4 Settings — [DISPLAY OPTION] menu 120 - ENGLISH [AUTO]Automatically sets the signal level. [0-255:PC] Select this item when the signal output from the DVI - D terminal of the external device (such as a computer) is input to the terminal. [16-235] Select this item when the signal output from the HDMI terminal of the external device (such as a Blu- ray disc player) is input to the terminal using a conversion cable, etc. Note f The optimal setting varies depending on the output setting of the...
