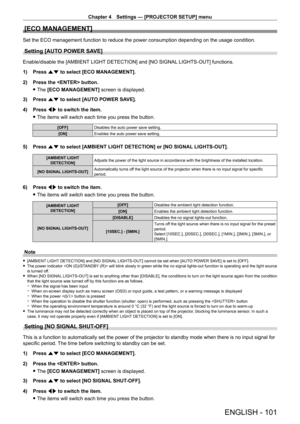

Page 101

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 101
[ECO MANAGEMENT]
Set the ECO management function to reduce the power consumption depending on the usage condition.
Setting [AUTO POWER SAVE]
Enable/disable the [AMBIENT LIGHT DETECTION] and [NO SIGNAL LIGHTS-OUT] functions.
1)
Press
 as to select [ECO MANAGEMENT].
2)

Press the  button.
 fThe

[ECO MANAGEMENT] screen is displayed.
3)

Press
 as to select [AUTO POWER SAVE].
4)

Press
 qw to switch the item.
 fThe items will switch each...

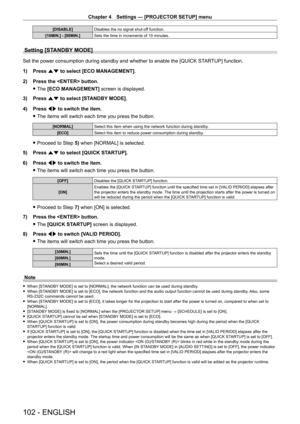

Page 102

Chapter 4 Settings — [PROJECTOR SETUP] menu
102 - ENGLISH
[DISABLE]Disables the no signal shut-off function.
[10MIN.] - [90MIN.] Sets the time in increments of 10 minutes.
Setting [STANDBY MODE]
Set the power consumption during standby and whether to enable the [QUICK ST ARTUP] function.
1)
Press
 as to select [ECO MANAGEMENT].
2)

Press the  button.
 fThe

[ECO MANAGEMENT] screen is displayed.
3)

Press
 as to select [STANDBY MODE].
4)

Press
 qw to switch the item.
 fThe items will switch each...

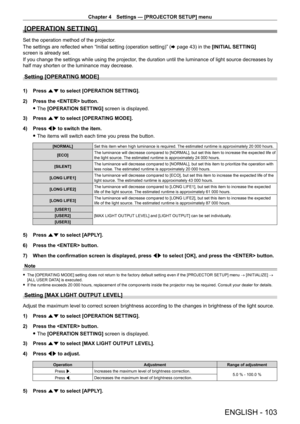

Page 103

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 103
[OPERATION SETTING]
Set the operation method of the projector.
The settings are reflected when “Initial setting (operation setting)” (x
  page   43) in the [INITIAL SETTING]
screen is already set.
If you change the settings while using the projector, the duration until the luminance of light source decreases by
half may shorten or the luminance may decrease.
Setting [OPERATING MODE]
1) Press  as to select [OPERATION SETTING].
2)
Press the...

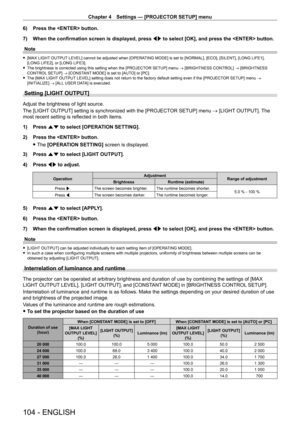

Page 104

Chapter 4 Settings — [PROJECTOR SETUP] menu
104 - ENGLISH
6) Press the  button.
7)
When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
Note
 f [MAX LIGHT  OUTPUT LEVEL] cannot be adjusted when [OPERATING MODE] is set to [NORMAL], [ECO], [SILENT], [LONG LIFE1],
[LONG LIFE2], or [LONG LIFE3].
 f The brightness is corrected using this setting when the [PROJECT OR SETUP] menu

→ [BRIGHTNESS CONTROL] → [BRIGHTNESS
CONTROL SETUP] → [CONSTANT MODE] is set to [AUTO]...

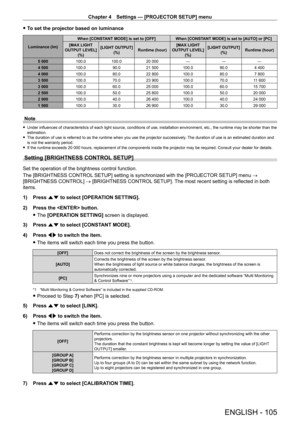

Page 105

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 105
 fTo set the projector based on luminance
Luminance (lm) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC]
[MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour) [MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour)
5
  000 100.0 100.020
  000― ――
4
  500 100.0 90.021
  500100.0 90.04
  400
4
  000 100.0 80.022
  800100.0 80.07
  800
3
  500 100.0 70.023
  900100.0 70.011
  600
3
  000 100.0...

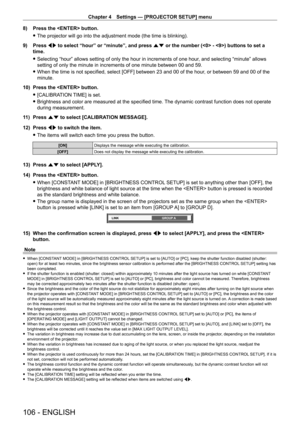

Page 106

Chapter 4 Settings — [PROJECTOR SETUP] menu
106 - ENGLISH
8) Press the  button.
 fThe projector will go into the adjustment mode (the time is blinking).
9)


Press
 qw to select “hour” or “minute”, and press as or the number ( - ) buttons to set a
time.
 f Selecting “hour” allows setting of only the hour in increments of one hour , and selecting “minute” allows
setting of only the minute in increments of one minute between 00 and 59\
.
 f When the time is not specified, select [OFF] between 23 and 00...

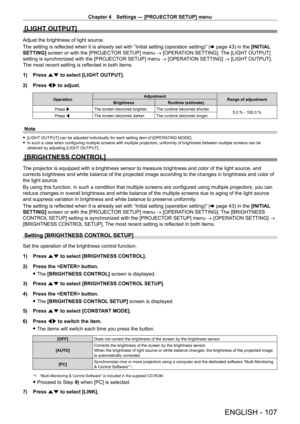

Page 107

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 107
[LIGHT OUTPUT]
Adjust the brightness of light source.
The setting is reflected when it is already set with “Initial setting (operation setting)” (x
  page   43) in the [INITIAL
SETTING]  screen or with the [PROJECTOR SETUP] menu → [OPERATION SETTING]. The [LIGHT OUTPUT]
setting is synchronized with the [PROJECTOR SETUP] menu → [OPERATION SETTING]  → [LIGHT OUTPUT].
The most recent setting is reflected in both items.
1)

Press
 as to select...

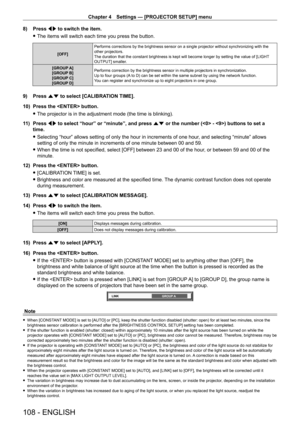

Page 108

Chapter 4 Settings — [PROJECTOR SETUP] menu
108 - ENGLISH
8) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Performs corrections by the brightness sensor on a single projector with\
out synchronizing with the
other projectors.
The duration that the constant brightness is kept will become longer by setting the value of [LIGHT

OUTPUT] smaller.
[GROUP A]
[GROUP B]
[GROUP C]
[GROUP D] Performs correction by the brightness sensor in multiple projectors in s\...

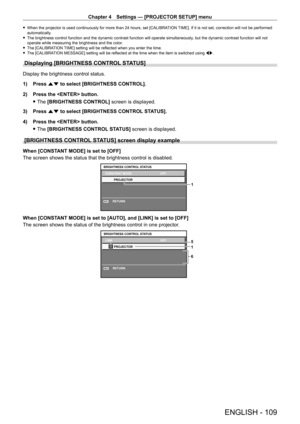

Page 109

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 109
 fWhen the projector is used continuously for more than 24 hours, set [CALIBRA TION  TIME]. If it is not set, correction will not be performed
automatically.
 f The brightness control function and the dynamic contrast function will o\
perate simultaneously

, but the dynamic contrast function will not
operate while measuring the brightness and the color.
 f The [CALIBRA

TION TIME] setting will be reflected when you enter the time.
 fThe...

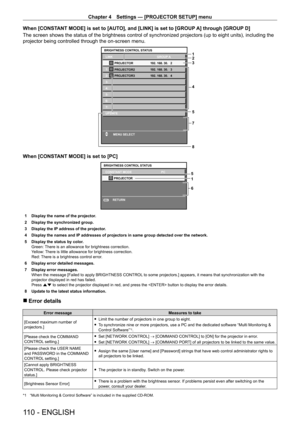

Page 110

Chapter 4 Settings — [PROJECTOR SETUP] menu
110 - ENGLISH
When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [GROUP A] through [GROUP D]
The screen shows the status of the brightness control of synchronized projectors (up to eight units), including the
projector being controlled through the on-screen menu.
2 1
3
4
5
7
8
1:
2:
3:
4:
5:
6:
7:192. 168. 30.   2
192. 168. 30.   3
192. 168. 30.   4
LINK
UPDATE PROJECTOR
GROUP A
PROJECTOR2
PROJECTOR3
BRIGHTNESS CONTROL STATUS
MENU SELECT
When...
