Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 81
 f[FRAME RESPONSE] cannot be set while in the P  IN P mode.

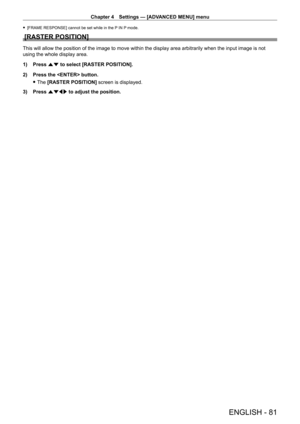

[RASTER POSITION]
This will allow the position of the image to move within the display are\
a arbitrarily when the input image is not
using the whole display area.
1)

Press
 as to select [RASTER POSITION].
2)

Press the  button.
 fThe

[RASTER POSITION]  screen is displayed.
3)

Press
 asqw to adjust the position.

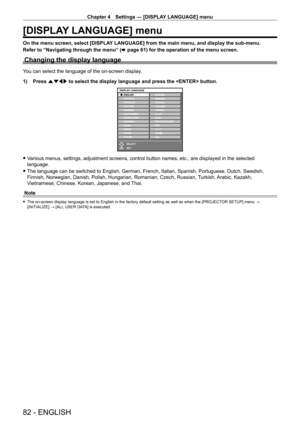

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
82 - ENGLISH
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1)

Press
 asqw to select the display language and press the  button.
DISPLAY LANGUAGE
SELECT
SET
ENTER
 fVarious menus, settings, adjustment screens,...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 83
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.

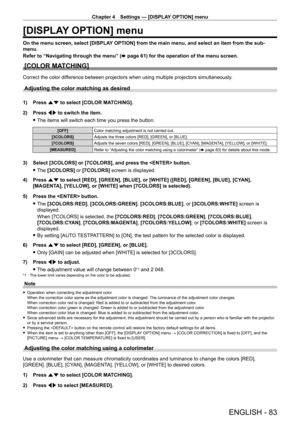

[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously\
.
Adjusting the color matching as desired
1) Press as to select [COLOR MATCHING].
2)
Press
 qw to switch the item.
 fThe...

Chapter 4 Settings — [DISPLAY OPTION] menu
84 - ENGLISH
3) Press the  button.
 fThe

[MEASURED MODE] screen is displayed.
4)

Press
 as to select [MEASURED DATA].
5)

Press the  button.
 fThe

[MEASURED DATA] screen is displayed.
6)

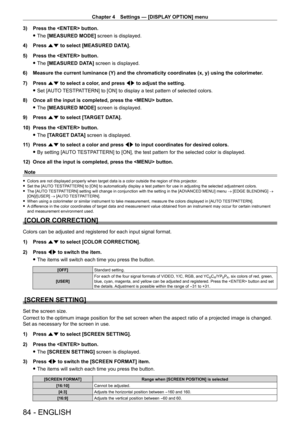

Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter .
7)


Press
 as to select a color, and press qw to adjust the setting.
 fSet [AUT

O TESTPATTERN] to [ON] to display a test pattern of selected colors.
8)

Once all the...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 85

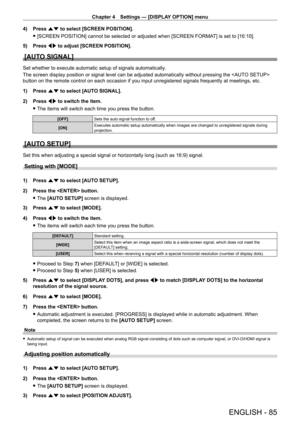

4) Press as to select [SCREEN POSITION].
 f[SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMA T] is set to [16:10].
5)


Press
 qw to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of signals automatically.
The screen display position or signal level can be adjusted automatically without pressing the
button on the remote control on each occasion if you input unregistered signals frequently at...

Chapter 4 Settings — [DISPLAY OPTION] menu
86 - ENGLISH

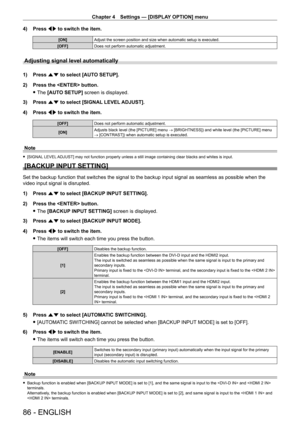

4) Press qw to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed.
[OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press as to select [AUTO SETUP].
2)
Press the  button.
 fThe

[AUTO SETUP] screen is displayed.
3)

Press
 as to select [SIGNAL LEVEL ADJUST].
4)

Press
 qw to switch the item.
[OFF] Does not perform automatic adjustment.
[ON] Adjusts black level (the...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 87

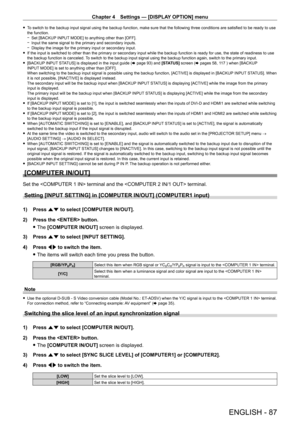

 fTo switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use
the function.
 g Set [BACKUP

 INPUT MODE] to anything other than [OFF].
 gInput the same signal to the primary and secondary inputs. gDisplay the image for the primary input or secondary input. fIf the input is switched to other than the primary or secondary input while the backup function is ready for...

Chapter 4 Settings — [DISPLAY OPTION] menu
88 - ENGLISH
Note

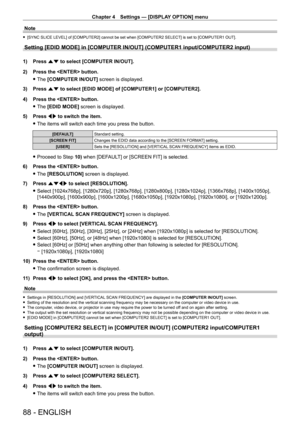

 f[SYNC SLICE LEVEL] of [COMPUTER2] cannot be set when [COMPUTER2 SELECT] is set to [COMPUTER1 OUT].
Setting [EDID MODE] in [COMPUTER IN/OUT] (COMPUTER1 input/COMPUTER2 inp\
ut)
1) Press  as to select [COMPUTER IN/OUT].
2)
Press the  button.
 fThe

[COMPUTER IN/OUT] screen is displayed.
3)

Press
 as to select [EDID MODE] of [COMPUTER1] or [COMPUTER2].
4)

Press the  button.
 fThe

[EDID MODE] screen is displayed.
5)

Press
 qw to...

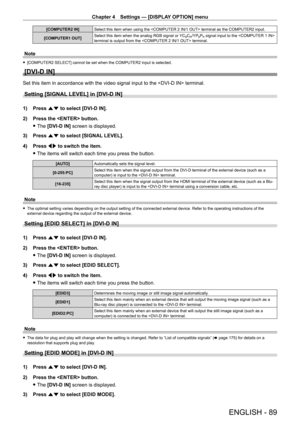

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 89
[COMPUTER2 IN]Select this item when using the  terminal as the COMPUTER2 input.
[COMPUTER1 OUT] Select this item when the analog RGB signal or YC
BCR/YPBPR signal input to the
terminal is output from the  terminal.
Note
 f [COMPUTER2 SELECT] cannot be set when the COMPUTER2 input is selected.
[DVI-D IN]
Set this item in accordance with the video signal input to the  terminal.
Setting [SIGNAL LEVEL] in [DVI-D IN]
1) Press  as to select [DVI-D IN]....

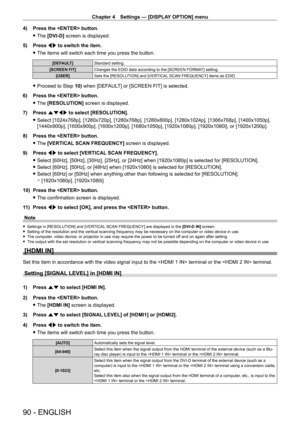

Chapter 4 Settings — [DISPLAY OPTION] menu
90 - ENGLISH
4) Press the  button.
 fThe

[DVI-D] screen is displayed.
5)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
 fProceed to Step  10) when [DEFAULT] or [SCREEN FIT] is selected.
6)

Press the  button.
 f The

[RESOLUTION] screen is...
