Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 91
Note
 fThe optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the
external device regarding the output of the external device.
 fThe HDMI signal level is displayed for 30

  bits of input.

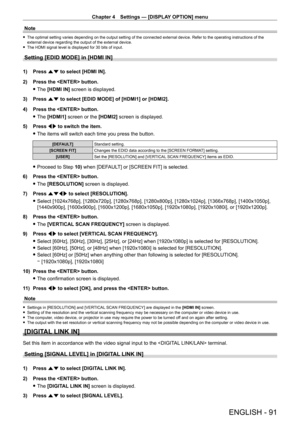

Setting [EDID MODE] in [HDMI IN]
1) Press as to select [HDMI IN].
2)
Press the  button.
 fThe

[HDMI IN] screen is displayed.
3)

Press
 as to select [EDID MODE] of [HDMI1] or...

Chapter 4 Settings — [DISPLAY OPTION] menu
92 - ENGLISH

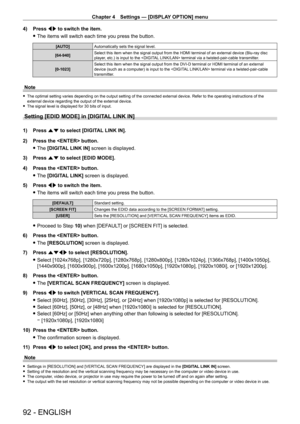

4) Press qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO] Automatically sets the signal level.
[64-940] Select this item when the signal output from the HDMI terminal of an external device (Blu-ray disc
player, etc.) is input to the  terminal via a twisted-pair-cable transmitter.
[0-1023] Select this item when the signal output from the DVI
- D terminal or HDMI terminal of an external
device (such as a...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 93

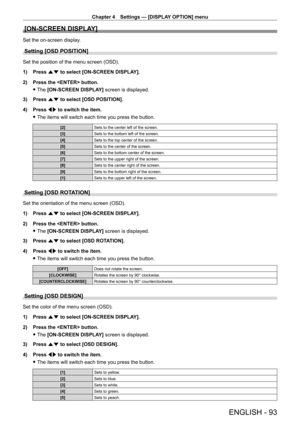

[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD POSITION]
Set the position of the menu screen (OSD).
1)
Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [OSD POSITION].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[2] Sets to the center left of the screen.
[3] Sets to the bottom left of the screen....

Chapter 4 Settings — [DISPLAY OPTION] menu
94 - ENGLISH

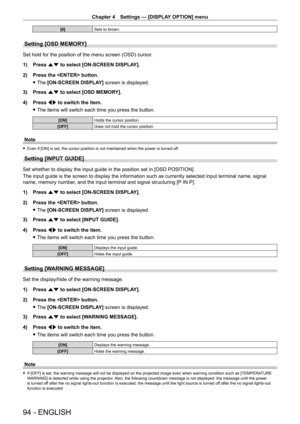

[6]Sets to brown.
Setting [OSD MEMORY]
Set hold for the position of the menu screen (OSD) cursor.
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [OSD MEMORY].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Holds the cursor position.
[OFF] Does not hold the cursor position.
Note
 fEven if [ON] is set,...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 95

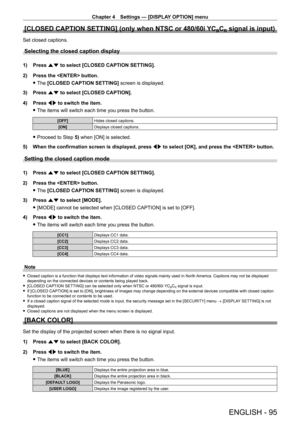

[CLOSED CAPTION SETTING] (only when NTSC or 480/60i YCBCR signal is input)
Set closed captions.
Selecting the closed caption display
1) Press as to select [CLOSED CAPTION SETTING].
2)
Press the  button.
 fThe

[CLOSED CAPTION SETTING]  screen is displayed.
3)

Press
 as to select [CLOSED CAPTION].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Hides closed captions.
[ON] Displays closed...

Chapter 4 Settings — [DISPLAY OPTION] menu
96 - ENGLISH
Note
 fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.

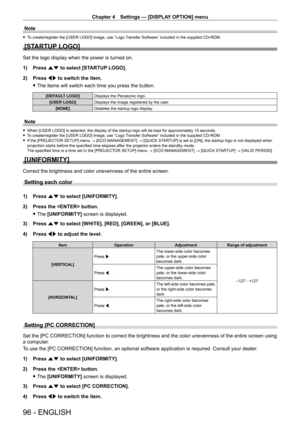

[STARTUP LOGO]
Set the logo display when the power is turned on.
1)

Press
 as to select [STARTUP LOGO].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT LOGO] Displays the Panasonic logo.
[USER LOGO] Displays the image registered by the user.
[NONE] Disables the startup logo display....

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 97

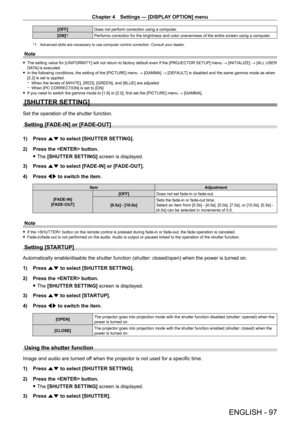

[OFF]Does not perform correction using a computer.
[ON]
*1Performs correction for the brightness and color unevenness of the entir\
e screen using a computer.
*1 Advanced skills are necessary to use computer control correction. Consul\
t your dealer .
Note
 fThe setting value for [UNIFORMITY] will not return to factory default even if the [PROJECT OR SETUP] menu  → [INITIALIZE] → [ALL USER
DATA] is executed.
 f In the following conditions, the...

Chapter 4 Settings — [DISPLAY OPTION] menu
98 - ENGLISH
4) Press the  button.
 fPress the  button to cancel the function.
Note
 f The power indicator  will blink slowly in green while the shutter function is in use (shutter: closed). fT
o output audio while the shutter function is in use (shutter: closed), set the [PROJECT OR SETUP] menu → [AUDIO SETTING] → [IN
SHUTTER] to [ON].

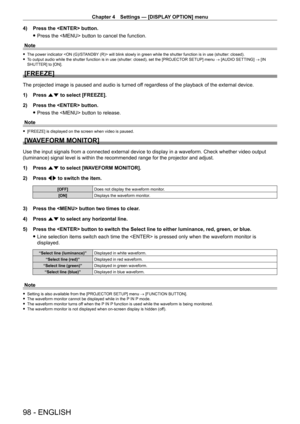

[FREEZE]
The projected image is paused and audio is turned off regardless of the playback of the external device.
1)

Press...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 99

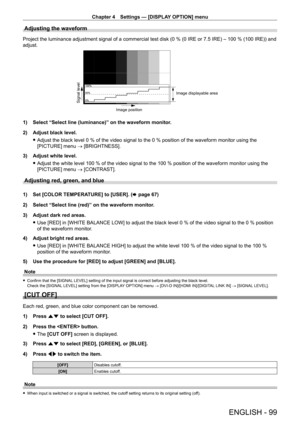

Adjusting the waveform
Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and
adjust.
Signal level
Image displayable area
Image position
1) Select “Select line (luminance)” on the waveform monitor .
2)
Adjust black level.
 fAdjust the black level 0

  % of the video signal to the 0   % position of the waveform monitor using the
[PICTURE] menu → [BRIGHTNESS].
3)

Adjust white level....

Chapter 4 Settings — [PROJECTOR SETUP] menu
100 - ENGLISH

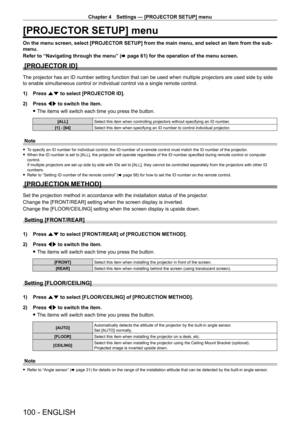

[PROJECTOR SETUP] menu
