Panasonic Uf 5500 Operating Instructions Manual

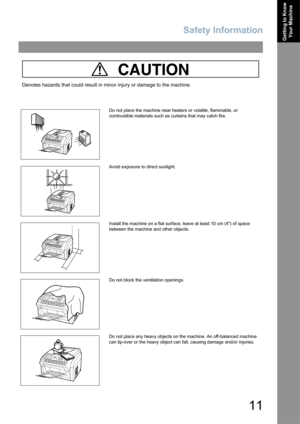

Safety Information
11
Getting to Know
Your Machine
CAUTION
Denotes hazards that could result in minor injury or damage to the machine.
Do not place the machine near heaters or volatile, flammable, or
combustible materials such as curtains that may catch fire.
Avoid exposure to direct sunlight.
Install the machine on a flat surface, leave at least 10 cm (4) of space
between the machine and other objects.
Do not block the ventilation openings.
Do not place any heavy objects on the machine. An...

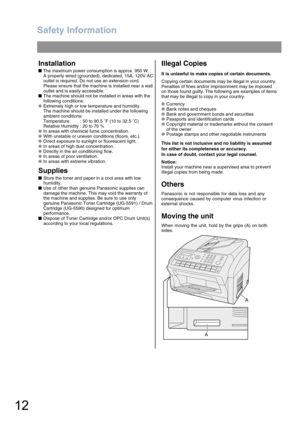

Safety Information
12
Installation
■ The maximum power consumption is approx. 950 W.
A properly wired (grounded), dedicated, 15A, 120V AC
outlet is required. Do not use an extension cord.
Please ensure that the machine is installed near a wall
outlet and is easily accessible.
■ The machine should not be installed in areas with the
following conditions:
● Extremely high or low temperature and humidity.
The machine should be installed under the following
ambient conditions:
Temperature  : 50 to 90.5...

13
Getting to Know
Your Machine

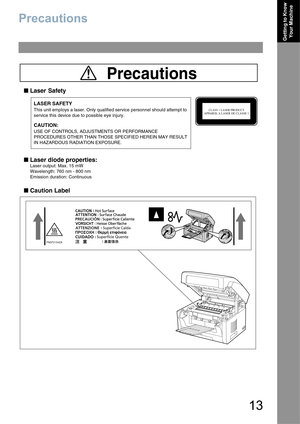

Precautions
Precautions
■ Laser Safety
■ Laser diode properties:
Laser output: Max. 15 mW
Wavelength: 760 nm - 800 nm
Emission duration: Continuous
■ Caution Label
LASER SAFETY
This unit employs a laser. Only qualified service personnel should attempt to
service this device due to possible eye injury.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
PNQT2154ZA
CLASS 1 LASER...

14

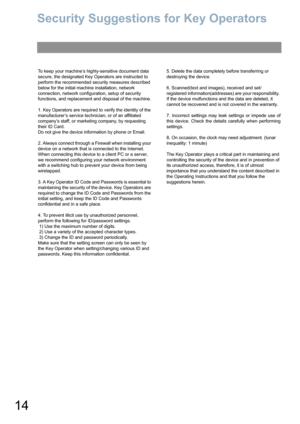

Security Suggestions for Key Operators
To keep your machine’s highly-sensitive document data
secure, the designated Key Operators are instructed to
perform the recommended security measures described
below for the initial machine installation, network
connection, network configuration, setup of security
functions, and replacement and disposal of the machine.
1. Key Operators are required to verify the identity of the
manufacturer’s service technician, or of an affiliated
company’s staff, or...

15
Getting to Know
Your Machine

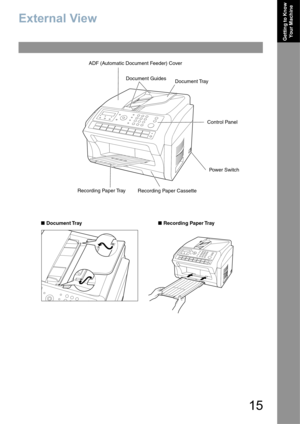

External View
ADF (Automatic Document Feeder) Cover
Document Guides
Control Panel
Recording Paper Tray
Document TrayRecording Paper Cassette
Power Switch
Document Tray
Recording Paper Tray

16

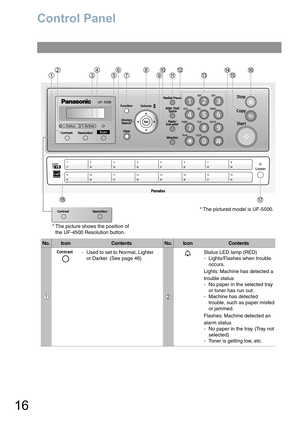

Control Panel
No.IconContentsNo.IconContents
Status LED lamp (RED)
- Lights/Flashes when trouble
occurs.
Lights: Machine has detected a
trouble status
- No paper in the selected tray
or toner has run out.
- Machine has detected
trouble, such as paper misfed
or jammed.
Flashes: Machine detected an
alarm status
- No paper in the tray. (Tray not
selected)
- Toner is getting low, etc. - Used to set to Normal, Lighter
or Darker. (See page 46)
* The pictured model is UF-5500.
* The picture shows the...

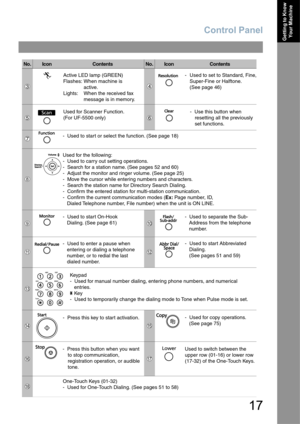

Control Panel
17
Getting to Know
Your Machine
18
1617
14
No.IconContentsNo.IconContents
8
910
1112
-  Used to start or select the function. (See page 18)
Used for the following:
-  Used to carry out setting operations.
-  Search for a station name. (See pages 52 and 60)
-  Adjust the monitor and ringer volume. (See page 25)
-  Move the cursor while entering numbers and characters.
-  Search the station name for Directory Search Dialing.
-  Confirm the entered station for multi-station communication.
-...

18

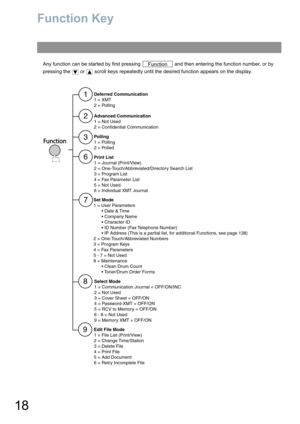

Function Key
Any function can be started by first pressing   and then entering the function number, or by
pressing the   or   scroll keys repeatedly until the desired function appears on the display.Function
1
3
6
7
8
Deferred Communication
1 = XMT
2 = Polling
Polling
1 = Polling
2 = Polled
Print List
1 = Journal (Print/View)
2 = One-Touch/Abbreviated/Directory Search List
3 = Program List
4 = Fax Parameter List
5 = Not Used
6 = Individual XMT Journal
Set Mode
1 = User Parameters
• Date & Time




2...

19
Getting to Know
Your Machine

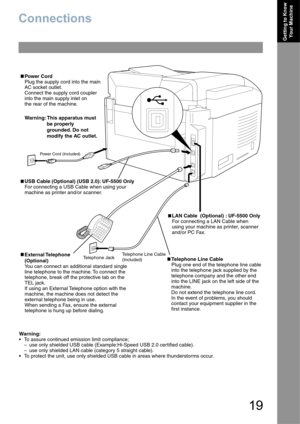

Connections
Power Cord (Included)
Telephone Line Cable
(Included) Telephone Jack
Power Cord
Plug the supply cord into the main
AC socket outlet.
Connect the supply cord coupler
into the main supply inlet on
the rear of the machine.
USB Cable (Optional) (USB 2.0): UF-5500 Only
For connecting a USB Cable when using your
machine as printer and/or scanner.
Warning: This apparatus must
be properly
grounded. Do not
modify the AC outlet.
LAN Cable  (Optional) : UF-5500...

20

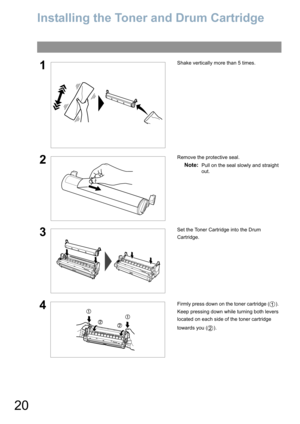

Installing Your Machine
Installing the Toner and Drum Cartridge
1Shake vertically more than 5 times.
2Remove the protective seal.
Note:Pull on the seal slowly and straight
out.
3Set the Toner Cartridge into the Drum
Cartridge.
4Firmly press down on the toner cartridge ( ).
Keep pressing down while turning both levers
located on each side of the toner cartridge
towards you ( ).
