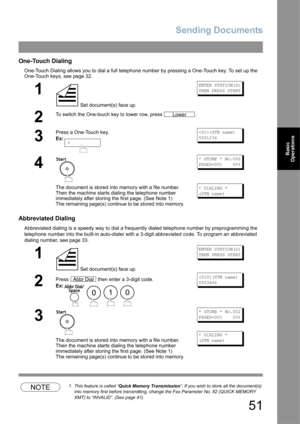

Sending Documents
51
Basic
Operations
One-Touch Dialing
One-Touch Dialing allows you to dial a full telephone number by pressing a One-Touch key. To set up the
One-Touch keys, see page 32.
Abbreviated Dialing
Abbreviated dialing is a speedy way to dial a frequently dialed telephone number by preprogramming the
telephone number into the built-in auto-dialer with a 3-digit abbreviated code. To program an abbreviated
dialing number, see page 33.
NOTE1. This feature is called “Quick Memory Transmission”....

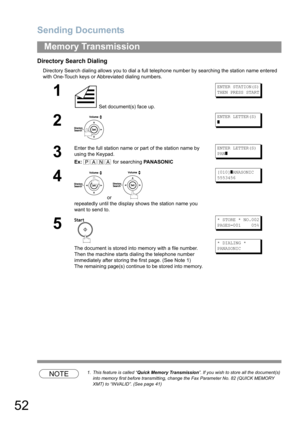

Sending Documents
52
Memory Transmission
Directory Search Dialing
Directory Search dialing allows you to dial a full telephone number by searching the station name entered
with One-Touch keys or Abbreviated dialing numbers.
NOTE1. This feature is called “Quick Memory Transmission”. If you wish to store all the document(s)
into memory first before transmitting, change the Fax Parameter No. 82 (QUICK MEMORY
XMT) to “INVALID”. (See page 41)
1
 Set document(s) face up.
ENTER STATION(S)
THEN PRESS START
2...

Sending Documents
53
Basic
Operations

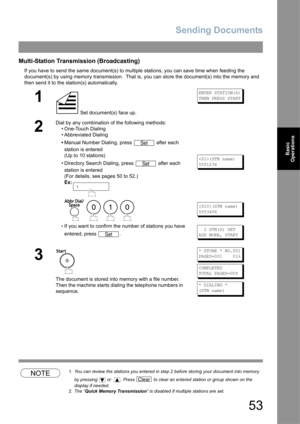

Multi-Station Transmission (Broadcasting)
If you have to send the same document(s) to multiple stations, you can save time when feeding the
document(s) by using memory transmission.  That is, you can store the document(s) into the memory and
then send it to the station(s) automatically.
NOTE1. You can review the stations you entered in step 2 before storing your document into memory
by pressing   or   . Press   to clear an entered station or group shown on the...

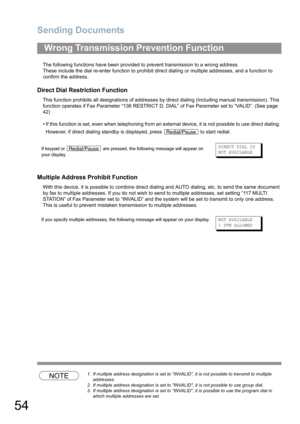

Sending Documents
54
The following functions have been provided to prevent transmission to a wrong address.
These include the dial re-enter function to prohibit direct dialing or multiple addresses, and a function to
confirm the address.
Direct Dial Restriction Function
This function prohibits all designations of addresses by direct dialing (Including manual transmission). This
function operates if Fax Parameter “136 RESTRICT D. DIAL” of Fax Parameter set to “VALID”. (See page
42)
• If this function...

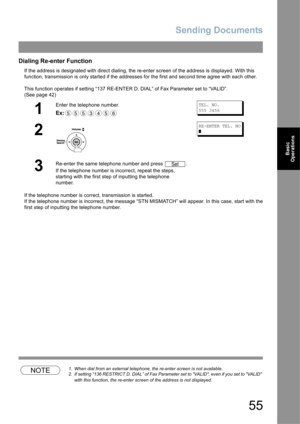

Sending Documents
55
Basic
Operations
Dialing Re-enter Function
If the address is designated with direct dialing, the re-enter screen of the address is displayed. With this
function, transmission is only started if the addresses for the first and second time agree with each other.
This function operates if setting “137 RE-ENTER D. DIAL” of Fax Parameter set to “VALID”.
(See page 42)
If the telephone number is correct, transmission is started.
If the telephone number is incorrect, the message “STN...

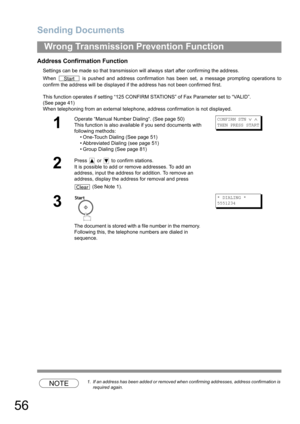

Sending Documents
56
Wrong Transmission Prevention Function
Address Confirmation Function
Settings can be made so that transmission will always start after confirming the address.
When   is pushed and address confirmation has been set, a message prompting operations to
confirm the address will be displayed if the address has not been confirmed first.
This function operates if setting “125 CONFIRM STATIONS” of Fax Parameter set to “VALID”.
(See page 41)
When telephoning from an external telephone,...

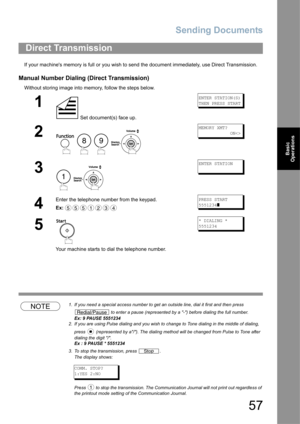

Sending Documents
57
Basic
Operations
If your machines memory is full or you wish to send the document immediately, use Direct Transmission.
Manual Number Dialing (Direct Transmission)
Without storing image into memory, follow the steps below.
NOTE1. If you need a special access number to get an outside line, dial it first and then press
 to enter a pause (represented by a -) before dialing the full number.
Ex: 9 PAUSE 5551234
2. If you are using Pulse dialing and you wish to change to Tone dialing in...

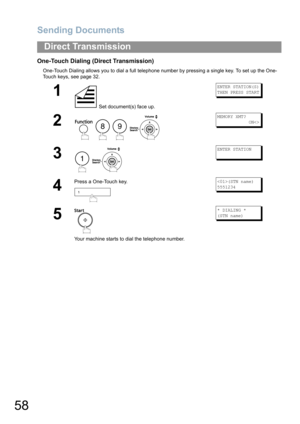

Sending Documents
58
Direct Transmission
One-Touch Dialing (Direct Transmission)
One-Touch Dialing allows you to dial a full telephone number by pressing a single key. To set up the One-
Touch keys, see page 32.
1
 Set document(s) face up.
ENTER STATION(S)
THEN PRESS START
2

MEMORY XMT?
            ON
3

ENTER STATION
4
Press a One-Touch key.(STN name)
5551234
5
Your machine starts to dial the telephone number.
* DIALING *
(STN name)
89
1

Sending Documents
59
Basic
Operations
Abbreviated Dialing (Direct Transmission)
Abbreviated dialing is a speedy way to dial a frequently dialed telephone number by preprogramming the
telephone number into the built-in auto-dialer with a 3-digit abbreviated code. To program an abbreviated
dialing number, see page 33.
1
 Set document(s) face up.
ENTER STATION(S)
THEN PRESS START
2

MEMORY XMT?
            ON
3

ENTER STATION
4
Press   and a 3-digit code.
  [010](STN name)
5553456
5
Your machine...

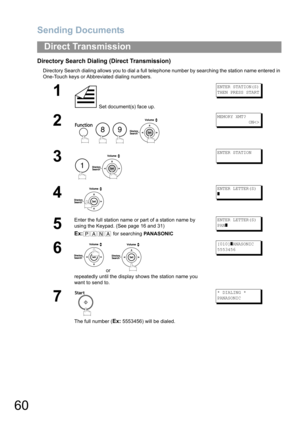

Sending Documents
60
Direct Transmission
Directory Search Dialing (Direct Transmission)
Directory Search dialing allows you to dial a full telephone number by searching the station name entered in
One-Touch keys or Abbreviated dialing numbers.
1
 Set document(s) face up.
ENTER STATION(S)
THEN PRESS START
2

MEMORY XMT?
            ON
3

ENTER STATION
4
ENTER LETTER(S)
]
5
Enter the full station name or part of a station name by
using the Keypad. (See page 16 and 31)
Ex: for searching PANASONIC...
