NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 143
Revision 1.0

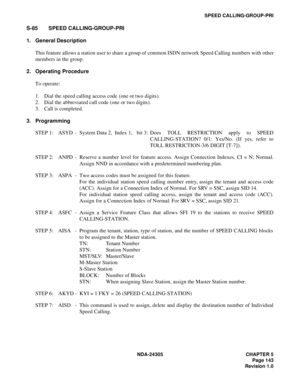

SPEED CALLING-GROUP-PRI
S-85 SPEED CALLING-GROUP-PRI
1. General Description
This feature allows a station user to share a group of common ISDN network Speed Calling numbers with other
members in the group.
2. Operating Procedure
To operate:
1. Dial the speed calling access code (one or two digits).
2. Dial the abbreviated call code (one or two digits).
3. Call is completed.
3. Programming
STEP 1: ASYD - System Data 2, Index 1, bit 3: Does TOLL RESTRICTION apply...

CHAPTER 5 NDA-24305
Pag e 1 44
Revision 1.0

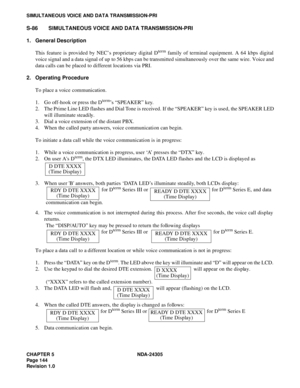

SIMULTANEOUS VOICE AND DATA TRANSMISSION-PRI
S-86 SIMULTANEOUS VOICE AND DATA TRANSMISSION-PRI
1. General Description
This feature is provided by NEC’s proprietary digital D
term family of terminal equipment. A 64 kbps digital
voice signal and a data signal of up to 56 kbps can be transmitted simultaneously over the same wire. Voice and
data calls can be placed to different locations via PRI.
2. Operating Procedure
To place a voice communication.
1. Go off-hook...

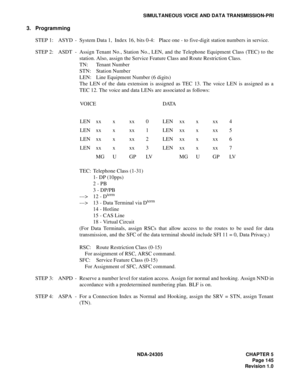

NDA-24305 CHAPTER 5
Page 145
Revision 1.0
SIMULTANEOUS VOICE AND DATA TRANSMISSION-PRI
3. Programming
STEP 1: ASYD - System Data 1, Index 16, bits 0-4: Place one - to five-digit station numbers in service.
STEP 2: ASDT - Assign Tenant No., Station No., LEN, and the Telephone Equipment Class (TEC) to the
station. Also, assign the Service Feature Class and Route Restriction Class.
TN: Tenant Number
STN: Station Number
LEN: Line Equipment Number (6 digits)
The LEN of the data extension is assigned as TEC...

CHAPTER 5 NDA-24305
Pag e 1 46
Revision 1.0
SIMULTANEOUS VOICE AND DATA TRANSMISSION-PRI

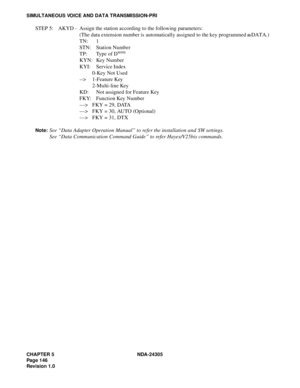

STEP 5: AKYD - Assign the station according to the following parameters:
(The data extension number is automatically assigned to the key programmed as DATA.)
TN: 1
STN: Station Number
TP: Type of D
term
KYN: Key Number
KYI: Service Index
0-Key Not Used
--> 1-Feature Key
2-Multi-line Key
KD: Not assigned for Feature Key
FKY: Function Key Number
---> FKY = 29, DATA
---> FKY = 30, AUTO (Optional)
---> FKY = 31, DTX...

NDA-24305 CHAPTER 5
Page 147
Revision 1.0

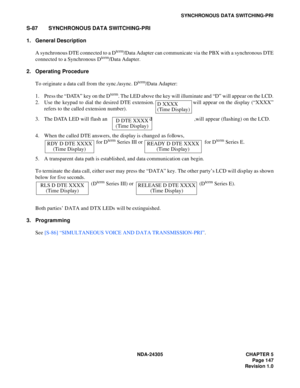

SYNCHRONOUS DATA SWITCHING-PRI
S-87 SYNCHRONOUS DATA SWITCHING-PRI
1. General Description
A synchronous DTE connected to a D
term/Data Adapter can communicate via the PBX with a synchronous DTE
connected to a Synchronous Dterm/Data Adapter.
2. Operating Procedure
To originate a data call from the sync./async. D
term/Data Adapter:
1. Press the “DATA” key on the D
term. The LED above the key will illuminate and “D” will appear on the LCD.
2. Use the keypad to dial...

CHAPTER 5 NDA-24305
Pag e 1 48
Revision 1.0

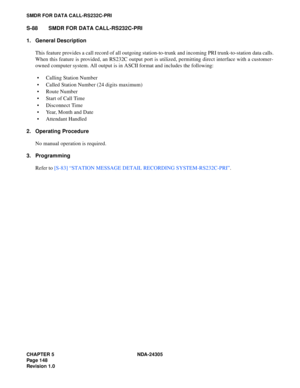

SMDR FOR DATA CALL-RS232C-PRI
S-88 SMDR FOR DATA CALL-RS232C-PRI
1. General Description
This feature provides a call record of all outgoing station-to-trunk and incoming PRI trunk-to-station data calls.
When this feature is provided, an RS232C output port is utilized, permitting direct interface with a customer-
owned computer system. All output is in ASCII format and includes the following:
 Calling Station Number
 Called Station Number (24 digits maximum)
...

NDA-24305 CHAPTER 5
Page 149
Revision 1.0

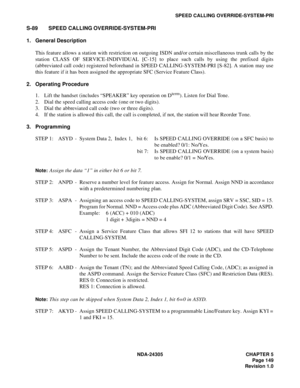

SPEED CALLING OVERRIDE-SYSTEM-PRI
S-89 SPEED CALLING OVERRIDE-SYSTEM-PRI
1. General Description
This feature allows a station with restriction on outgoing ISDN and/or certain miscellaneous trunk calls by the
station CLASS OF SERVICE-INDIVIDUAL [C-15] to place such calls by using the prefixed digits
(abbreviated call code) registered beforehand in SPEED CALLING-SYSTEM-PRI [S-82]. A station may use
this feature if it has been assigned the appropriate SFC (Service...

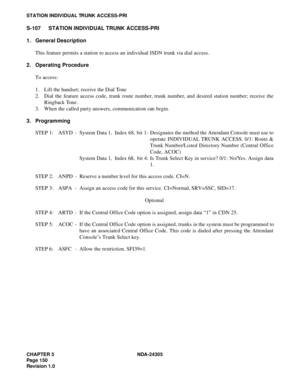

CHAPTER 5 NDA-24305
Pag e 1 50
Revision 1.0
STATION INDIVIDUAL TRUNK ACCESS-PRI
S-107 STATION INDIVIDUAL TRUNK ACCESS-PRI
1. General Description
This feature permits a station to access an individual ISDN trunk via dial access.
2. Operating Procedure
To access:
1. Lift the handset; receive the Dial Tone
2. Dial the feature access code, trunk route number, trunk number, and desired station number; receive the
Ringback Tone.
3. When the called party answers, communication can begin.
3. Programming
STEP 1:...

NDA-24305 CHAPTER 5
Page 151
Revision 1.0

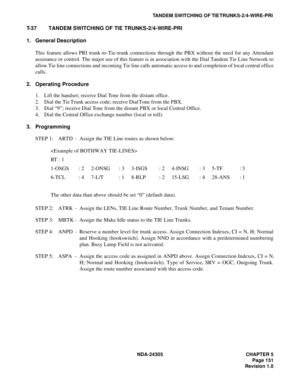

TANDEM SWITCHING OF TIE TRUNKS-2/4-WIRE-PRI
T-37 TANDEM SWITCHING OF TIE TRUNKS-2/4-WIRE-PRI
1. General Description
This feature allows PRI trunk-to-Tie-trunk connections through the PBX without the need for any Attendant
assistance or control. The major use of this feature is in association with the Dial Tandem Tie Line Network to
allow Tie line connections and incoming Tie line calls automatic access to and completion of local central office
calls.
2. Operating...

CHAPTER 5 NDA-24305
Pag e 1 52
Revision 1.0

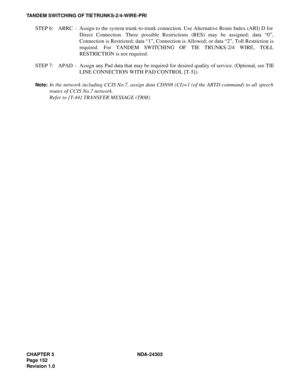

TANDEM SWITCHING OF TIE TRUNKS-2/4-WIRE-PRI
STEP 6: ARRC - Assign to the system trunk-to-trunk connection. Use Alternative Route Index (ARI) D for
Direct Connection. Three possible Restrictions (RES) may be assigned; data “0”,
Connection is Restricted; data “1”, Connection is Allowed; or data “2”, Toll Restriction is
required. For TANDEM SWITCHING OF TIE TRUNKS-2/4 WIRE, TOLL
RESTRICTION is not required.
STEP 7: APAD - Assign any Pad data that may be required...
