NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 153
Revision 1.0

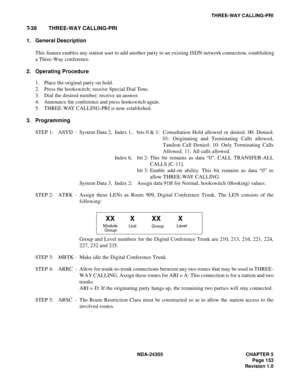

THREE-WAY CALLING-PRI
T-38 THREE-WAY CALLING-PRI
1. General Description
This feature enables any station user to add another party to an existing ISDN network connection, establishing
a Three-Way conference.
2. Operating Procedure
1. Place the original party on hold.
2. Press the hookswitch; receive Special Dial Tone.
3. Dial the desired number; receive an answer.
4. Announce the conference and press hookswitch again.
5. THREE-WAY CALLING-PRI is now established....

CHAPTER 5 NDA-24305
Pag e 1 54
Revision 1.0

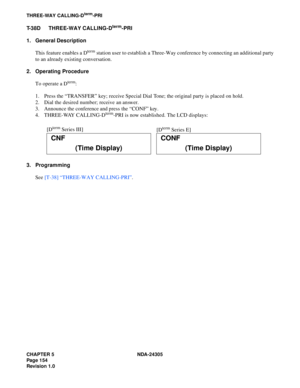

THREE-WAY CALLING-Dterm-PRI
T-38D THREE-WAY CALLING-Dterm-PRI
1. General Description
This feature enables a D
term station user to establish a Three-Way conference by connecting an additional party
to an already existing conversation.
2. Operating Procedure
To operate a D
term:
1. Press the “TRANSFER” key; receive Special Dial Tone; the original party is placed on hold.
2. Dial the desired number; receive an answer.
3. Announce the conference and press the...

NDA-24305 CHAPTER 5
Page 155
Revision 1.0

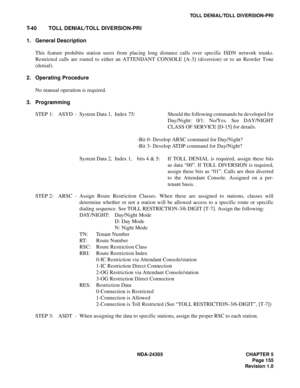

TOLL DENIAL/TOLL DIVERSION-PRI
T-40 TOLL DENIAL/TOLL DIVERSION-PRI
1. General Description
This feature prohibits station users from placing long distance calls over specific ISDN network trunks.
Restricted calls are routed to either an ATTENDANT CONSOLE [A-3] (diversion) or to an Reorder Tone
(denial).
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: ASYD - System Data  1, Index  75: Should the following commands be developed for...

CHAPTER 5 NDA-24305
Pag e 1 56
Revision 1.0

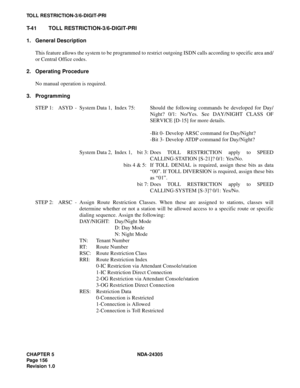

TOLL RESTRICTION-3/6-DIGIT-PRI
T-41 TOLL RESTRICTION-3/6-DIGIT-PRI
1. General Description
This feature allows the system to be programmed to restrict outgoing ISDN calls according to specific area and/
or Central Office codes.
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: ASYD - System Data 1, Index 75: Should the following commands be developed for Day/
Night? 0/1: No/Yes. See DAY/NIGHT CLASS OF
SERVICE [D-15] for more...

NDA-24305 CHAPTER 5
Page 157
Revision 1.0
TOLL RESTRICTION-3/6-DIGIT-PRI

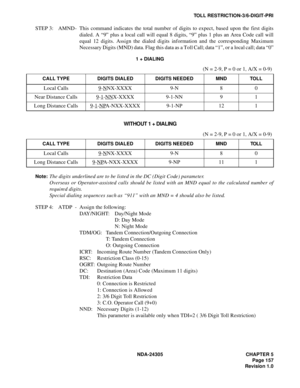

STEP 3: AMND- This command indicates the total number of digits to expect, based upon the first digits
dialed. A “9” plus a local call will equal 8 digits, “9” plus 1 plus an Area Code call will
equal 12 digits. Assign the dialed digits information and the corresponding Maximum
Necessary Digits (MND) data. Flag this data as a Toll Call; data “1”, or a local call; data “0”
Note:The digits underlined are to be listed in the DC (Digit...

CHAPTER 5 NDA-24305
Pag e 1 58
Revision 1.0

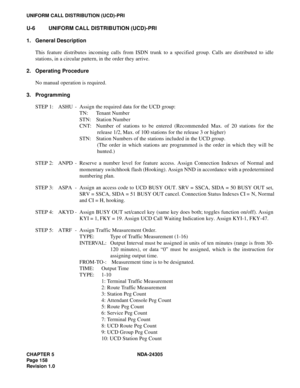

UNIFORM CALL DISTRIBUTION (UCD)-PRI
U-6 UNIFORM CALL DISTRIBUTION (UCD)-PRI
1. General Description
This feature distributes incoming calls from ISDN trunk to a specified group. Calls are distributed to idle
stations, in a circular pattern, in the order they arrive.
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: ASHU - Assign the required data for the UCD group:
TN: Tenant Number
STN: Station Number
CNT:  Number of stations to...

NDA-24305 CHAPTER 5
Page 159
Revision 1.0
UNIFORM CALL DISTRIBUTION (UCD)-PRI

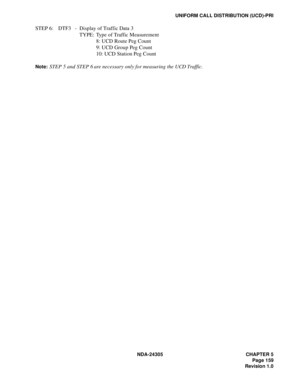

STEP 6: DTF3 - Display of Traffic Data 3
TYPE: Type of Traffic Measurement
8: UCD Route Peg Count
9: UCD Group Peg Count
10: UCD Station Peg Count
Note:STEP 5 and STEP 6 are necessary only for measuring the UCD Traffic.

CHAPTER 5 NDA-24305
Pag e 1 60
Revision 1.0

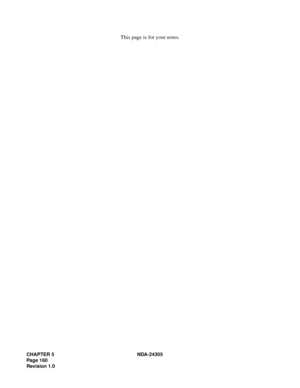

This page is for your notes.

NDA-24305 CHAPTER 6
Page 161
Revision 1.0

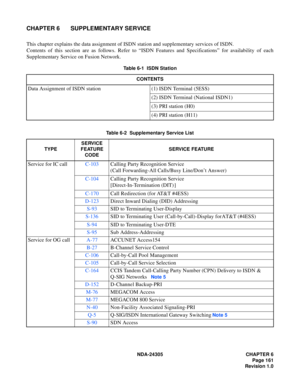

CHAPTER 6 SUPPLEMENTARY SERVICE
This chapter explains the data assignment of ISDN station and supplementary services of ISDN.
Contents of this section are as follows. Refer to “ISDN Features and Specifications” for availability of each
Supplementary Service on Fusion Network.
Table 6-1  ISDN Station
CONTENTS
Data Assignment of ISDN station (1) ISDN Terminal (5ESS)
(2) ISDN Terminal (National ISDN1)
(3) PRI station (H0)
(4) PRI station (H11)
Table 6-2...

CHAPTER 6 NDA-24305
Pag e 1 62
Revision 1.0

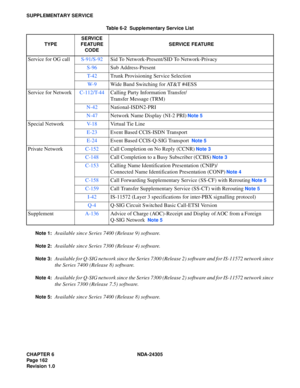

SUPPLEMENTARY SERVICE
Note 1:
Available since Series 7400 (Release 9) software.
Note 2:Available since Series 7300 (Release 4) software.
Note 3:Available for Q-SIG network since the Series 7300 (Release 2) software and for IS-11572 network since
the Series 7400 (Release 8) software.
Note 4:Available for Q-SIG network since the Series 7300 (Release 2) software and for IS-11572 network since
the Series 7300 (Release 7.5) software.
Note 5:Available since Series...
