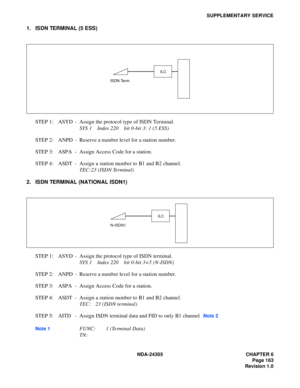

NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 163
Revision 1.0
SUPPLEMENTARY SERVICE
1. ISDN TERMINAL (5 ESS)
STEP 1: ASYD - Assign the protocol type of ISDN Terminal.
SYS 1 Index 220 bit 0-bit 3: 1 (5 ESS)
STEP 2: ANPD - Reserve a number level for a station number.
STEP 3: ASPA - Assign Access Code for a station.
STEP 4: ASDT - Assign a station number to B1 and B2 channel.
TEC:23 (ISDN Terminal)
2. ISDN TERMINAL (NATIONAL ISDN1)
STEP 1: ASYD - Assign the protocol type of ISDN terminal.
SYS 1 Index 220 bit 0-bit 3=5...

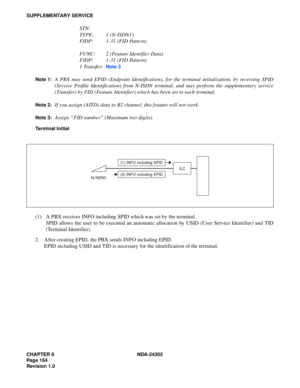

CHAPTER 6 NDA-24305
Pag e 1 64
Revision 1.0
SUPPLEMENTARY SERVICE
STN:
TYPE: 1 (N-ISDN1)
FIDP: 1-31 (FID Pattern)
FUNC: 2 (Feature Identifier Data)
FIDP: 1-31 (FID Pattern)
1 Transfer:
Note 3
Note 1:
A PBX may send EPID (Endpoint Identification), for the terminal initialization, by receiving SPID
(Service Profile Identification) from N-ISDN terminal, and may perform the supplementary service
(Transfer) by FID (Feature Identifier) which has been set to each terminal.
Note 2:If you assign (AITD) data to B2...

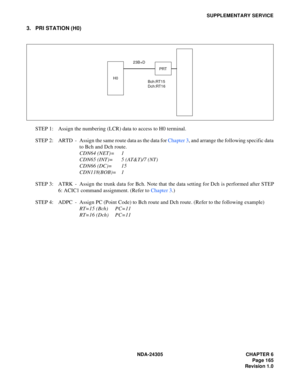

NDA-24305 CHAPTER 6
Page 165
Revision 1.0
SUPPLEMENTARY SERVICE
3. PRI STATION (H0)
STEP 1: Assign the numbering (LCR) data to access to H0 terminal.
STEP 2: ARTD - Assign the same route data as the data for Chapter 3, and arrange the following specific data
to Bch and Dch route.
CDN64 (NET)= 1
CDN65 (INT)= 5 (AT&T)/7 (NT)
CDN66 (DC)= 15
CDN118(BOB)= 1
STEP 3: ATRK - Assign the trunk data for Bch. Note that the data setting for Dch is performed after STEP
6: ACIC1 command assignment. (Refer to Chapter...

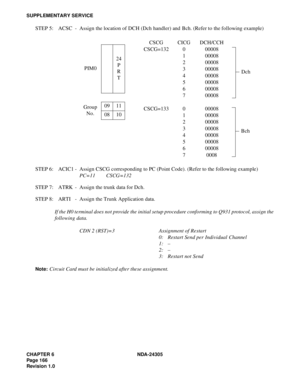

CHAPTER 6 NDA-24305
Pag e 1 66
Revision 1.0
SUPPLEMENTARY SERVICE
STEP 5: ACSC - Assign the location of DCH (Dch handler) and Bch. (Refer to the following example)
STEP 6: ACIC1 - Assign CSCG corresponding to PC (Point Code). (Refer to the following example)
PC=11 CSCG=132
STEP 7: ATRK - Assign the trunk data for Dch.
STEP 8: ARTI - Assign the Trunk Application data.
If the H0 terminal does not provide the initial setup procedure conforming to Q931 protocol, assign the
following data.
CDN 2 (RST)=3...

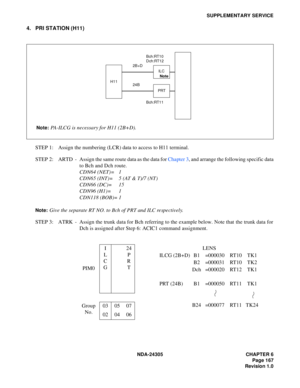

NDA-24305 CHAPTER 6
Page 167
Revision 1.0
SUPPLEMENTARY SERVICE
4. PRI STATION (H11)
STEP 1: Assign the numbering (LCR) data to access to H11 terminal.
STEP 2: ARTD - Assign the same route data as the data for Chapter 3, and arrange the following specific data
to Bch and Dch route.
CDN64 (NET)= 1
CDN65 (INT)= 5 (AT & T)/7 (NT)
CDN66 (DC)= 15
CDN96 (H1)= 1
CDN118 (BOB)= 1
Note:Give the separate RT NO. to Bch of PRT and ILC respectively.
STEP 3: ATRK - Assign the trunk data for Bch referring to the example...

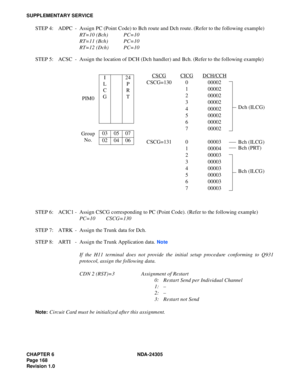

CHAPTER 6 NDA-24305
Pag e 1 68
Revision 1.0
SUPPLEMENTARY SERVICE
STEP 4: ADPC - Assign PC (Point Code) to Bch route and Dch route. (Refer to the following example)RT=10 (Bch) PC=10
RT=11 (Bch) PC=10
RT=12 (Dch) PC=10
STEP 5: ACSC - Assign the location of DCH (Dch handler) and Bch. (Refer to the following example)
STEP 6: ACIC1 - Assign CSCG corresponding to PC (Point Code). (Refer to the following example) PC=10 CSCG=130
STEP 7: ATRK - Assign the Trunk  data for Dch.
S TEP  8:   ARTI  -  As sign the  T...

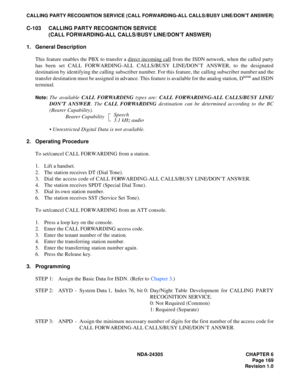

NDA-24305 CHAPTER 6
Page 169
Revision 1.0
CALLING PARTY RECOGNITION SERVICE (CALL FORWARDING-ALL CALLS/BUSY LINE/DON’T ANSWER)
C-103 CALLING PARTY RECOGNITION SERVICE
(CALL FORWARDING-ALL CALLS/BUSY LINE/DON’T ANSWER)
1. General Description
This feature enables the PBX to transfer a direct incoming call
 from the ISDN network, when the called party
has been set CALL FORWARDING-ALL CALLS/BUSY LINE/DON’T ANSWER, to the designated
destination by identifying the calling subscriber number. For this feature,...

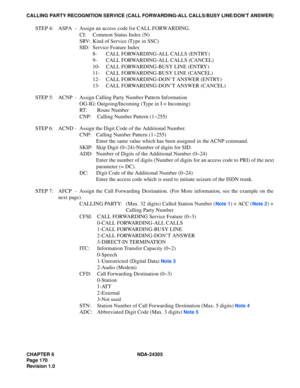

CHAPTER 6 NDA-24305
Pag e 1 70
Revision 1.0
CALLING PARTY RECOGNITION SERVICE (CALL FORWARDING-ALL CALLS/BUSY LINE/DON’T ANSWER)
STEP 4: ASPA  - Assign an access code for CALL FORWARDING.
CI: Common Status Index (N)
SRV: Kind of Service (Type in SSC)
SID: Service Feature Index
8- CALL FORWARDING-ALL CALLS (ENTRY)
9- CALL FORWARDING-ALL CALLS (CANCEL)
10- CALL FORWARDING-BUSY LINE (ENTRY)
11- CALL FORWARDING-BUSY LINE (CANCEL)
12- CALL FORWARDING-DON’T ANSWER (ENTRY)
13- CALL FORWARDING-DON’T ANSWER...

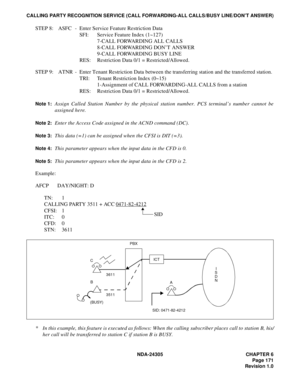

NDA-24305 CHAPTER 6
Page 171
Revision 1.0
CALLING PARTY RECOGNITION SERVICE (CALL FORWARDING-ALL CALLS/BUSY LINE/DON’T ANSWER)
STEP 8: ASFC  - Enter Service Feature Restriction Data
SFI: Service Feature Index (1~127)
7-CALL FORWARDING ALL CALLS
8-CALL FORWARDING DON’T ANSWER
9-CALL FORWARDING BUSY LINE
RES: Restriction Data 0/1 = Restricted/Allowed.
STEP 9: ATNR - Enter Tenant Restriction Data between the transferring station and the transferred station.
TRI: Tenant Restriction Index (0~15)
1-Assignment...

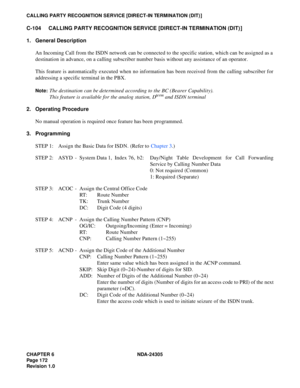

CHAPTER 6 NDA-24305
Pag e 1 72
Revision 1.0
CALLING PARTY RECOGNITION SERVICE [DIRECT-IN TERMINATION (DIT) ]
C-104 CALLING PARTY RECOGNITION SERVICE [DIRECT-IN TERMINATION (DIT) ]
1. General Description
An Incoming Call from the ISDN network can be connected to the specific station, which can be assigned as a
destination in advance, on a calling subscriber number basis without any assistance of an operator.
This feature is automatically executed when no information has been received from the calling...
