NDA-24298 CHAPTER 4 Page 357 Issue 1 AISPN : Assignment of Incoming Selection Pattern Data for NDM 4. Data Sheet INCOMING SELECTION TRANSLATION PATTERN NUMBER (PNI) 1 – 15ADDITIONAL DIGIT INFORMATION (DC) MAXIMUM 4 DIGITSREMARKS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Page 392
CHAPTER 4 NDA-24298 Page 358 Issue 1 ARAC : Assignment of Remote Access Code ARAC: Assignment of Remote Access Code 1. General This command is used when the system provides the Remote Access to System service feature for a TIE line or DID line. 2. Precautions 1. The Remote Access to System service feature is activated when the access code (assigned at ACC parameter of this command) is called from a TIE line or a DID line. This command assignment is not required when the Ring Down method incoming route...
Page 393

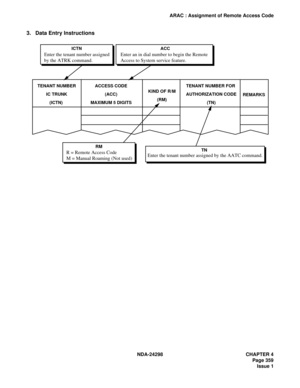

NDA-24298 CHAPTER 4 Page 359 Issue 1 ARAC : Assignment of Remote Access Code 3. Data Entry Instructions TENANT NUMBER IC TRUNK (ICTN) KIND OF R/M (RM) ACCESS CODE (ACC) MAXIMUM 5 DIGITSTENANT NUMBER FOR AUTHORIZATION CODE (TN)REMARKS TN Enter the tenant number assigned by the AATC command. ACC Enter an in dial number to begin the Remote Access to System service feature. ICTN Enter the tenant number assigned by the ATRK command. RM R = Remote Access Code M = Manual Roaming (Not used)
Page 394
CHAPTER 4 NDA-24298 Page 360 Issue 1 ARAC : Assignment of Remote Access Code 4. Data Sheet TENANT NUMBER OF IC TRUNK (ICTN) ACCESS CODE (ACC) MAXIMUM 5 DIGITSKIND OF R/M (RM)TENANT NUMBER FOR AUTHORIZATION CODE (TN)REMARKS
Page 395
NDA-24298 CHAPTER 4 Page 361 Issue 1 ARSC : Assignment of Route Restriction Class ARSC: Assignment of Route Restriction Class 1. General This command assigns route restriction information according to the Route Restriction Class (RSC) of the station and the Route Number (RT). 2. Precautions 1. Data can be entered on a Day/Night basis, if specified in ASYD command, SYS1, INDEX75, bit 0=1. 2. The applicable Tenant Number (TN) range is designated by the ASYD command, SYS1, INDEX8. If data of this command...
Page 396

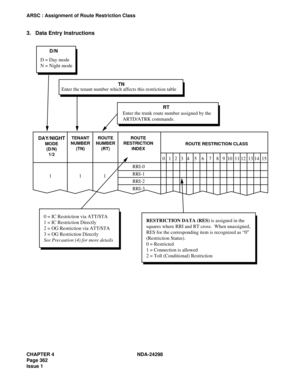

CHAPTER 4 NDA-24298 Page 362 Issue 1 ARSC : Assignment of Route Restriction Class 3. Data Entry Instructions 1110 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 RRI-0 RRI-1 RRI-2 RRI-3 0 = IC Restriction via ATT/STA 1 = IC Restriction Directly 2 = OG Restriction via ATT/STA 3 = OG Restriction Directly See Precaution (4) for more detailsRESTRICTION DATA (RES) is assigned in the squares where RRI and RT cross. When unassigned, RES for the corresponding item is recognized as “0”...
Page 397
NDA-24298 CHAPTER 4 Page 363 Issue 1 ARSC : Assignment of Route Restriction Class 4. Data Sheet DAY/NIGHT MODE D/NTENANT NUMBER (TN)ROUTE NUMBER (RT)ROUTE RESTRICTION INDEXROUTE RESTRICTION CLASS 01234567891011 12 13 14 15 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3
Page 398
CHAPTER 4 NDA-24298 Page 364 Issue 1 ARSCN : Assignment of Route Restriction Class for NDM ARSCN: Assignment of Route Restriction Class for NDM 1. General This command assigns route restriction information according to the Route Restriction Class (RSC) of the station and the Logical Route Number in the Fusion network. 2. Precautions 1. Data can be entered on a Day/Night basis, if specified in ASYDN command, SYS1, INDEX75, bit 0=1. 2. The applicable Tenant Number (TN) range is designated by the ASYDN...
Page 399

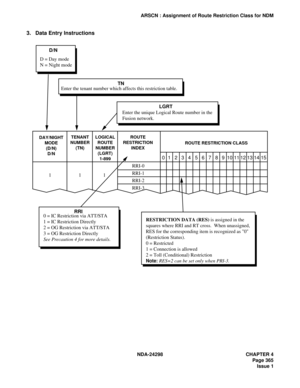

NDA-24298 CHAPTER 4 Page 365 Issue 1 ARSCN : Assignment of Route Restriction Class for NDM 3. Data Entry Instructions 1110 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 RRI-0 RRI-1 RRI-2 RRI-3 0 = IC Restriction via ATT/STA 1 = IC Restriction Directly 2 = OG Restriction via ATT/STA 3 = OG Restriction Directly See Precaution 4 for more details.RESTRICTION DATA (RES) is assigned in the squares where RRI and RT cross. When unassigned, RES for the corresponding item is recognized as 0...
Page 400
CHAPTER 4 NDA-24298 Page 366 Issue 1 ARSCN : Assignment of Route Restriction Class for NDM 4. Data Sheet DAY/NIGHT MODE D/NTENANT NUMBER (TN)LOGICAL ROUTE NUMBER (LGRT) 1-899ROUTE RESTRICTION INDEXROUTE RESTRICTION CLASS 0123456789101112131415 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3 RRI-0 RRI-1 RRI-2 RRI-3
