NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 367
Issue 1
ARRC : Assignment of Alternative Route Restriction
ARRC: Assignment of Alternative Route Restriction
1. General
This command is used to accomplish trunk tandem connection.
2. Precautions
1. The ASTD command is also required to access trunk tandem connections including C.O. Line.
2. When data “2 (Toll Restriction is required)” is assigned at the ARI-D_RES parameter, the ATDP
command designates the connection allowed area (office) code.
3. The following table shows the...

CHAPTER 4 NDA-24298
Page 368
Issue 1
ARRC : Assignment of Alternative Route Restriction

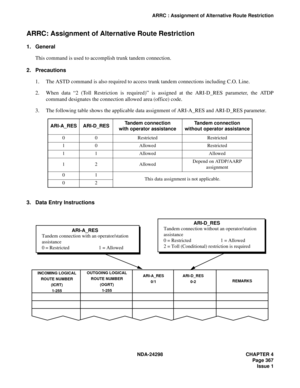

4. Data Sheet
INCOMING ROUTE
NUMBER
(ICRT)OUTGOING ROUTE
NUMBER (OGRT)(ARI-A_RES)
0/1(ARI-D_RES)
0 - 2REMARKS

NDA-24298 CHAPTER 4
Page 369
Issue 1
ARRCN : Assignment of Alternative Route Restriction for NDM
ARRCN: Assignment of Alternative Route Restriction for NDM
1. General
This command establishes trunk tandem connection (Logical route to Logical route via the Fusion network).
This data is written in the NDM of the NCN.
2. Precautions
1. The ASTD command is also required to access trunk tandem connections including C.O. Line.
2. When data “2 (Toll Restriction is required)” is assigned at the ARI-D_RES...

CHAPTER 4 NDA-24298
Page 370
Issue 1
ARRCN : Assignment of Alternative Route Restriction for NDM

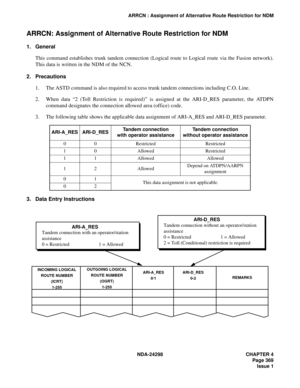

4. Data Sheet
INCOMING LOGICAL
ROUTE NUMBER
(ICLGRT)
1-899OUTGOING  LOGICAL
ROUTE NUMBER
(OGLGRT)
1-899(ARI-A_RES)
0/1(ARI-D_RES)
0 - 2REMARKS

NDA-24298 CHAPTER 4
Page 371
Issue 1
ATDP : Assignment of Toll Code Restriction Data
ATDP:   Assignment of Toll Code Restriction Data
1. General
This command assigns the area code of Toll Restriction - 3/6 digits for both an outgoing connection and a
tandem connection.
2. Precautions
1. This command is used when restriction data is assigned to RES = 2 (Toll Restriction is required) in the
ARSC command or in the ARRC command.
2. The office code following the area code assigned on this command can also be...

CHAPTER 4 NDA-24298
Page 372
Issue 1
ATDP : Assignment of Toll Code Restriction Data
(b) 6-Digit Toll Restriction
9 - 1 - NPA - Nxx - xxxx
A 6-digit toll restriction is a restriction that is to be executed by developing the contents (NPA - Nxx
in this case) of the 6 digits that follow the toll code.
If data is set as follows, a toll call can be restricted by developing NAP - Nxx.
At Toll Code Restriction Data (ATDP)
DC = 9-1, TDI = 2, NND = 6 (NPA - Nxx)
At Area & Office Code Data (AARP)
DC = NAP -...

NDA-24298 CHAPTER 4
Page 373
Issue 1
ATDP : Assignment of Toll Code Restriction Data

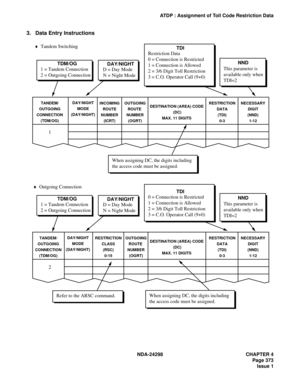

3. Data Entry Instructions
♦  Tandem Switching
TANDEM/
OUTGOING
CONNECTION
(TDM/OG)DAY/NIGHT
MODE
(DAY/NIGHT)INCOMING
ROUTE
NUMBER
(ICRT)OUTGOING
ROUTE
NUMBER
(OGRT)DESTINATION (AREA) CODE
 (DC)
MAX. 11 DIGITSNECESSARY
DIGIT
(NND)
1-12 RESTRICTION
DATA
(TDI)
0-3
1 = Tandem Connection
2 = Outgoing Connection    TDM/OG
DAY/NIGHT
D = Day Mode
N = Night Mode
TDI
Restriction Data
0 = Connection is Restricted
1 = Connection...

CHAPTER 4 NDA-24298
Page 374
Issue 1
ATDP : Assignment of Toll Code Restriction Data
4. Data Sheet
(a) Tandem Connection (TDM/OG = T/O)
TANDEM/
OUTGOING
T/ODAY/ NIG HT
MODE
 (DAY/NIGHT)
D/NINCOMING
 ROUTE
NUMBER
(ICRT)OUTGOING
ROUTE
NUMBER
(OGRT)DESTINATION (AREA) CODE
(DC)
 MAXIMUM 11 DIGITSRESTRICTION
DATA
(TDI)
 0 – 3
1

NDA-24298 CHAPTER 4
Page 375
Issue 1
ATDP : Assignment of Toll Code Restriction Data
(b) Outgoing Connection (TDM/OG = 2)
TANDEM/
OUTGOING
(TDM/OG)DAY/NIGHT
MODE
 (DAY/NIGHT)
1/2ROUTE
RESTRICTION
NUMBER
 (RSC)
0 – 15OUTGOING
ROUTE
NUMBER
(OGRT)DESTINATION (AREA) CODE
(DC)
 MAX. 11 DIGITSRESTRICTION
DATA
 (TDI)
 0 – 3
2

CHAPTER 4 NDA-24298
Page 376
Issue 1
ATDPL : Assignment of Toll Code Restriction Data for LDM
ATDPL:   Assignment of Toll Code Restriction Data for LDM
1. General
This command assigns the area code of Toll Restriction - 3/6 digits for an outgoing connection. This data is
written in Local Data Memory (LDM). When using common Toll Code Restriction data in Fusion Network,
assign this data via the ATDPN command.
2. Precautions
1. This command is used when restriction data is assigned to RES = 2 (Toll...
