NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 807
Issue 1
ACDD : Assignment of Change Digit Code for Dial in Service
ACDD: Assignment of Change Digit Code for Dial in Service
1. General
This command assigns the Change Digit Code for the ISDN line with DID Addressing.
2. Precautions
1. Data can be entered on a Day/Night basis if specified in the ASYD command, SYS 1, INDEX 75, Bit 5=1.
2. This command does not affect DC = 0 (Sub Address - Addressing) assigned by the ARTD command.
3. Enter the B-Channel Route Number in the...

CHAPTER 4 NDA-24298
Page 808
Issue 1
ACDD : Assignment of Change Digit Code for Dial in Service

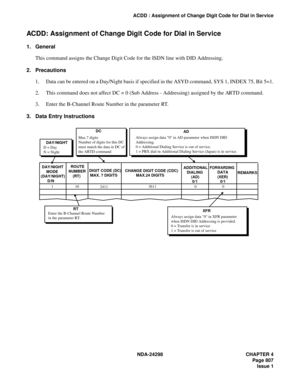

4. Data Sheet
DAY/ NIG HT
MODE
 (DAY/NIGHT)
D/NROUTE
NUMBER
(RT)DIGIT CODE
(DC)
 MAX. 7 DIGITSCHANGE DIGIT CODE
(CDC)
 MAX. 24 DIGITSADDITIONAL
DIALING
 (AD)
 0/1FORWARDING
DATA
(XFR)
0/1REMARKS

NDA-24298 CHAPTER 4
Page 809
Issue 1
ACDD_LR : Assignment of Change Digit Code for Dial In Service – Logical Route Number
ACDD_LR: Assignment of Change Digit Code for Dial In Service – Logical
Route Number
1. General
This command is used to assign the Change Digit Code for the ISDN line with DID Addressing. Route number
of the ACDD command can be assigned by using Logical Route.
2. Precautions
1. Prior to this command, logical route data must be allocated by using the ALRTN command.
2. Only when logging...

CHAPTER 4 NDA-24298
Page 810
Issue 1
ACDD_LR : Assignment of Change Digit Code for Dial In Service – Logical Route Number

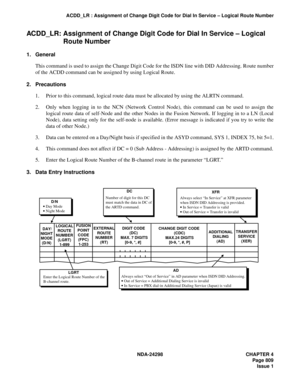

4. Data Sheet
DAY/
NIGHT
MODE
 (D/N)LOGICAL
ROUTE
NUMBER
(LGRT)
1-899FUSION
POINT
CODE
(FPC)
1-253EXTERNAL
ROUTE
NUMBER
(RT)DIGIT CODE
(DC)
 MAX. 7 DIGITS
[0-9, *, #]CHANGE DIGIT CODE
(CDC)
 MAX. 24 DIGITS
[0-9, *, #, P]ADDI-
TIONAL
DIALING
 (AD)TRANSFER
SERVICE
(XER)

NDA-24298 CHAPTER 4
Page 811
Issue 1
ACNP : Assignment of Calling Number Pattern
ACNP: Assignment of Calling Number Pattern
1. General
This command assigns the Calling Number Pattern (CNP) to the route that is used for the SID To Network-
Present service/for the Calling Party Recognition service.
2. Precautions
1. Enter a B-Channel Route Number in the RT parameter.
2. The CNP is an intermediate parameter to assign the SID using the ACND command.
3. Data Entry Instructions
    KING OF
CONNECTION...

CHAPTER 4 NDA-24298
Page 812
Issue 1
ACNP : Assignment of Calling Number Pattern

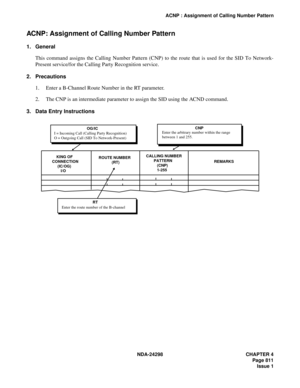

4. Data Sheet
KIND OF
CONNECTION
(IC/OG)
I/OROUTE
NUMBER
(RT)CALLING
 NUMBER
PATTERN
(CNP)
1 – 255REMARKS

NDA-24298 CHAPTER 4
Page 813
Issue 1
ACNPN : Assignment of Calling Number Pattern for NDM
ACNPN: Assignment of Calling Number Pattern for NDM
1. General
This command assigns the Calling Number Pattern (CNP) to the route which is used for the SID To Network-
Present service/for the Calling Party Recognition service. The data assigned by this command is written in
Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each Local Node
(LN).
2. Precautions
1. Enter a B-Channel...

CHAPTER 4 NDA-24298
Page 814
Issue 1
ACNPN : Assignment of Calling Number Pattern for NDM

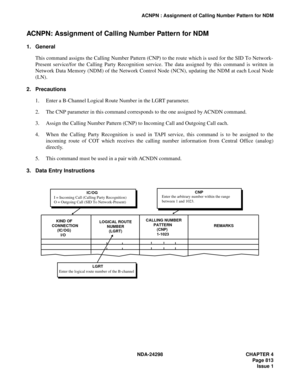

4. Data Sheet
KIND OF
CONNECTION
(IC/OG)
I/OLOGICAL
ROUTE
NUMBER
(LGRT)CALLING
 NUMBER
PATTERN
(CNP)
1 – 1023REMARKS

NDA-24298 CHAPTER 4
Page 815
Issue 1
ACND : Assignment of Calling Number Data
ACND: Assignment of Calling Number Data
1. General
This command assigns the Service Identification Number (SID) sent to the ISDN for the SID To Network -
Present service for the Calling Party Recognition service.
2. Precautions
The CNP parameter corresponds to the one assigned by the ACNP command.
3. Data Entry Instructions
 CALLING
 NUMBER
PATTERN
   (CNP)
   0-255NUMBER OF DIGITS OF
    THE ADDITIONAL
           NUMBER...

CHAPTER 4 NDA-24298
Page 816
Issue 1
ACND : Assignment of Calling Number Data

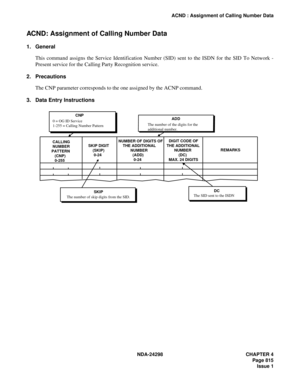

4. Data Sheet
CALLING
NUMBER
PATTERN
(CNP)
0 - 255SKIP
DIGIT
(SKIP)
0 - 24NUMBER OF
DIGITS OF THE
ADDITIONAL
NUMBER
(ADD)
0 - 24DIGIT CODE OF THE
ADDITIONAL NUMBER
(DC)
MAX. 24 DIGITSREMARKS
