NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 827
Issue 1
AFCP_T : Assignment of Call Forwarding Service by Calling Number – Telephone Number
AFCP_T : Assignment of Call Forwarding Service by Calling Number – Te l e -
phone Number
1. General
This command is used to assign/delete the data related to the Calling Party Recognition Service of ISDN. The
station data of AFCP command can be assigned by using Telephone Number instead.
2. Precautions
1. Only the Telephone Numbers assigned by the ALGSN command can be used. Telephone...

CHAPTER 4 NDA-24298
Page 828
Issue 1
AFCP_T : Assignment of Call Forwarding Service by Calling Number – Telephone Number

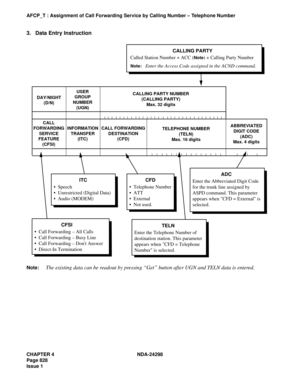

3. Data Entry Instruction
Note:The existing data can be readout by pressing “Get” button after UGN and TELN data is entered.
CALL
FORWARDING
SERVICE
FEATURE
(CFSI)INFORMATION
TRANSFER
(ITC)ABBREVIATED
DIGIT CODE
(ADC)
Max. 4 digits DAY/NIGHT
(D/N)USER
GROUP
NUMBER
(UGN)
CALL FORWARDING
DESTINATION
(CFD)
TELEPHONE NUMBER
(TELN)
Max. 16 digits CALLING PARTY NUMBER
(CALLING PARTY)
Max....

NDA-24298 CHAPTER 4
Page 829
Issue 1
AFCP_T : Assignment of Call Forwarding Service by Calling Number – Telephone Number
4. Data Sheet
(a) Call Forwarding Destination is a station (CFD = Telephone Number).
DAY/NIG HT
(D/N)USER
GROUP
NUMBER
(UGN)CALLING PARTY NUMBER
(CALLING PARTY)
Max. 32 digits
CALL
FORWARDING
SERVICE
FEATURE
(CFSI)INFORMATION
TRANSFER
(ITC)CALL FORWARDING
DESTINATION
(CFD)TELEPHONE NUMBER
(TELN)
Max. 16 digitsREMARKS
TELN
DAY/NIGHT UGNCALLING PARTY
Max. 32 digits
CFSI ITC CFDTELN...

CHAPTER 4 NDA-24298
Page 830
Issue 1
AFCP_T : Assignment of Call Forwarding Service by Calling Number – Telephone Number
(b) Call Forwarding Destination is an ATTCON (CFD = ATT)
(c) Call Forwarding Destination is a C.O. Line (CFD = External)
D/N UGNCALLING PARTY NUMBER
(CALLING PARTY)
Max. 32 digitsCALL
FORWARDING
SERVICE
FEATURE
(CFSI)INFORMATION
TRANSFER (ITC)CALL
FORWARDING
DESTINATION (CFD)
AT T
AT T
AT T
AT T
AT T
AT T
AT T
AT T
AT T
AT T
AT T
AT T
AT T
D/N UGNCALLING PARTY NUMBER
(CALLING PARTY)...

NDA-24298 CHAPTER 4
Page 831
Issue 1
ACBC : Assignment of Call by Call Service Data
ACBC: Assignment of Call by Call Service Data
1.  General
This command assigns the Call by Call Information for an ISDN Network.
2. Precautions
1. Before assigning data, assign the Outgoing Route Selection Pattern Number (OPR) using the AOPR com-
mand.
2.Table 4-28 provides the applicable data assignment for each ISDN switch.
3. The data assignment of the INTF parameter of this command should correspond to the INT...

CHAPTER 4 NDA-24298
Page 832
Issue 1
ACBC : Assignment of Call by Call Service Data
3. Data Entry Instructions
 ORDER OF
     ROUTE
ADVANCING
       (RA)
        0-7SERVICE
   MODE
    INTERFACE
      TYPE
      (INTF)
    1/5/7/10NUMBERING
      PLAN
IDENTIFICA-
      TION
      (NPI)
       0-15TYPE OF
NUMBER
   (TON)
     0-7FEATURE/
SERVICE
(SERV)
0-2 FACILITY
 FAILURE
 (CODE)
    0-31        SCC
 DISTINGUISH
NUMBER (SCC)
 MAX. 4 DIGITS
     TIME OF DAY
CHANGE PATTERN
        (TDPTN)
            0-7...

NDA-24298 CHAPTER 4
Page 833
Issue 1
ACBC : Assignment of Call by Call Service Data
Table 4-29 Code
WHEN APPLICABLE DATA AND MEANINGS
INTF = 1 (N-ISDN2)17 = INWATS Selection
18 = OUTWATS
19 = Foreign Exchange (FX)
20 = Tie Trunk (TIE)
INTF = 5 (AT&T),
SERV = 0 (Feature)  0 = Transmit Network Selection
  1 = CPN (SID) Preferred
  2 = BN (ANI) Preferred
  3 = CPN (SID) Only
  4 = BN (ANI) Only
  5 = Operator
  6 = PCCO
  9 = Call Associated TSC
10 = Notification of Call Associated TSC Clearing or...

CHAPTER 4 NDA-24298
Page 834
Issue 1
ACBC : Assignment of Call by Call Service Data
4. Data Sheet
TIME OF DAY
CHANGE PATTERN
(TDPTN)
0-7OUTGOING ROUTE
SELECTION PATTERN
NUMBER
(OPR)
0-4095
ORDER OF
ROUTE
ADVANCING
(RA)
0-7SERVICE
 MODE
(MD)INTERFACE
TYPE
(INTF)
1/5/7/10NUMBERING
PLAN
 IDENTIFICATION
(NPI)
0-15TYPE OF
NUMBER
(TON)
0-7FEATURE/
SERVICE
(SERV)
0-2FAC I L I T Y
CODING
VALUES
FAILURE
(CODE)
0-31WAT S
BAND
NUMBER
(BAND)
0-9SCC
DISTINGUISH
NUMBER
(SCC)
MAX. 4
DIGITSLCR...

NDA-24298 CHAPTER 4
Page 835
Issue 1
AREF : Assignment of Reference Number Information Data
AREF: Assignment of Reference Number Information Data
1. General
This command is used to assign Reference Number for ISDN feature.
2. Precautions
None
3. Data Entry Instructions

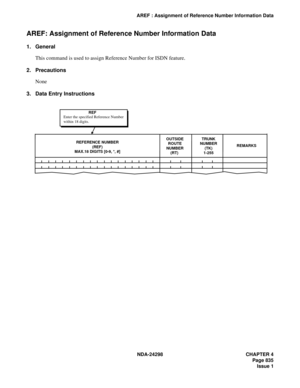

REMARKSREFERENCE NUMBER
(REF)
MAX.18 DIGITS [0-9, *, #]OUTSIDE
ROUTE
NUMBER
(RT)
        TRUNK
NUMBER
(TK)
1-255


REF
Enter the specified Reference Number
within 18 digits.

CHAPTER 4 NDA-24298
Page 836
Issue 1
AREF : Assignment of Reference Number Information Data
4. Data Sheet
REFERENCE NUMBER
(REF)
 MAX. 18  DIGITS [0-9, *, #]OUTSIDE
ROUTE
NUMBER
(RT)TRUNK
NUMBER
(TK)
1-255REMARKS
