NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 817
Issue 1
ACNDN : Assignment of Calling Number Data for NDM
ACNDN: Assignment of Calling Number Data for NDM
1. General
This command assigns the Station Number Identification (SID) sent to the ISDN for the SID To Network -
Present service/for the Calling Party Recognition service. The data assigned by this command is written in
Network Data Memory (NDM) of the Network Control Node (NCN), updating the NDM at each Local Node
(LN).
2. Precautions
1. The CNP parameter in this...

CHAPTER 4 NDA-24298
Page 818
Issue 1
ACNDN : Assignment of Calling Number Data for NDM

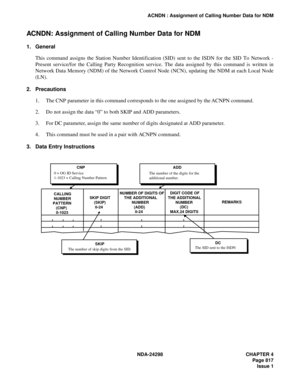

4. Data Sheet
CALLING
NUMBER
PATTERN
(CNP)
0 - 1023SKIP
DIGIT
(SKIP)
0 - 24NUMBER OF
DIGITS OF THE
ADDITIONAL
NUMBER
(ADD)
0 - 24DIGIT CODE OF THE
ADDITIONAL NUMBER
(DC)
MAX. 24 DIGITSREMARKS

NDA-24298 CHAPTER 4
Page 819
Issue 1
ACPNCL : Assignment of Calling Party Number Conversion for LDM
ACPNCL: Assignment of Calling Party Number Conversion for LDM
1. General
This command assigns skip and additional digits information for Outgoing Route Number. This data is written
in Local Data Memory (LDM).
2. Precautions
1. When the calling party number that is more than 8 digits including the office code (ARNP, RT=0) is
received from CCIS line, the calling party number is sent as Physical Station...

CHAPTER 4 NDA-24298
Page 820
Issue 1
ACPNCL : Assignment of Calling Party Number Conversion for LDM

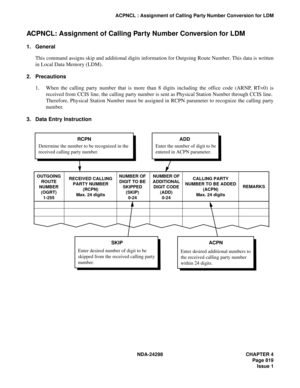

4. Data Sheet
OUTGOING
ROUTE
NUMBER
(OGRT)
1-255RECEIVED CALLING
PARTY NUMBER
(RCPN)
Max. 24 digitsNUMBER OF
DIGIT TO BE
SKIPPED
(SKIP)
 0-24NUMBER OF
ADDITIONAL
DIGIT CODE
(ADD)
0-24CALLING PARTY
NUMBER TO BE ADDED
(ACPN)
 Max. 24 digitsREMARKS


NDA-24298 CHAPTER 4
Page 821
Issue 1
ACPNCN : Assignment of Calling Party Number Conversion for NDM
ACPNCN: Assignment of Calling Party Number Conversion for NDM
1. General
This command assigns skip and additional digits information for Outgoing Logical Route Number. The data
assigned by this command is written in the Network Data Memory (NDM) of the Network Control Node (NCN),
updating the NDM at each Local Node (LN).
2. Precautions
1. When the calling party number that is more than 8 digits including...

CHAPTER 4 NDA-24298
Page 822
Issue 1
ACPNCN : Assignment of Calling Party Number Conversion for NDM
4. Data Sheet
OUTGOING
LOGICAL
ROUTE
NUMBER
(OGRT)
1-899RECEIVED CALLING
PARTY NUMBER
(RCPN)
Max. 24 digitsNUMBER OF
DIGIT TO BE
SKIPPED
(SKIP)
 0-24NUMBER OF
ADDITIONAL
DIGIT CODE
(ADD)
0-24CALLING PARTY
NUMBER TO BE ADDED
(ACPN)
 Max. 24 digitsREMARKS


NDA-24298 CHAPTER 4
Page 823
Issue 1
AFCP : Assignment of Call Forwarding Service by Calling Number
AFCP: Assignment of Call Forwarding Service by Calling Number
1. General
This command assigns the data related to the Calling Party Recognition Service of ISDN.
2. Precautions
1. When the Calling Forwarding Destination is a trunk line, assign the Abbreviated Digit Code for the trunk
line using the ASPD command.
2. Data can be entered on a Day/Night basis if specified in the ASYD command, SYS 1, INDEX 76,...

CHAPTER 4 NDA-24298
Page 824
Issue 1
AFCP : Assignment of Call Forwarding Service by Calling Number
3. Data Entry Instructions
INFORMATION
   TRANSFER
         (ITC)
          0-2        CALLING
          PARTY
        NUMBER
(CALLING PARTY)
  MAX. 32 DIGITSCALL FORWARDING
      DESTINATION
             (CFD)
               0-3 DAY/NIGHT
     MODE
(DAY/NIGHT)
        D/NTENANT
NUMBER
    (TN)        CALL
FORWARDING
     SERVICE
      FUTURE
        (CFSI)
           0-2STATION...

NDA-24298 CHAPTER 4
Page 825
Issue 1
AFCP : Assignment of Call Forwarding Service by Calling Number

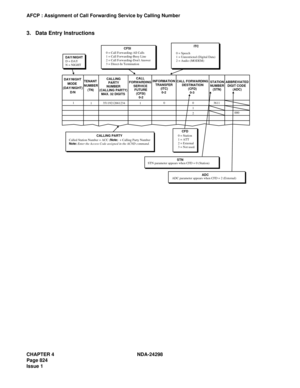

4. Data Sheet
(a) Call Forwarding Destination is a station.

(b) Call Forwarding Destination is an ATTCON.
DAY/NIGHT
MODE
(DAY/NIGHT)
D/NTENANT
NUMBER
(TN)CALLING PARTY
NUMBER
(CALLING PARTY)
MAX. 32 DIGITSCALL
FORWARDING
SERVICE
FUTURE
(CFSI)
0-3INFORMATION
 TRANSFER
(ITC)
0-2CALL
FORWARDING
DESTINATION
(CFD)
0STATION
NUMBER
(STN)
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
DAY/ NI GH T
MODE
(DAY/NIGHT)...

CHAPTER 4 NDA-24298
Page 826
Issue 1
AFCP : Assignment of Call Forwarding Service by Calling Number
(c) Call Forwarding Destination is a C.O. Line.
DAY/
NIGHT
MODE
(DAY/
NIGHT)
D/NTENANT
NUMBER
(TN)CALLING
PA R T Y
NUMBER
(CALLING PARTY)
MAX. 32 DIGITSCALL
FORWARDING
SERVICE
FUTURE
(CFSI)
0-3INFORMATION
TRANSFER
(ITC)
0-2CALL
FORWARDING
DESTINATION
(CFD)
2ABBREVIATE
DIGIT CODE
(ADC)
MAX. 4
DIGITS
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
