Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions
Here you can view all the pages of manual Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions. The Panasonic manuals for Copier are available online for free. You can easily download all the documents as PDF.

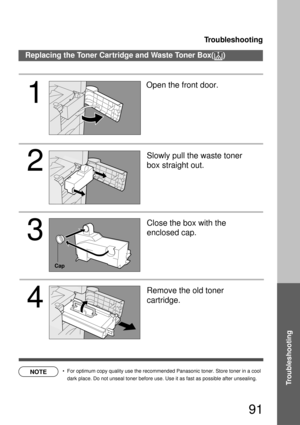

Page 91
Troubleshooting 91 Troubleshooting Replacing the Toner Cartridge and Waste Toner Box( ) Cap NOTE 2 1 3 4 Open the front door. Slowly pull the waste toner box straight out. Close the box with the enclosed cap. Remove the old toner cartridge. For optimum copy quality use the recommended Panasonic toner. Store toner in a cool dark place. Do not unseal toner before use. Use it as fast as possible after unsealing.

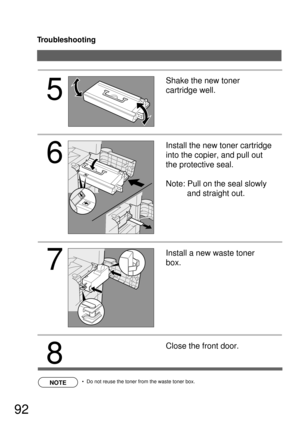

Page 92
Troubleshooting 92 NOTE 5 7 Shake the new toner cartridge well. Install the new toner cartridge into the copier, and pull out the protective seal. Note: Pull on the seal slowly and straight out. Install a new waste toner box. 8 Close the front door. Do not reuse the toner from the waste toner box. 6

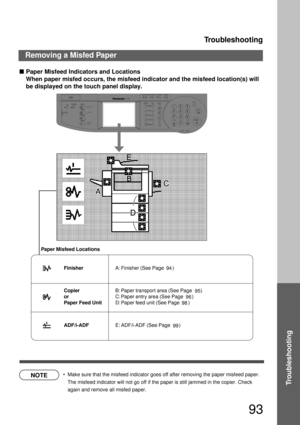

Page 93
Troubleshooting 93 Troubleshooting Removing a Misfed Paper CONTRASTLCD REDIAL /PAUSE LINE SELECTFLASH /SUB-ADDR SET ORIGINAL COPY SIZE SIZE LEDGER LEGAL INVOICELETTER LETTER MONITOR RESET STARTSTART 123 456 789 0 PQRSGHI TUVJKL ABC WXYZMNODEF STOPON LINE ON LINE DATAFAX INTERNET PRINTER MULTI-SIZE FEEDSORT ALARM ACTIVE CLEAR ENERGY SAVERDP-2500INTERRUPTFUNCTION TONETONE COPYADD TONER MON. VOL. Paper Misfeed Locations Finisher Copier or Paper Feed Unit ADF/i-ADFA: Finisher (See Page ) B: Paper...

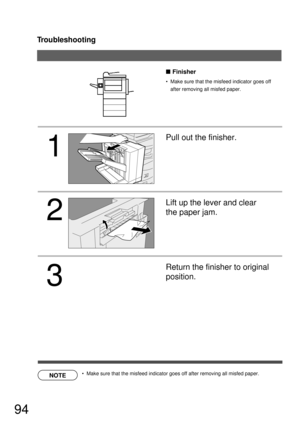

Page 94
Troubleshooting 94 NOTE 1 2 3 Finisher Pull out the finisher. Lift up the lever and clear the paper jam. Return the finisher to original position. Make sure that the misfeed indicator goes off after removing all misfed paper. Make sure that the misfeed indicator goes off after removing all misfed paper.

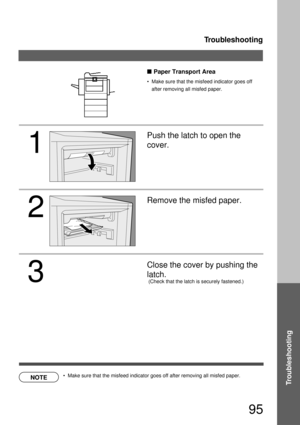

Page 95
Troubleshooting 95 Troubleshooting NOTE 1 2 3 Paper Transport Area Push the latch to open the cover. Remove the misfed paper. Close the cover by pushing the latch. (Check that the latch is securely fastened.) Make sure that the misfeed indicator goes off after removing all misfed paper. Make sure that the misfeed indicator goes off after removing all misfed paper.

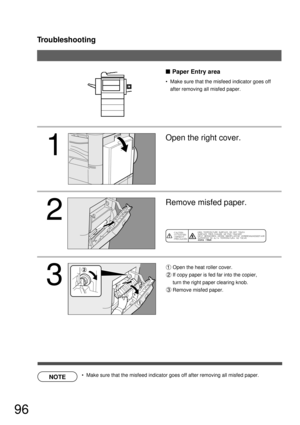

Page 96
Troubleshooting 96 NOTE 1 2 3 Open the heat roller cover. If copy paper is fed far into the copier, turn the right paper clearing knob. Remove misfed paper. Remove misfed paper. Open the right cover. Make sure that the misfeed indicator goes off after removing all misfed paper. Paper Entry area Make sure that the misfeed indicator goes off after removing all misfed paper.

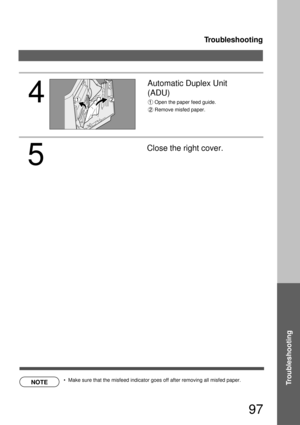

Page 97
Troubleshooting 97 TroubleshootingNOTE 4 Automatic Duplex Unit (ADU) Open the paper feed guide. Remove misfed paper. Make sure that the misfeed indicator goes off after removing all misfed paper. 5 Close the right cover.

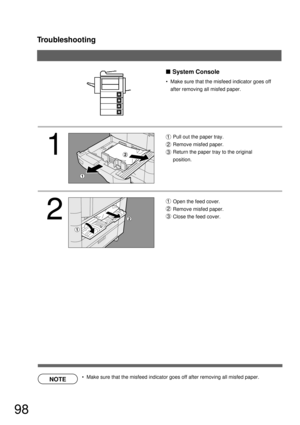

Page 98
Troubleshooting 98 NOTE 1 2 System Console Pull out the paper tray. Remove misfed paper. Return the paper tray to the original position. Open the feed cover. Remove misfed paper. Close the feed cover. Make sure that the misfeed indicator goes off after removing all misfed paper. Make sure that the misfeed indicator goes off after removing all misfed paper.

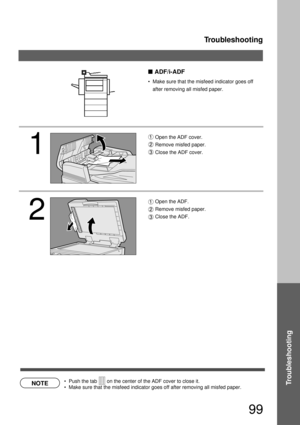

Page 99
Troubleshooting 99 TroubleshootingNOTE 1 2 ADF/i-ADF Open the ADF cover. Remove misfed paper. Close the ADF cover. Push the tab on the center of the ADF cover to close it. Make sure that the misfeed indicator goes off after removing all misfed paper. Make sure that the misfeed indicator goes off after removing all misfed paper. Open the ADF. Remove misfed paper. Close the ADF.

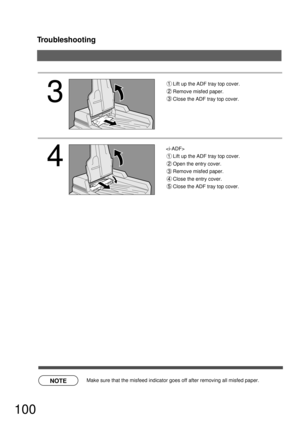

Page 100
Troubleshooting 100 NOTE 3 4 Lift up the ADF tray top cover. Remove misfed paper. Close the ADF tray top cover. Lift up the ADF tray top cover. Open the entry cover. Remove misfed paper. Close the entry cover. Close the ADF tray top cover. Make sure that the misfeed indicator goes off after removing all misfed paper.
