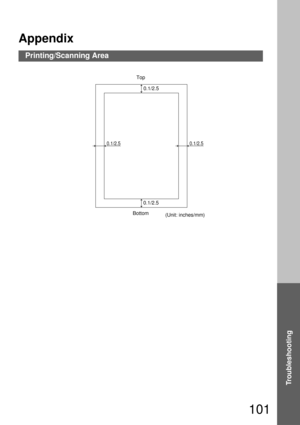

Page 101
101 Troubleshooting Appendix Printing/Scanning Area Top 0.1/2.5 0.1/2.5 0.1/2.5 Bottom (Unit: inches/mm) 0.1/2.5

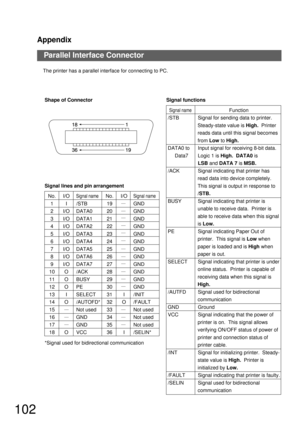

Page 102
Appendix 102 Parallel Interface Connector The printer has a parallel interface for connecting to PC. Shape of Connector Signal lines and pin arrangement *Signal used for bidirectional communication No. I/OSignal nameNo. I/OSignal name 1 I /STB 19 GND 2 I/O DATA0 20 GND 3 I/O DATA1 21 GND 4 I/O DATA2 22 GND 5 I/O DATA3 23 GND 6 I/O DATA4 24 GND 7 I/O DATA5 25 GND 8 I/O DATA6 26 GND 9 I/O DATA7 27 GND 10 O /ACK 28 GND 11 O BUSY 29 GND 12 O PE 30 GND 13 I SELECT 31 I /INIT 14 O /AUTOFD* 32 O /FAULT 15 Not...

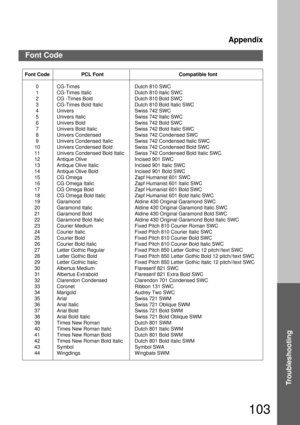

Page 103
Appendix 103 Troubleshooting Font Code Font Code 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44PCL Font CG-Times CG-Times Italic CG -Times Bold CG-Times Bold Italic Univers Univers Italic Univers Bold Univers Bold Italic Univers Condensed Univers Condensed Italic Univers Condensed Bold Univers Condensed Bold Italic Antique Olive Antique Olive Italic Antique Olive Bold CG Omega CG Omega Italic CG Omega Bold CG Omega Bold...

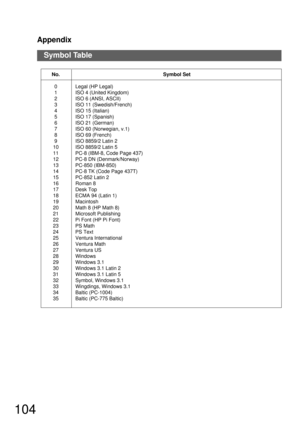

Page 104
Appendix 104 Symbol Table No. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35Symbol Set Legal (HP Legal) ISO 4 (United Kingdom) ISO 6 (ANSI, ASCII) ISO 11 (Swedish/French) ISO 15 (Italian) ISO 17 (Spanish) ISO 21 (German) ISO 60 (Norwegian, v.1) ISO 69 (French) ISO 8859/2 Latin 2 ISO 8859/2 Latin 5 PC-8 (IBM-8, Code Page 437) PC-8 DN (Denmark/Norway) PC-850 (IBM-850) PC-8 TK (Code Page 437T) PC-852 Latin 2 Roman 8 Desk Top ECMA 94 (Latin 1) Macintosh...

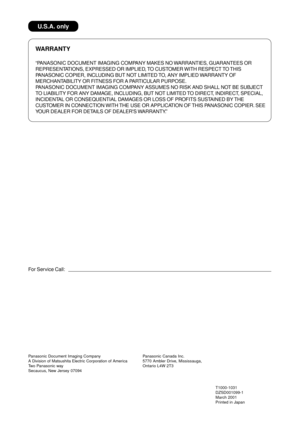

Page 105
WARRANTY “PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS PANASONIC COPIER, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. PANASONIC DOCUMENT IMAGING COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY...
