Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions

Installation and Configuration (Windows 2000)
81
Printer Section
Restore Defaults
About...

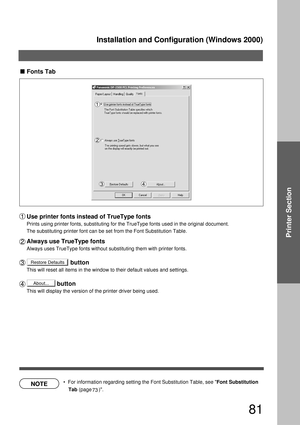

Fonts Tab
Use printer fonts instead of TrueType fonts
Prints using printer fonts, substituting for the TrueType fonts used in the original document.
The substituting printer font can be set from the Font Substitution Table.
Always use TrueType fonts
Always uses TrueType fonts without substituting them with printer fonts.
                          button
This will reset all items in the window to their default...

Installation and Configuration (Windows 2000)
82

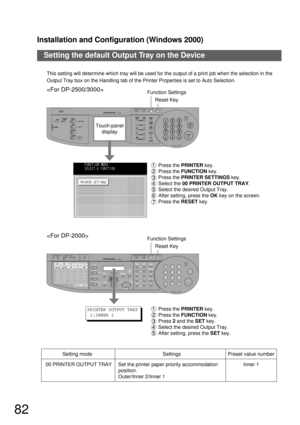

Setting the default Output Tray on the Device
REDIAL/PAUSE
ABBR FLASH/SUB-ADDR
SET ORIGINALCOPY
SIZESIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
START
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOPON LINE
ON LINE
DATA 2SIDED
COPY1SIDEDCOPY
FAX
PRINTER
MULTI-SIZE FEED
RESOLUTIONLINE SELECT
ALARMACTIVE
CLEAR
ENERGY SAVERDP-2000INTERRUPTFUNCTION
TONE
COPY
SORT
STAPLE
SHIFT
OUTPUTTRAYDIRECTORYSERCH
PAPERTRAYLIGHTERDARKER
ZOOM/VOL...

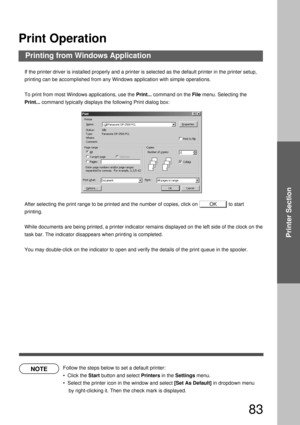

83
Printer Section
Print Operation
Printing from Windows Application
NOTE
OK
If the printer driver is installed properly and a printer is selected as the default printer in the printer setup,
printing can be accomplished from any Windows application with simple operations.
To print from most Windows applications, use the Print... command on the File menu. Selecting the
Print... command typically displays the following Print dialog box:
After selecting the print range to be printed and the number of...

Print Operation

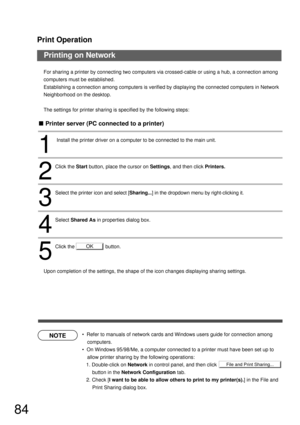

84
Printing on Network
NOTE
OK
File and Print Sharing...
For sharing a printer by connecting two computers via crossed-cable or using a hub, a connection among
computers must be established.
Establishing a connection among computers is verified by displaying the connected computers in Network
Neighborhood on the desktop.
The settings for printer sharing is specified by the following steps:
Upon completion of the settings, the shape of the icon changes displaying sharing settings.
...

Print Operation

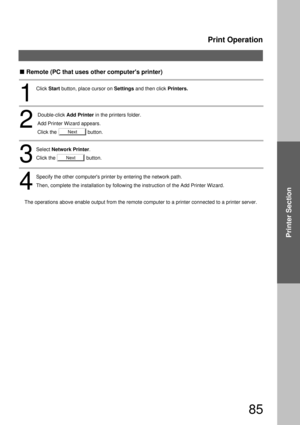

85
Printer Section
Next
Next
The operations above enable output from the remote computer to a printer connected to a printer server.
1
Click Start button, place cursor on Settings and then click Printers.
2
 Double-click Add Printer in the printers folder.
Add Printer Wizard appears.
Click the                      button.
3
Select Network Printer.
Click the                      button.
4
Specify the other computers printer by entering the network path.
Then, complete the installation by...

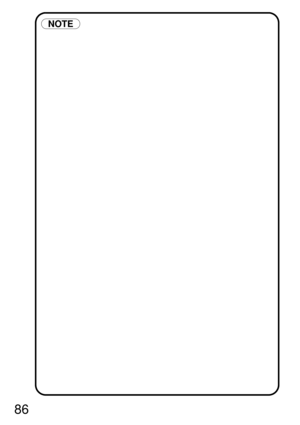

86
NOTE

87

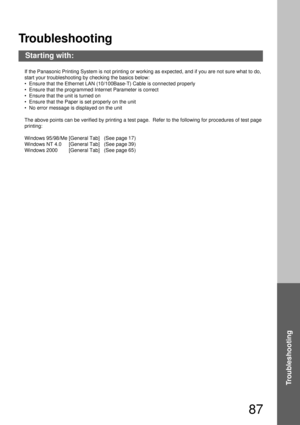

Troubleshooting
Troubleshooting
Starting with:
If the Panasonic Printing System is not printing or working as expected, and if you are not sure what to do,
start your troubleshooting by checking the basics below:
  Ensure that the Ethernet LAN (10/100Base-T) Cable is connected properly
  Ensure that the programmed Internet Parameter is correct
  Ensure that the unit is turned on
  Ensure that the Paper is set properly on the unit
  No error message is displayed on the unit
The above points can...

Troubleshooting

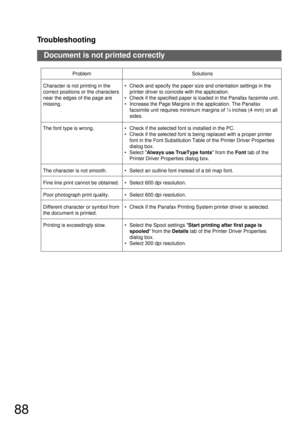

88
Document is not printed correctly
Problem
Character is not printing in the
correct positions or the characters
near the edges of the page are
missing.
The font type is wrong.
The character is not smooth.
Fine line print cannot be obtained.
Poor photograph print quality.
Different character or symbol from
the document is printed.
Printing is exceedingly slow.Solutions
Check and specify the paper size and orientation settings in the
printer driver to coincide with the application....

Troubleshooting

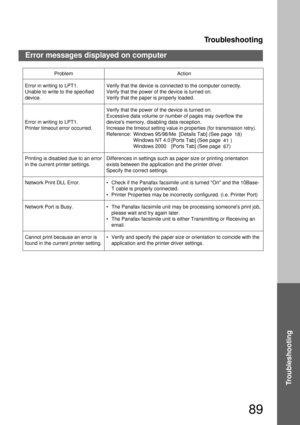

89
Troubleshooting
Error messages displayed on computer
Problem
Error in writing to LPT1.
Unable to write to the specified
device.
Error in writing to LPT1.
Printer timeout error occurred.
Printing is disabled due to an error
in the current printer settings.
Network Print DLL Error.
Network Port is Busy.
Cannot print because an error is
found in the current printer setting.Action
Verify that the device is connected to the computer correctly.
Verify that the power of the device is...

Troubleshooting

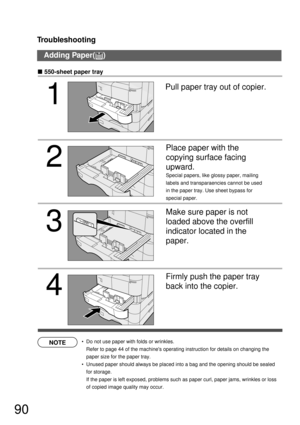

90
Adding Paper( )
NOTE
2 1
3
4
Pull paper tray out of copier.

550-sheet paper tray
Place paper with the
copying surface facing
upward.
Special papers, like glossy paper, mailing
labels and transparaencies cannot be used
in the paper tray. Use sheet bypass for
special paper.
Make sure paper is not
loaded above the overfill
indicator located in the
paper.
Firmly push the paper tray
back into the copier.
Do not use paper with folds or wrinkles.
Refer to page 44 of the machines...
