Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions

Installation and Configuration (Windows 2000)

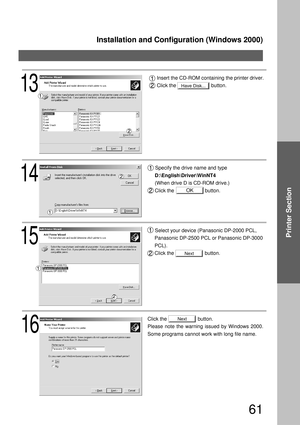

61
Printer Section
15
Select your device (Panasonic DP-2000 PCL,
Panasonic DP-2500 PCL or Panasonic DP-3000
PCL).
Click the                      button.
16
Click the                      button.
Please note the warning issued by Windows 2000.
Some programs cannot work with long file name.
14
Specify the drive name and type
D:\English\Driver\WinNT4
(When drive D is CD-ROM drive.)
Click the                      button.
Next
Next
OK
Have Disk...13
Insert...

Installation and Configuration (Windows 2000)

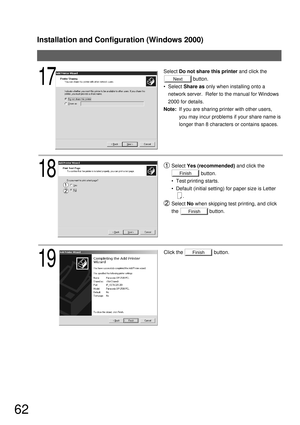

62
Finish
Select Do not share this printer and click the
                     button.
  Select Share as only when installing onto a
network server.  Refer to the manual for Windows
2000 for details.
Note:If you are sharing printer with other users,
you may incur problems if your share name is
longer than 8 characters or contains spaces.
18
19
Click the                      button.
Next17
Finish
Finish
Select Yes (recommended) and click the...

Installation and Configuration (Windows 2000)

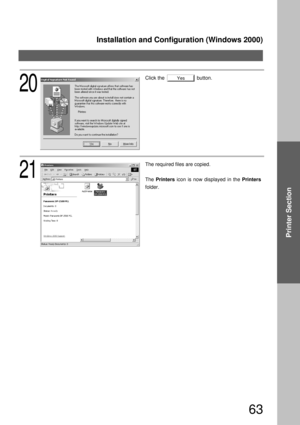

63
Printer Section
Click the                       button.
21
The required files are copied.
The Printers icon is now displayed in the Printers
folder.
Yes
20

Installation and Configuration (Windows 2000)

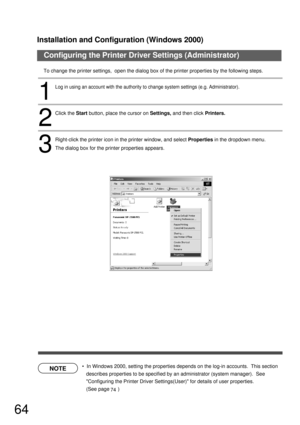

64
Configuring the Printer Driver Settings (Administrator)
NOTE
To change the printer settings,  open the dialog box of the printer properties by the following steps.
  In Windows 2000, setting the properties depends on the log-in accounts.  This section
describes properties to be specified by an administrator (system manager).  See
Configuring the Printer Driver Settings(User) for details of user properties.
(See page      )
2
Click the Start button,...

Installation and Configuration (Windows 2000)

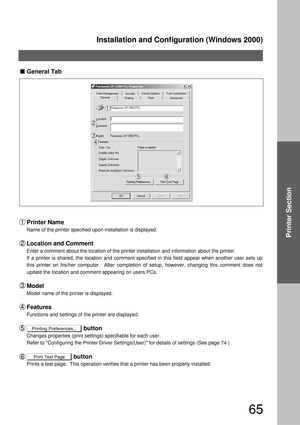

65
Printer Section
Printing Preferences...
Print Test Page
General Tab
Printer Name
Name of the printer specified upon installation is displayed.
Location and Comment
Enter a comment about the location of the printer installation and information about the printer.
If a printer is shared, the location and comment specified in this field appear when another user sets up
this printer on his/her computer.  After completion of setup, however, changing this...

Installation and Configuration (Windows 2000)
66
NOTE
Additional Drivers...

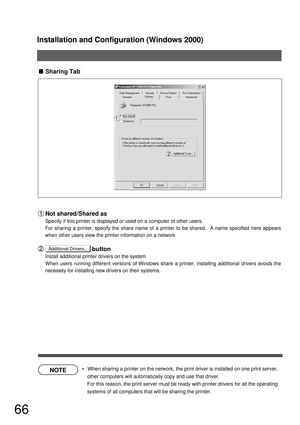

Sharing Tab
Not shared/Shared as
Specify if this printer is displayed or used on a computer of other users.
For sharing a printer, specify the share name of a printer to be shared.  A name specified here appears
when other users view the printer information on a network
                            button
Install additional printer drivers on the system.
When users running different versions of Windows share a printer,...

Installation and Configuration (Windows 2000)

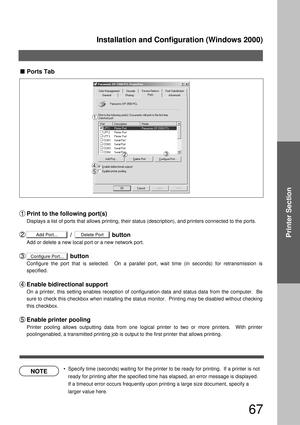

67
Printer Section
NOTE
Configure Port...
Add Port...Delete Port

Ports Tab
Print to the following port(s)
Displays a list of ports that allows printing, their status (description), and printers connected to the ports.
                          /                        button
Add or delete a new local port or a new network port.
                          button
Configure the port that is selected.  On a parallel port, wait time (in seconds) for retransmission...

Installation and Configuration (Windows 2000)

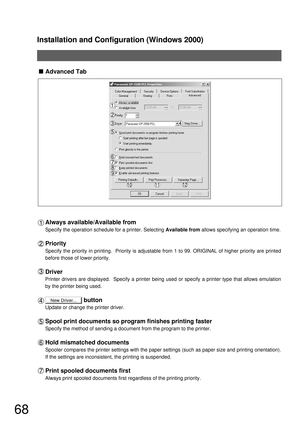

68
New Driver...

Advanced Tab
Always available/Available from
Specify the operation schedule for a printer. Selecting Available from allows specifying an operation time.
Priority
Specify the priority in printing.  Priority is adjustable from 1 to 99. ORIGINAL of higher priority are printed
before those of lower priority.
Driver
Printer drivers are displayed.  Specify a printer being used or specify a printer type that allows emulation
by the printer being...

Installation and Configuration (Windows 2000)
69
Printer Section
Printing Defaults...
Print Processor...
Separator Page...

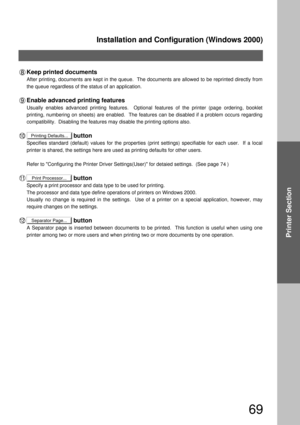

Keep printed documents
After printing, documents are kept in the queue.  The documents are allowed to be reprinted directly from
the queue regardless of the status of an application.
Enable advanced printing features
Usually enables advanced printing features.  Optional features of the printer (page ordering, booklet
printing, numbering on sheets) are enabled.  The features can be...

Installation and Configuration (Windows 2000)

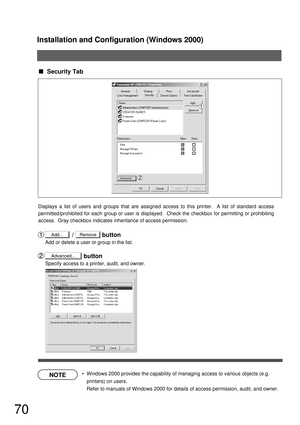

70
NOTE
Advanced...

 Security Tab
                /                 button
Add or delete a user or group in the list.
                       button
Specify access to a printer, audit, and owner. Displays a list of users and groups that are assigned access to this printer.  A list of standard access
permitted/prohibited for each group or user is displayed.  Check the checkbox for permitting or prohibiting
access.  Gray checkbox indicates inheritance of...
