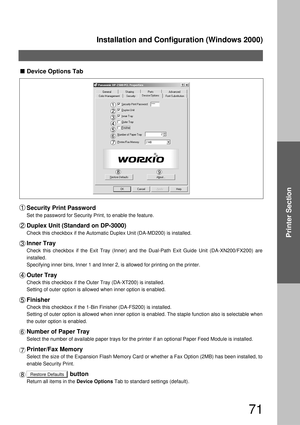

Panasonic Digital Copier DP-2000/2500/3000 Operating Instructions

Installation and Configuration (Windows 2000)
71
Printer Section
Restore Defaults

Device Options Tab
Security Print Password
Set the password for Security Print, to enable the feature.
Duplex Unit (Standard on DP-3000)
Check this checkbox if the Automatic Duplex Unit (DA-MD200) is installed.
Inner Tray
Check this checkbox if the Exit Tray (Inner) and the Dual-Path Exit Guide Unit (DA-XN200/FX200) are
installed.
Specifying inner bins, Inner 1 and Inner 2, is allowed for printing on the printer.
Outer...

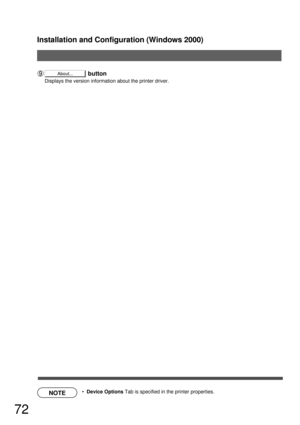

Installation and Configuration (Windows 2000)
72
About...
NOTE
                               button
Displays the version information about the printer driver.
  Device Options Tab is specified in the printer properties.

Installation and Configuration (Windows 2000)
73
Printer Section

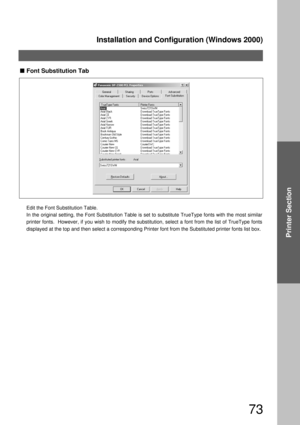

Font Substitution Tab
Edit the Font Substitution Table.
In the original setting, the Font Substitution Table is set to substitute TrueType fonts with the most similar
printer fonts.  However, if you wish to modify the substitution, select a font from the list of TrueType fonts
displayed at the top and then select a corresponding Printer font from the Substituted printer fonts list box.

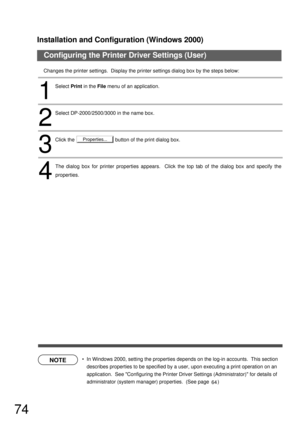

Installation and Configuration (Windows 2000)
74
Configuring the Printer Driver Settings (User)
NOTE
Properties...
Changes the printer settings.  Display the printer settings dialog box by the steps below:
  In Windows 2000, setting the properties depends on the log-in accounts.  This section
describes properties to be specified by a user, upon executing a print operation on an
application.  See Configuring the Printer Driver Settings (Administrator) for details of
administrator (system manager)...

Installation and Configuration (Windows 2000)
75
Printer Section

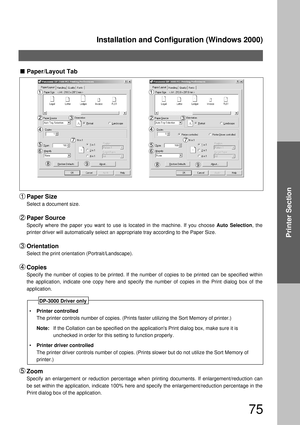

Paper/Layout Tab
Paper Size
Select a document size.
Paper Source
Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the
printer driver will automatically select an appropriate tray according to the Paper Size.
Orientation
Select the print orientation (Portrait/Landscape).
Copies
Specify the number of copies to be printed. If the number of copies to be printed can be specified within
the...

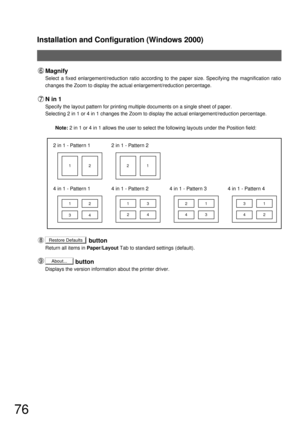

Installation and Configuration (Windows 2000)
76
2 in 1 - Pattern 12 in 1 - Pattern 2
4 in 1 - Pattern 1
12 12 21
34
4 in 1 - Pattern 3
21
43
4 in 1 - Pattern 4
31
42
4 in 1 - Pattern 2
13
24
Magnify
Select a fixed enlargement/reduction ratio according to the paper size. Specifying the magnification ratio
changes the Zoom to display the actual enlargement/reduction percentage.
N in 1
Specify the layout pattern for printing multiple documents on a single sheet of paper.
Selecting 2 in 1 or 4 in 1 changes...

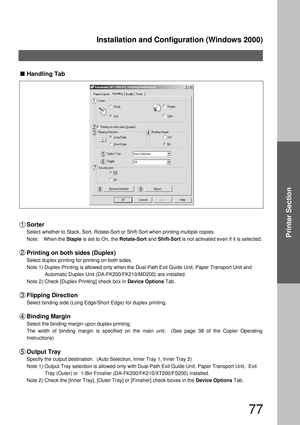

Installation and Configuration (Windows 2000)
77
Printer Section

Handling Tab
Sorter
Select whether to Stack, Sort, Rotate-Sort or Shift-Sort when printing multiple copies.
Note: When the Staple is set to On, the Rotate-Sort and Shift-Sort is not activated even if it is selected.
Printing on both sides (Duplex)
Select duplex printing for printing on both sides.
Note 1) Duplex Printing is allowed only when the Dual-Path Exit Guide Unit, Paper Transport Unit and
Automatic Duplex Unit...

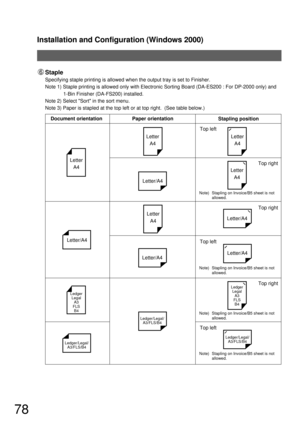

Installation and Configuration (Windows 2000)
78
Staple
Specifying staple printing is allowed when the output tray is set to Finisher.
Note 1) Staple printing is allowed only with Electronic Sorting Board (DA-ES200 : For DP-2000 only) and
1-Bin Finisher (DA-FS200) installed.
Note 2) Select Sort in the sort menu.
Note 3) Paper is stapled at the top left or at top right.  (See table below.)
Letter
A4
Letter
A4
Letter
A4
Ledger
Legal
A3
FLS
B4
Ledger
Legal
A3
FLS
B4
Letter/A4
Ledger/Legal/
A3/FLS/B4...

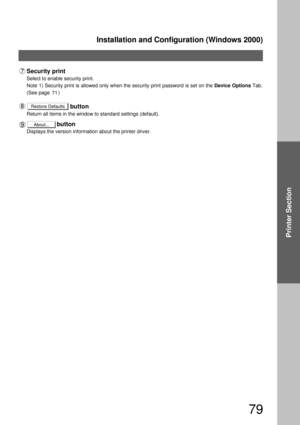

Installation and Configuration (Windows 2000)
79
Printer Section
Security print
Select to enable security print.
Note 1) Security print is allowed only when the security print password is set on the Device Options Tab.
(See page      )
                          button
Return all items in the window to standard settings (default).
                  button
Displays the version information about the printer driver.
About...
Restore Defaults
71

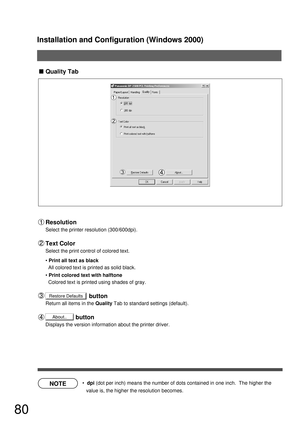

Installation and Configuration (Windows 2000)
80
NOTE
Restore Defaults
About..

Quality Tab
  dpi (dot per inch) means the number of dots contained in one inch.  The higher the
value is, the higher the resolution becomes.
Resolution
Select the printer resolution (300/600dpi).
Text Color
Select the print control of colored text.
Print all text as black
All colored text is printed as solid black.
Print colored text with halftone
Colored text is printed using shades of gray....
