Panasonic Digital Copier Dp 2500/3000 Operating Instructions

GETTING TO
KNOW YOUR
MACHINEGETTING TO KNOW YOUR MACHINE
9
External View
Power switch
After connecting all cables
and Power Cord, turn the
power switch ON.
Telephone Line Jack
Plug one end of the
telephone line cable into
the RJ-11C telephone
jack supplied by the
telephone company and
the other end into the LINE
jack on the back of the
machine. Handset
(Available as an option, see
Operating Instructions (For
Copier) page 72)
External Telephone Jack
You can connect an
additional...

GETTING TO KNOW YOUR MACHINE
10
CONTRASTLCD
REDIAL /PAUSE
LINESELECTFLASH /
SUB-ADDR
SET ORIGINAL COPY
SIZE SIZE
MONITOR
RESET
START
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOP
ON LINE
ON LINE
DATA
FAX
INTERNET
PRINTER
MULTI-SIZEFEEDSORT
ALARM ACTIVE
CLEAR
ENERGY SAVER
DP-3000
INTERRUPTFUNCTION
TONE
COPY
ADD TONER
MON. VOL.

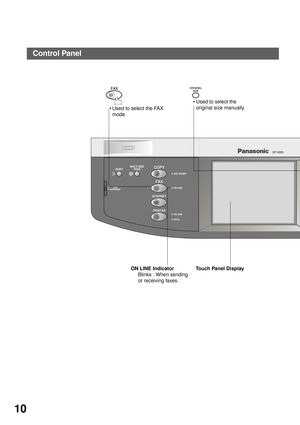

Control Panel

Used to select the FAX
mode.
Used to select the
original size manually.
ON LINE Indicator
Blinks : When sending
or receiving faxes.Touch Panel Display

GETTING TO KNOW YOUR MACHINEGETTING TO
KNOW YOUR
MACHINE
11

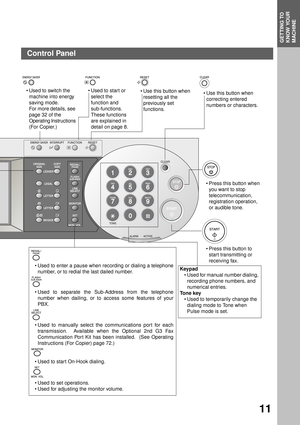

Control Panel
[8]
Pow e r s av e
CONTRASTLCD
REDIAL/PAUSE
LINESELECTFLASH/
SUB-ADDR
SET ORIGINALCOPY
SIZESIZE
LEDGER
LEGAL
INVOICELETTER
LETTER
MONITOR
RESET
START
123
456
789
0
PQRSGHI
TUVJKL ABC
WXYZMNODEF
STOP
ON LINE
ON LINE
DATA
FAX
INTERNET
PRINTER
MULTI-SIZEFEEDSORT
ALARMACTIVE
CLEAR
ENERGY SAVER
DP-3000
INTERRUPTFUNCTION
TONE
COPY
ADD TONER
MON. VOL.
Used to enter a pause when recording or dialing a telephone
number, or to redial the...

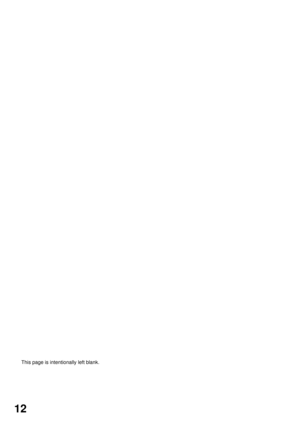

This page is intentionally left blank.
GETTING TO KNOW YOUR MACHINE
12

INSTALLING
YOUR MACHINE
13
Installing Your Machine

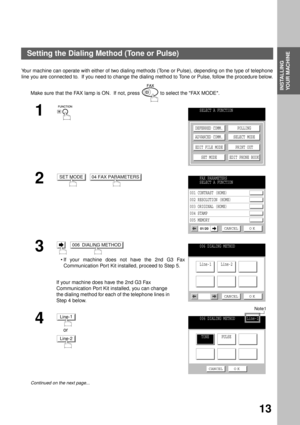

Setting the Dialing Method (Tone or Pulse)
Your machine can operate with either of two dialing methods (Tone or Pulse), depending on the type of telephone
line you are connected to.  If you need to change the dialing method to Tone or Pulse, follow the procedure below.
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1

2
3
If your machine does not have the 2nd G3 Fax
Communication Port Kit installed, proceed to Step...

INSTALLING YOUR MACHINE
14

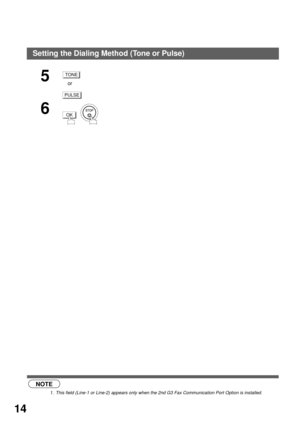

Setting the Dialing Method (Tone or Pulse)
 (see Note 1)
5
    or
6

NOTE
1. This field (Line-1 or Line-2) appears only when the 2nd G3 Fax Communication Port Option is installed.
TONE
PULSE
OK

INSTALLING YOUR MACHINE
INSTALLING
YOUR MACHINE
15

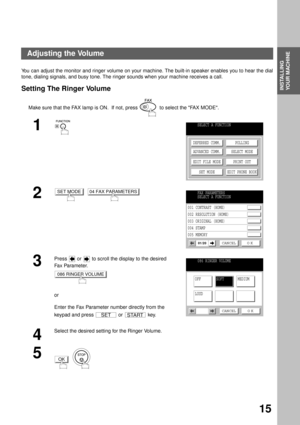

Adjusting the Volume
You can adjust the monitor and ringer volume on your machine. The built-in speaker enables you to hear the dial
tone, dialing signals, and busy tone. The ringer sounds when your machine receives a call.
Setting The Ringer Volume
Make sure that the FAX lamp is ON.  If not, press    to select the FAX MODE.
1

2
3
Press   or   to scroll the display to the desired
Fa x Pa ra m e t e r.
or
Enter the Fax Parameter number directly...

INSTALLING YOUR MACHINE
16

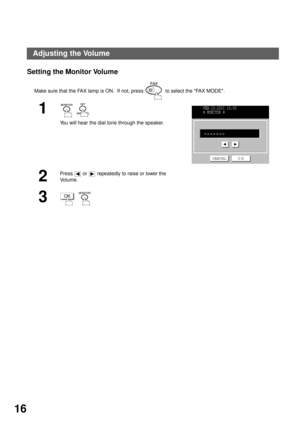

Setting the Monitor Volume
Make sure that the FAX lamp is ON.  If not, press    to select the FAX MODE.
1
You will hear the dial tone through the speaker.
2
Press   or   repeatedly to raise or lower the
Vo l u m e .
3
FEB-15-2001 15:00
  MONITOR
>>>>>>>
CANCEL O K
OK
Adjusting the Volume

INSTALLING YOUR MACHINE
INSTALLING
YOUR MACHINE
17

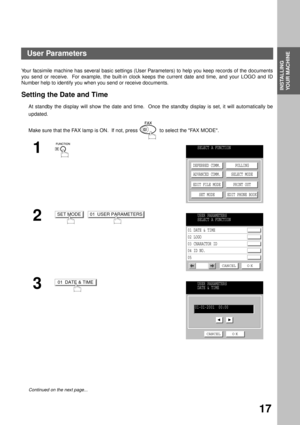

User Parameters
Your facsimile machine has several basic settings (User Parameters) to help you keep records of the documents
you send or receive.  For example, the built-in clock keeps the current date and time, and your LOGO and ID
Number help to identify you when you send or receive documents.
Setting the Date and Time
At standby the display will show the date and time.  Once the standby display is set, it will automatically be
updated.
Make sure...

INSTALLING YOUR MACHINE
18
      (see Note 1)
4
Enter the new date and time.
Ex:Month : February
Date : 15th
Year : 2001
Time : 3:00 PM
If you make a mistake, use   or   to move the cursor
over the incorrect number, then overwrite it with a
correct one.
5

NOTE
1. The current Date & Time must be set because it is required by the Telephone Consumer Act of 1991. (For details,
see FCC NOTICE at the end of these Operating Instructions)
02
15
2001
1500
USER PARAMETERS
DATE & TIME
02-15-2001  15:00
CANCEL...
