Panasonic Digital Copier Dp 2500/3000 Operating Instructions

BASIC OPERATIONS
BASIC
OPERATIONS

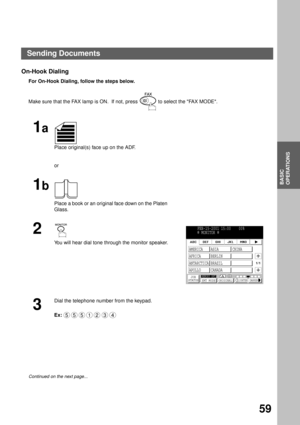

59
On-Hook Dialing
For On-Hook Dialing, follow the steps below.
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
2
You will hear dial tone through the monitor speaker.
3
Dial the telephone number from the keypad.
Ex:
Continued on the next page...
FEB-15-2001 15:00    00%
  MONITOR
JOB
STATUSMEMORY XMTXMT MODE ORIGINALLIGHTER DARKER
1/1...

BASIC OPERATIONS

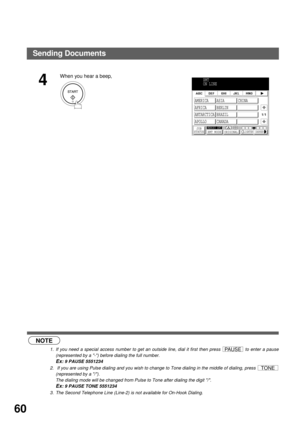

60
 (see Note 1) (see Note 2)        (see Note 3)
4
When you hear a beep,
NOTE
1. If you need a special access number to get an outside line, dial it first then press   to enter a pause
(represented by a -) before dialing the full number.
Ex: 9 PAUSE 5551234
2.  If you are using Pulse dialing and you wish to change to Tone dialing in the middle of dialing, press
(represented by a /).
The dialing mode will be changed from Pulse to Tone after dialing the digit /.
Ex: 9 PAUSE TONE 5551234...

BASIC OPERATIONS
BASIC
OPERATIONS
61

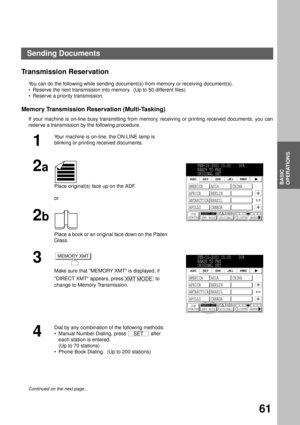

Transmission Reservation
You can do the following while sending document(s) from memory or receiving document(s).
Reserve the next transmission into memory.  (Up to 50 different files)
Reserve a priority transmission.
Memory Transmission Reservation (Multi-Tasking)
If your machine is on-line busy transmitting from memory, receiving or printing received documents, you can
reserve a transmission by the following procedure.
1
Your machine is on-line, the ON LINE lamp...

BASIC OPERATIONS

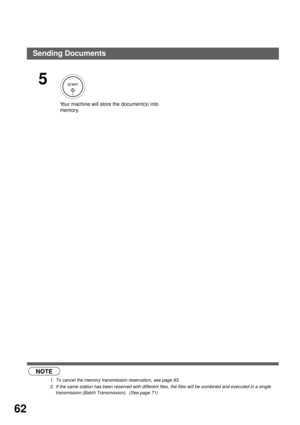

62
 (see Note 1)     (see Note 2)
5
Your machine will store the document(s) into
memory.
NOTE
1. To cancel the memory transmission reservation, see page 93.
2. If the same station has been reserved with different files, the files will be combined and executed in a single
transmission (Batch Transmission).  (See page 71)
Sending Documents

BASIC OPERATIONS
BASIC
OPERATIONS
63

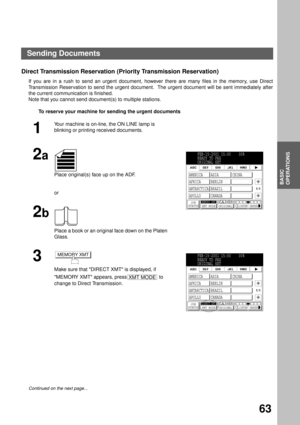

Direct Transmission Reservation (Priority Transmission Reservation)
If you are in a rush to send an urgent document, however there are many files in the memory, use Direct
Transmission Reservation to send the urgent document.  The urgent document will be sent immediately after
the current communication is finished.
Note that you cannot send document(s) to multiple stations.
To reserve your machine for sending the urgent documents
1
Your machine is on-line, the ON LINE...

BASIC OPERATIONS

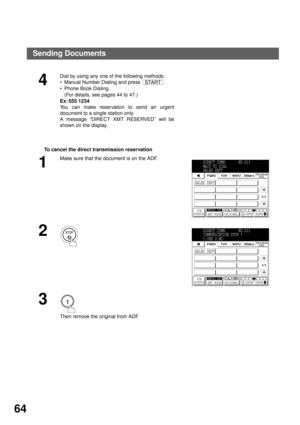

64
To cancel the direct transmission reservation
4
Dial by using any one of the following methods:
Manual Number Dialing and press  .
Phone Book Dialing.
(For details, see pages 44 to 47.)
Ex: 555 1234
You can make reservation to send an urgent
document to a single station only.
A message “DIRECT XMT RESERVED” will be
shown on the display.
1
Make sure that the document is on the ADF.
2
3

Then remove the original from ADF.
START
DIRECT COMM.     NO.013
WAIT TO DIAL
SALES DEPT
SALES...

BASIC OPERATIONS
BASIC
OPERATIONS

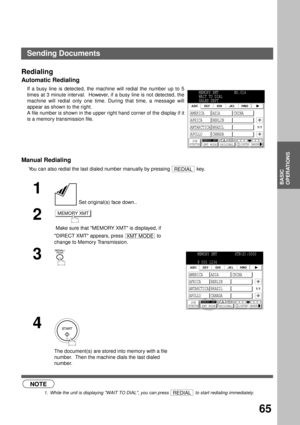

65
Redialing
Automatic Redialing
Manual Redialing (see Note 1)
You can also redial the last dialed number manually by pressing   key. If a busy line is detected, the machine will redial the number up to 5
times at 3 minute interval.  However, if a busy line is not detected, the
machine will redial only one time. During that time, a message will
appear as shown to the right.
A file number is shown in the upper right hand corner of the display if it
is a memory...

BASIC OPERATIONS

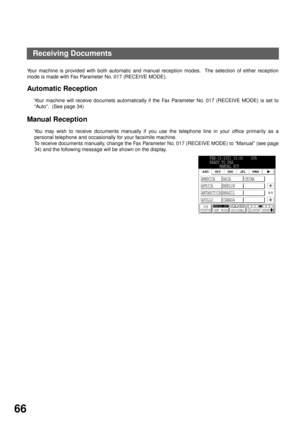

66
Receiving Documents
Your machine is provided with both automatic and manual reception modes.  The selection of either reception
mode is made with Fax Parameter No. 017 (RECEIVE MODE).
Automatic Reception
Your machine will receive documets automatically if the Fax Parameter No. 017 (RECEIVE MODE) is set to
“Auto”.  (See page 34)
Manual Reception
You may wish to receive documents manually if you use the telephone line in your office primarily as a
personal telephone and occasionally...

BASIC OPERATIONS
BASIC
OPERATIONS

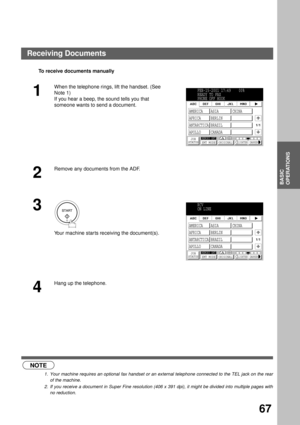

67
To receive documents manually
  (see Note 1)   (see Note 2)
R
1
When the telephone rings, lift the handset. (See
Note 1)
If you hear a beep, the sound tells you that
someone wants to send a document.
2
Remove any documents from the ADF.
3

Your machine star ts receiving the document(s).
4
Hang up the telephone.
NOTE
1. Your machine requires an optional fax handset or an external telephone connected to the TEL jack on the rear
of the machine.
2. If you receive a...

BASIC OPERATIONS

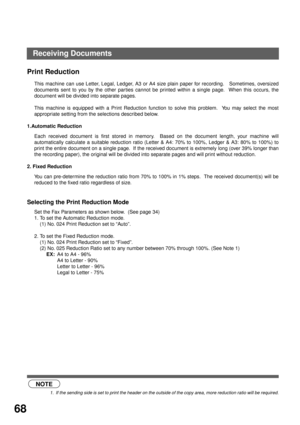

68
Print Reduction
This machine can use Letter, Legal, Ledger, A3 or A4 size plain paper for recording.   Sometimes, oversized
documents sent to you by the other par ties cannot be printed within a single page.  When this occurs, the
document will be divided into separate pages.
This machine is equipped with a Print Reduction function to solve this problem.  You may select the most
appropriate setting from the selections described below.
1.Automatic Reduction
Each received document is...
