BASIC OPERATIONS
BASIC
OPERATIONS
49
 (see Note 1) (see Note 2) (see Note 3)
4

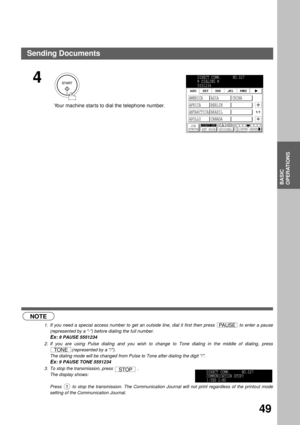

Your machine star ts to dial the telephone number.
NOTE
1. If you need a special access number to get an outside line, dial it first then press   to enter a pause
(represented by a -) before dialing the full number.
Ex: 9 PAUSE 5551234
2. If you are using Pulse dialing and you wish to change to Tone dialing in the middle of dialing, press
(represented by a /).
The dialing mode will be changed from Pulse to Tone after dialing...

BASIC OPERATIONS
50

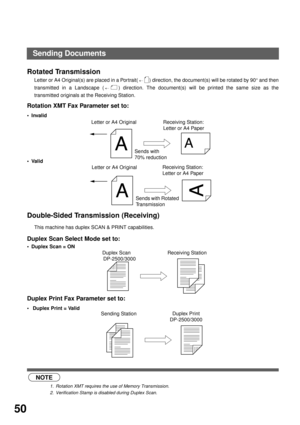

Rotated Transmission
Letter or A4 Original(s) are placed in a Portrait( ) direction, the document(s) will be rotated by 90° and then
transmitted in a Landscape ( ) direction. The document(s) will be printed the same size as the
transmitted originals at the Receiving Station.
Rotation XMT Fax Parameter set to:
• Invalid
Valid
Double-Sided Transmission (Receiving)
This machine has duplex SCAN & PRINT capabilities. (see Note 1) (see Note 2)
Duplex Scan Select Mode set to:
Duplex Scan...

BASIC OPERATIONS
BASIC
OPERATIONS
51

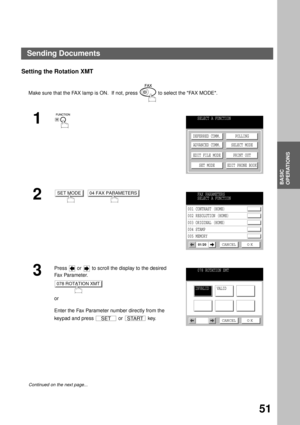

Setting the Rotation XMT
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1
2

3
Press   or   to scroll the display to the desired
Fa x Pa ra m e t e r.
or
Enter the Fax Parameter number directly from the
keypad and press   or   key.
Continued on the next page...
SELECT A FUNCTION
DEFERRED COMM.
ADVANCED COMM.
EDIT FILE MODE
SET MODEPOLLING
SELECT MODE
PRINT OUT
EDIT PHONE BOOK
SET MODE04 FAX PARAMETERSFAX PARAMETERS
SELECT A FUNCTION...

BASIC OPERATIONS
52
4
5

VALID
OK

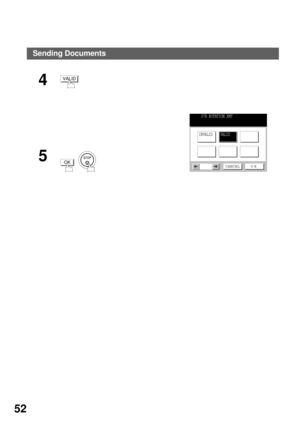

Sending Documents
078 ROTATION XMT
INVALIDVALID
CANCEL O K

BASIC OPERATIONS
BASIC
OPERATIONS
53

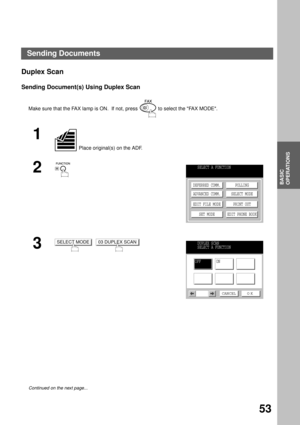

Duplex Scan
Sending Document(s) Using Duplex Scan
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1
 Place original(s) on the ADF.
2
3

Continued on the next page...
SELECT A FUNCTION
DEFERRED COMM.
ADVANCED COMM.
EDIT FILE MODE
SET MODEPOLLING
SELECT MODE
PRINT OUT
EDIT PHONE BOOK
SELECT MODE03 DUPLEX SCANDUPLEX SCAN
SELECT A FUNCTION
OFFON
CANCEL O K
Sending Documents

BASIC OPERATIONS
54
 (see Note 1)      (see Note 2)
4
5

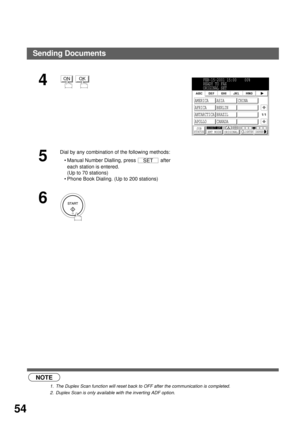

Dial by any combination of the following methods:
Manual Number Dialling, press   after
each station is entered.
(Up to 70 stations)
Phone Book Dialing. (Up to 200 stations)
6
NOTE
1. The Duplex Scan function will reset back to OFF after the communication is completed.
2. Duplex Scan is only available with the inverting ADF option.
ONOKFEB-15-2001 15:00    00%
READY TO FAX
ORIGINAL SET
JOB
STATUSDIRECT XMTXMT MODE ORIGINALLIGHTER DARKER
1/1...

BASIC OPERATIONS
BASIC
OPERATIONS
55

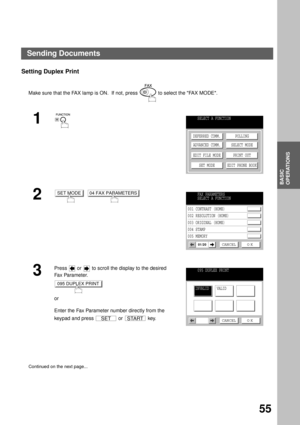

Setting Duplex Print
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1
2

3
Press   or   to scroll the display to the desired
Fa x Pa ra m e t e r.
or
Enter the Fax Parameter number directly from the
keypad and press   or   key.
Continued on the next page...
SELECT A FUNCTION
DEFERRED COMM.
ADVANCED COMM.
EDIT FILE MODE
SET MODEPOLLING
SELECT MODE
PRINT OUT
EDIT PHONE BOOK
SET MODE04 FAX PARAMETERSFAX PARAMETERS
SELECT A FUNCTION
001...

BASIC OPERATIONS
56

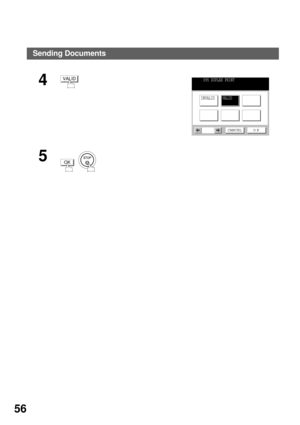

4
5

VALID095 DUPLEX PRINT
INVALIDVALID
CANCEL O K
OK
Sending Documents

BASIC OPERATIONS
BASIC
OPERATIONS
57

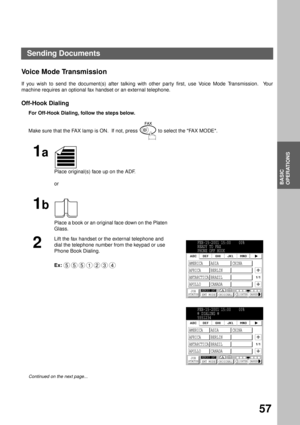

Voice Mode Transmission
If you wish to send the document(s) after talking with other party first, use Voice Mode Transmission.  Your
machine requires an optional fax handset or an external telephone.
Off-Hook Dialing
For Off-Hook Dialing, follow the steps below.
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
2
Lift the fax handset...

BASIC OPERATIONS
58
 (see Note 1)      (see Note 2)
3

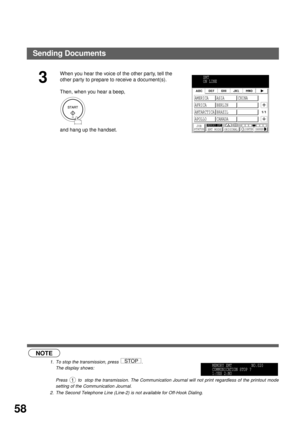

When you hear the voice of the other par ty, tell the
other party to prepare to receive a document(s).
Then, when you hear a beep,
and hang up the handset.
NOTE
1. To stop the transmission, press  .
The display shows:
Press   to  stop the transmission. The Communication Journal will not print regardless of the printout mode
setting of the Communication Journal.
2. The Second Telephone Line (Line-2) is not available for Off-Hook Dialing.
XMT
ON LINE...
