Panasonic Digital Copier Dp 2500/3000 Operating Instructions

APPENDIX
APPENDIX

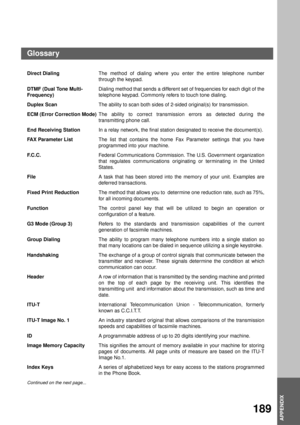

189
Direct DialingThe method of dialing where you enter the entire telephone number
through the keypad.
DTMF (Dual Tone Multi-
Frequency)Dialing method that sends a different set of frequencies for each digit of the
telephone keypad. Commonly refers to touch tone dialing.
Duplex ScanThe ability to scan both sides of 2-sided original(s) for transmission.
ECM (Error Correction Mode)The ability to correct transmission errors as detected during the
transmitting phone call.
End Receiving...

APPENDIX
190
Individual Transmission
JournalA report that is printed by the transmitting unit stating information regarding
the last document transaction.
Industry Canada (D.O.C)Depar tment of Communications. The Canadian Government organization
that regulates communications originating or terminating in Canada.
Information CodeA code that is internally generated by your Fax machine stating a specific
operational error or machine failure.
Initial Sending StationIn a relay network, the station that is...

APPENDIX
APPENDIX

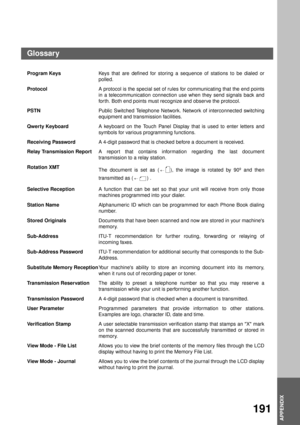

191
Program KeysKeys that are defined for storing a sequence of stations to be dialed or
polled.
ProtocolA protocol is the special set of rules for communicating that the end points
in a telecommunication connection use when they send signals back and
for th. Both end points must recognize and observe the protocol.
PSTNPublic Switched Telephone Network. Network of interconnected switching
equipment and transmission facilities.
Qwerty KeyboardA keyboard on the Touch Panel Display that is...

APPENDIX
192

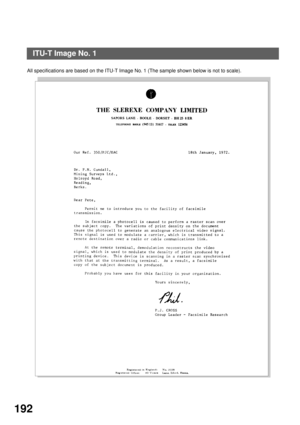

ITU-T Image No. 1
All specifications are based on the ITU-T Image No. 1 (The sample shown below is not to scale).

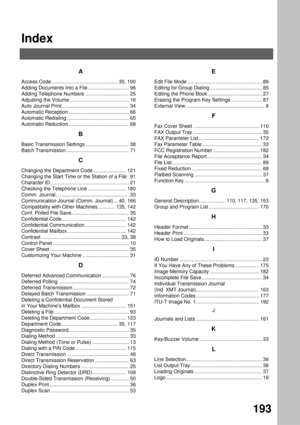

Index
193
A
Access Code ............................................... 35, 100
Adding Documents Into a File ............................. 96
Adding Telephone Numbers ............................... 25
Adjusting the Volume .......................................... 16
Auto Journal Print................................................ 34
Automatic Reception ........................................... 66
Automatic Redialing ............................................ 65
Automatic Reduction...

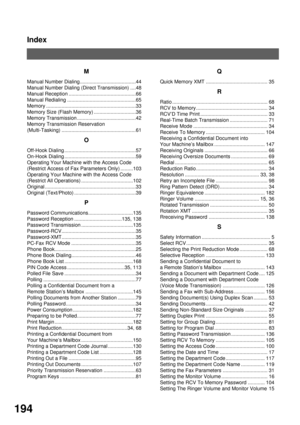

Index
194
M
Manual Number Dialing........................................44
Manual Number Dialing (Direct Transmission) ....48
Manual Reception ................................................66
Manual Redialing .................................................65
Memory ................................................................33
Memory Size (Flash Memory) ..............................36
Memory Transmission ..........................................42
Memory Transmission Reservation...

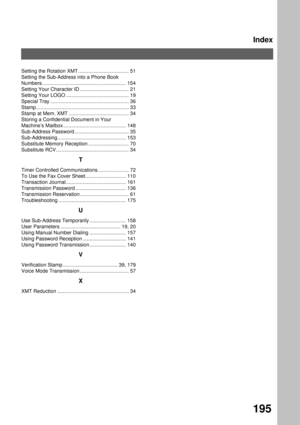

Index
195
Setting the Rotation XMT .................................... 51
Setting the Sub-Address into a Phone Book
Numbers............................................................ 154
Setting Your Character ID ................................... 21
Setting Your LOGO ............................................. 19
Special Tray ........................................................ 36
Stamp .................................................................. 33
Stamp at Mem. XMT...

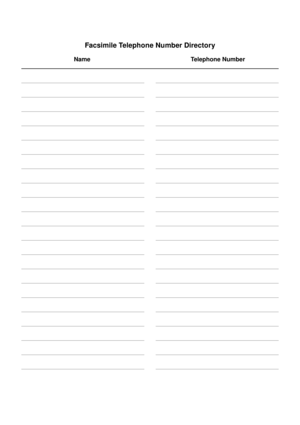

Facsimile Telephone Number Directory
Name Telephone Number

WARRANTY
“PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR
REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS
PANASONIC COPIER, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
PANASONIC DOCUMENT IMAGING COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT
TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY...
