Panasonic Digital Copier Dp 2500/3000 Operating Instructions

PROBLEM SOLVING
PROBLEM
SOLVING
179

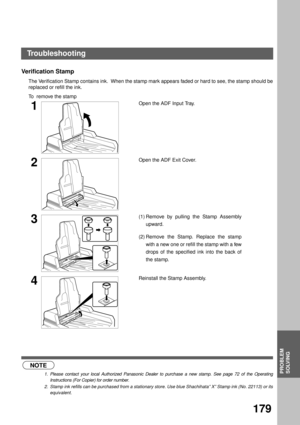

Verification Stamp
The Verification Stamp contains ink.  When the stamp mark appears faded or hard to see, the stamp should be
replaced or refill the ink.
To  remove the stamp
 (see Note 1)    (see Note 2)
1Open the ADF Input Tray.
2Open the ADF Exit Cover.
3(1) Remove by pulling the Stamp Assembly
upward.
(2) Remove the Stamp. Replace the stamp
with a new one or refill the stamp with a few
drops of the specified ink into the back of
the stamp.
4Reinstall the Stamp...

PROBLEM SOLVING
180
Checking the Telephone Line
If you do not hear a dial tone when the   key is pressed or the incoming call does not ring on your
machine (No automatic receive).
1Unplug the Telephone Line Cable from the
telephone jack that was supplied by the
telephone company.
2Plug a different regular telephone into the
same telephone jack.
3Check for dial tone through the handset.  If
there is still no dial tone, repor t it to your local
telephone company.
or
Call from another telephone to this...

APPENDIX
181
Appendix

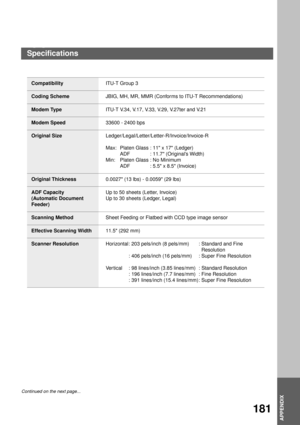

Specifications
CompatibilityITU-T Group 3
Coding SchemeJBIG, MH, MR, MMR (Conforms to ITU-T Recommendations)
Modem TypeITU-T V.34, V.17, V.33, V.29, V.27ter and V.21
Modem Speed33600 - 2400 bps
Original SizeLedger/Legal/Letter/Letter-R/Invoice/Invoice-R
Max:  Platen Glass : 11 x 17 (Ledger)
ADF : 11.7 (Original’s Width)
Min:  Platen Glass : No Minimum
ADF  : 5.5 x 8.5 (Invoice)
Original Thickness0.0027 (13 lbs) - 0.0059 (29 lbs)
ADF Capacity
(Automatic Document
Feeder)Up to 50...

APPENDIX
182

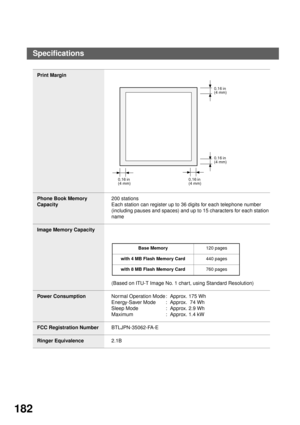

Print Margin
Phone Book Memory
Capacity200 stations
Each station can register up to 36 digits for each telephone number
(including pauses and spaces) and up to 15 characters for each station
name
Image Memory Capacity
(Based on ITU-T Image No. 1 char t, using Standard Resolution)
Power ConsumptionNormal Operation Mode : Approx. 175 Wh
Energy-Saver Mode : Approx.  74 Wh
Sleep Mode : Approx. 2.9 Wh
Maximum : Approx. 1.4 kW
FCC Registration NumberBTLJPN-35062-FA-E
Ringer Equivalence2.1B...

APPENDIX
APPENDIX
183
Options and Supplies
The DP-2500/3000 is a digital photocopier which can produce images with great clarity. Furthermore, its copying
functionality can also be greatly enhanced by the addition of specially selected options and supplies.
For a list of available options and supplies, see the Operating Instructions (For Copier) pages 71 and 72.

APPENDIX
184
FCC Notice for User in USA
WARNING!
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the Operating Guide, may cause harmful interference to...

APPENDIX
APPENDIX
185

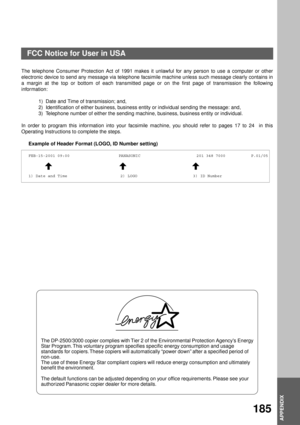

The telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other
electronic device to send any message via telephone facsimile machine unless such message clearly contains in
a margin at the top or bottom of each transmitted page or on the first page of transmission the following
information:
1) Date and Time of transmission; and,
2) Identification of either business, business entity or individual sending the message: and,
3) Telephone number...

APPENDIX
186

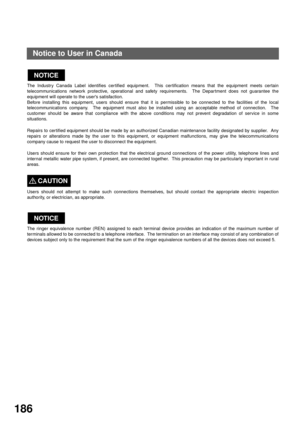

Notice to User in Canada
The Industry Canada Label identifies certified equipment.  This certification means that the equipment meets certain
telecommunications network protective, operational and safety requirements.  The Department does not guarantee the
equipment will operate to the users satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local
telecommunications company.  The equipment must also be installed...

APPENDIX
APPENDIX
187
Létiquette de Industrie Canada identifie le matériel homologué.  Cette étiquette certifie que le matériel est conforme à
certaines normes de protection, dexploitation et de sécurité des réseaux de télécommunications.  Le Ministère nassure
toutefois pas que le matériel fonctionnera à la satisfaction de lutilisateur.  Avant dinstaller ce matériel, lutilisateur doit
sassurer quil est permis de le raccorder aux installations de lentreprise locale de télécommunication.  Le matériel doit...

APPENDIX
188

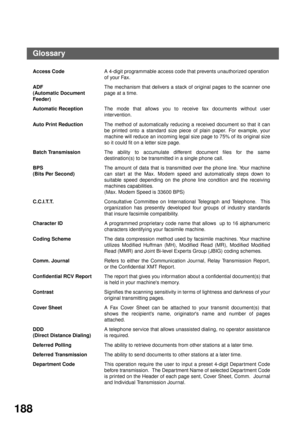

Glossary
Access CodeA 4-digit programmable access code that prevents unauthorized operation
of your Fax.
ADF
(Automatic Document
Feeder)The mechanism that delivers a stack of original pages to the scanner one
page at a time.
Automatic ReceptionThe mode that allows you to receive fax documents without user
intervention.
Auto Print ReductionThe method of automatically reducing a received document so that it can
be printed onto a standard size piece of plain paper. For example, your
machine...
