Panasonic Digital Imaging System Dp1810f Fax Operating Instructions

User Parameters
21
Installing Your
Machine

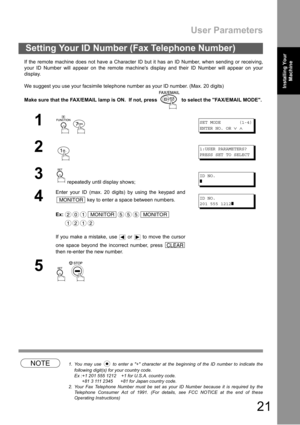

If the remote machine does not have a Character ID but it has an ID Number, when sending or receiving,
your ID Number will appear on the remote machines display and their ID Number will appear on your
display.
We suggest you use your facsimile telephone number as your ID number. (Max. 20 digits)
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. You may use   to enter a + character at the beginning of the ID number to...

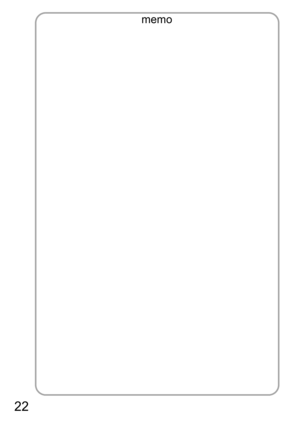

memo
22

23
Programming
Your Machine
Programming Your Machine
One-Touch/Abbreviated Dialing Numbers
One-Touch and Abbreviated Dialing are two fast ways of dialing full telephone numbers. To use these
dialing methods, you must first store the telephone number using the following procedure or use the
Configuration Editor included with the Panasonic Document Management System application.

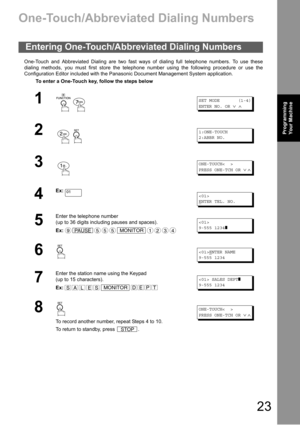

Entering One-Touch/Abbreviated Dialing Numbers
To enter a One-Touch key, follow the steps below
1

SET MODE (1-4)
ENTER NO. OR...

One-Touch/Abbreviated Dialing Numbers
24
Entering One-Touch/Abbreviated Dialing Numbers
NOTE1. If you require a special access number to get an outside line, enter it first and then press
. A hyphen - is displayed for pause.
2. Use   to enter a space between the numbers to make it easier to read.
3. If you are using Pulse dialing and you wish to change to Tone dialing in the middle of dialing,
press   (represented by a/). The dialing method will be changed from Pulse to Tone
after dialing the digit /....

One-Touch/Abbreviated Dialing Numbers
25
Programming
Your Machine

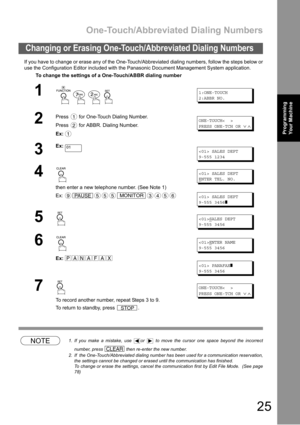

If you have to change or erase any of the One-Touch/Abbreviated dialing numbers, follow the steps below or
use the Configuration Editor included with the Panasonic Document Management System application.
NOTE1. If you make a mistake, use  or   to move the cursor one space beyond the incorrect
number, press   then re-enter the new number.
2. If  the One-Touch/Abbreviated dialing number has been used for a communication reservation,
the...

One-Touch/Abbreviated Dialing Numbers
26

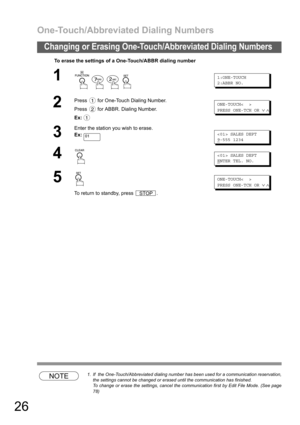

Changing or Erasing One-Touch/Abbreviated Dialing Numbers
NOTE1. If  the One-Touch/Abbreviated dialing number has been used for a communication reservation,
the settings cannot be changed or erased until the communication has finished.
To change or erase the settings, cancel the communication first by Edit File Mode. (See page
78)
To erase the settings of a One-Touch/ABBR dialing number
1

1:ONE-TOUCH
2:ABBR NO.
2
Press   for One-Touch Dialing Number.
Press...

One-Touch/Abbreviated Dialing Numbers
27
Programming
Your Machine

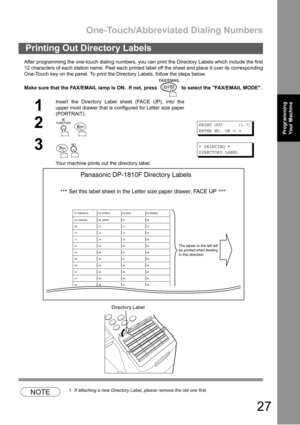

After programming the one-touch dialing numbers, you can print the Directory Labels which include the first
12 characters of each station name. Peel each printed label off the sheet and place it over its corresponding
One-Touch key on the panel. To print the Directory Labels, follow the steps below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. If attaching a new Directory Label, please...

28

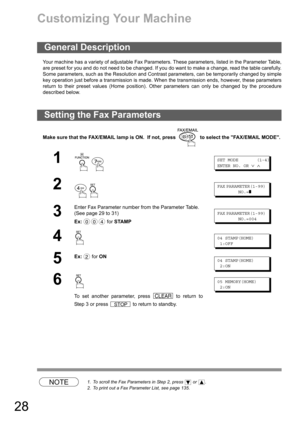

Customizing Your Machine
Your machine has a variety of adjustable Fax Parameters. These parameters, listed in the Parameter Table,
are preset for you and do not need to be changed. If you do want to make a change, read the table carefully.
Some parameters, such as the Resolution and Contrast parameters, can be temporarily changed by simple
key operation just before a transmission is made. When the transmission ends, however, these parameters
return to their preset values (Home position). Other...

Customizing Your Machine
29
Programming
Your Machine

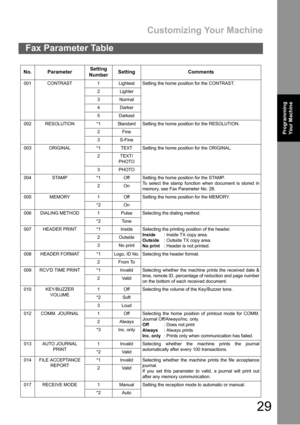

Fax Parameter Table
No. ParameterSetting
NumberSetting Comments
001 CONTRAST 1 Lightest Setting the home position for the CONTRAST.
2 Lighter
3Normal
4Darker
5 Darkest
002 RESOLUTION *1 Standard Setting the home position for the RESOLUTION.
2Fine
3S-Fine
003 ORIGINAL *1 TEXT Setting the home position for the ORIGINAL.
2 TEXT/
3PHOTO
004 STAMP *1 Off Setting the home position for the STAMP.
To select the stamp function when document is stored...

Customizing Your Machine
30

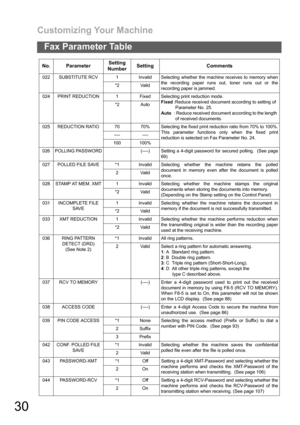

Fax Parameter Table
022 SUBSTITUTE RCV 1 Invalid Selecting whether the machine receives to memory when
the recording paper runs out, toner runs out or the
recording paper is jammed. *2 Valid
024 PRINT REDUCTION 1 Fixed Selecting print reduction mode.
Fixed:Reduce received document according to setting of
Parameter No. 25.
Auto: Reduce received document according to the length
of received documents. *2 Auto
025 REDUCTION RATIO 70 70% Selecting the fixed print reduction ratio...
