Panasonic Digital Imaging System Dp1810f Fax Operating Instructions

Sending Documents
51
Basic Operations

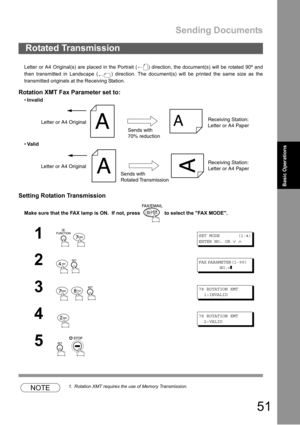

Letter or A4 Original(s) are placed in the Portrait ( ) direction, the document(s) will be rotated 90º and
then transmitted in Landscape ( ) direction. The document(s) will be printed the same size as the
transmitted originals at the Receiving Station.
Rotation XMT Fax Parameter set to:
Invalid
Valid
Setting Rotation Transmission
Make sure that the FAX lamp is ON.  If not, press   to select the FAX MODE.
NOTE1. Rotation XMT requires the use of Memory Transmission....

Sending Documents
52

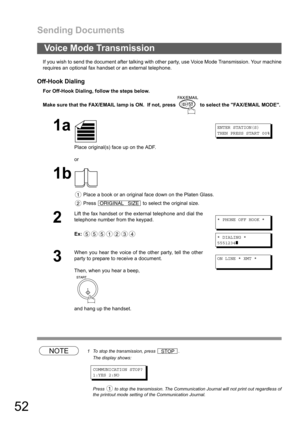

If you wish to send the document after talking with other party, use Voice Mode Transmission. Your machine
requires an optional fax handset or an external telephone.
Off-Hook Dialing
For Off-Hook Dialing, follow the steps below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1 To stop the transmission, press  .
The display shows:
COMMUNICATION STOP?
1:YES 2:NO
Press   to stop the transmission. The Communication Journal will not print out...

Sending Documents
53
Voice Mode Transmission
Basic Operations

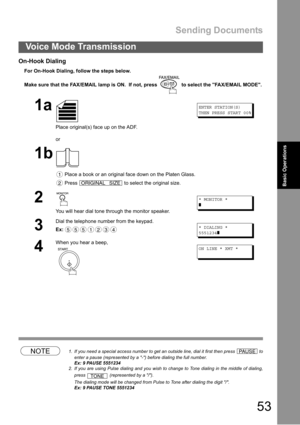

On-Hook Dialing
For On-Hook Dialing, follow the steps below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. If you need a special access number to get an outside line, dial it first then press   to
enter a pause (represented by a -) before dialing the full number.
Ex: 9 PAUSE 5551234
2. If you are using Pulse dialing and you wish to change to Tone dialing in the middle of dialing,
press...

Sending Documents
54

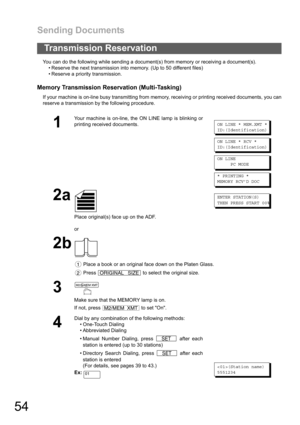

You can do the following while sending a document(s) from memory or receiving a document(s).
 Reserve the next transmission into memory. (Up to 50 different files)
 Reserve a priority transmission.
Memory Transmission Reservation (Multi-Tasking)
If your machine is on-line busy transmitting from memory, receiving or printing received documents, you can
reserve a transmission by the following procedure.
Transmission Reservation
1
Your machine is on-line, the ON LINE lamp is blinking...

Sending Documents
55
Transmission Reservation
Basic Operations

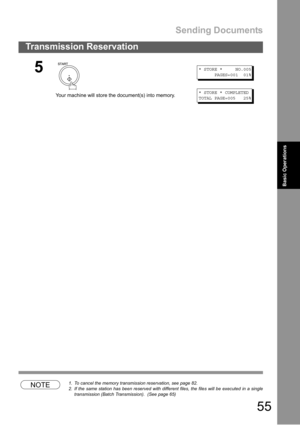

NOTE1. To cancel the memory transmission reservation, see page 82.
2. If the same station has been reserved with different files, the files will be executed in a single
transmission (Batch Transmission).  (See page 65)
5
Your machine will store the document(s) into memory.
* STORE * NO.005
PAGES=001 01%
* STORE * COMPLETED
TOTAL PAGE=005 25%

Sending Documents
56
Transmission Reservation

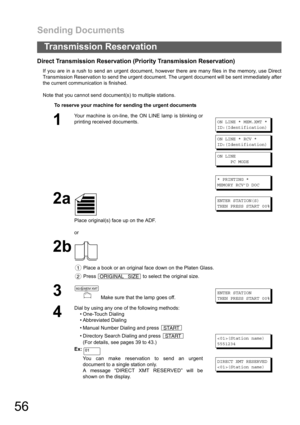

Direct Transmission Reservation (Priority Transmission Reservation)
If you are in a rush to send an urgent document, however there are many files in the memory, use Direct
Transmission Reservation to send the urgent document. The urgent document will be sent immediately after
the current communication is finished.
Note that you cannot send document(s) to multiple stations.
To reserve your machine for sending the urgent documents
1
Your machine is on-line, the...

Sending Documents
57
Transmission Reservation
Basic Operations

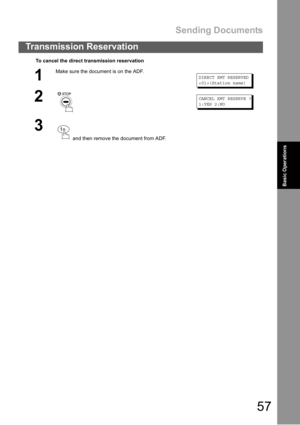

To cancel the direct transmission reservation
1
Make sure the document is on the ADF.
DIRECT XMT RESERVED
(Station name)
2CANCEL XMT RESERVE ?
1:YES 2:NO
3
 and then remove the document from ADF.
.

Sending Documents
58

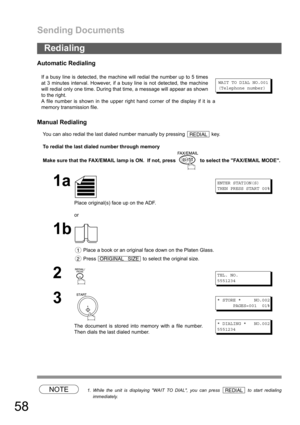

Automatic Redialing
Manual Redialing
You can also redial the last dialed number manually by pressing   key.
To redial the last dialed number through memory
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. While the unit is displaying WAIT TO DIAL, you can press   to start redialing
immediately.
Redialing
If a busy line is detected, the machine will redial the number up to 5 times
at 3 minutes interval. However, if a busy line is not...

Sending Documents
59
Redialing
Basic Operations
NOTE1. While the unit is displaying WAIT TO DIAL, you can press   to start redialing
immediately.

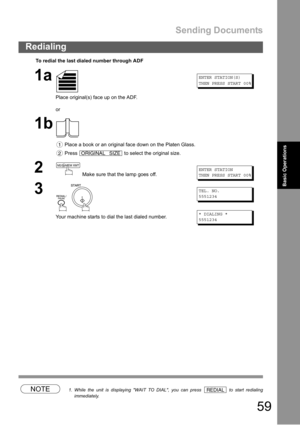

To redial the last dialed number through ADF
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the original size.
2 Make sure that the lamp goes off.ENTER STATION
THEN PRESS START 00%
3

Your machine starts to dial the last dialed number.
TEL. NO....

60

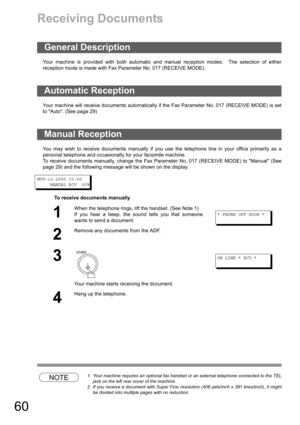

Receiving Documents
Your machine is provided with both automatic and manual reception modes.  The selection of either
reception mode is made with Fax Parameter No. 017 (RECEIVE MODE).
Your machine will receive documents automatically if the Fax Parameter No. 017 (RECEIVE MODE) is set
to Auto. (See page 29)
You may wish to receive documents manually if you use the telephone line in your office primarily as a
personal telephone and occasionally for your facsimile machine.
To receive documents manually,...
