Panasonic Digital Imaging System Dp1810f Fax Operating Instructions

Customizing Your Machine
31

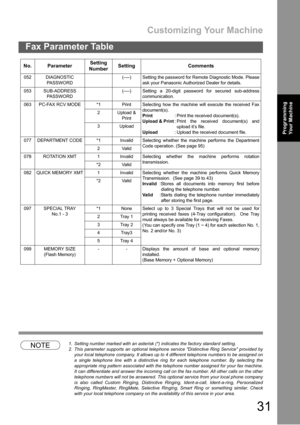

Fax Parameter Table
Programming
Your Machine
NOTE1. Setting number marked with an asterisk (*) indicates the factory standard setting.
2. This parameter supports an optional telephone service Distinctive Ring Service provided by
your local telephone company. It allows up to 4 different telephone numbers to be assigned on
a single telephone line with a distinctive ring for each telephone number. By selecting the
appropriate ring pattern associated with the telephone number...

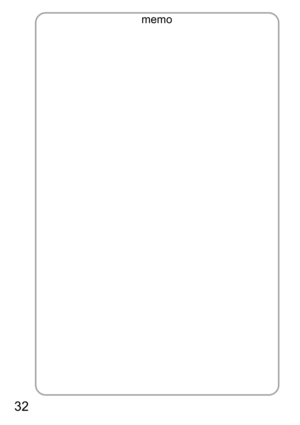

memo
32

33

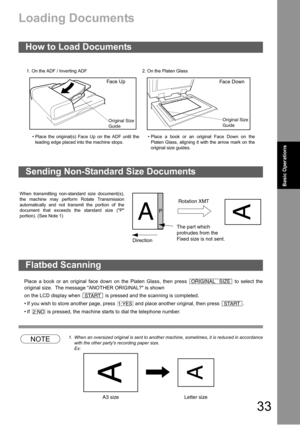

Basic Operations
Basic Operations
Loading Documents
Place a book or an original face down on the Platen Glass, then press   to select the
original size.  The message ANOTHER ORIGINAL? is shown
on the LCD display when   is pressed and the scanning is completed.
 If you wish to store another page, press   and place another original, then press  .
 If   is pressed, the machine starts to dial the telephone number.
NOTE1. When an oversized original is sent to another machine, sometimes, it is reduced in...

34

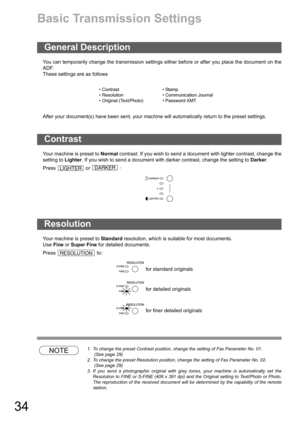

Basic Transmission Settings
You can temporarily change the transmission settings either before or after you place the document on the
ADF.
These settings are as follows
After your document(s) have been sent, your machine will automatically return to the preset settings.
Your machine is preset to Normal contrast. If you wish to send a document with lighter contrast, change the
setting to Lighter. If you wish to send a document with darker contrast, change the setting to Darker.
Press  or  :
Your...

Basic Transmission Settings
35
Basic Operations

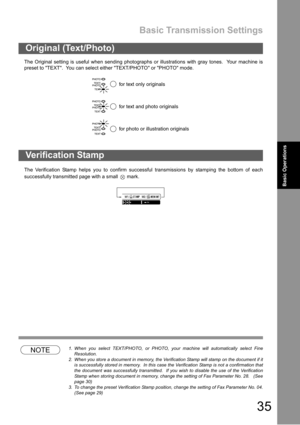

The Original setting is useful when sending photographs or illustrations with gray tones.  Your machine is
preset to TEXT.  You can select either TEXT/PHOTO or PHOTO mode.
The Verification Stamp helps you to confirm successful transmissions by stamping the bottom of each
successfully transmitted page with a small   mark.
NOTE1. When you select TEXT/PHOTO, or PHOTO, your machine will automatically select Fine
Resolution.
2. When you store a document in...

Basic Transmission Settings
36

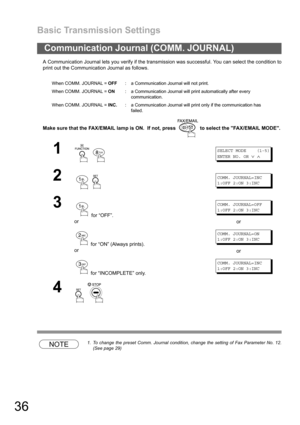

A Communication Journal lets you verify if the transmission was successful. You can select the condition to
print out the Communication Journal as follows.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. To change the preset Comm. Journal condition, change the setting of Fax Parameter No. 12.
(See page 29)
Communication Journal (COMM. JOURNAL)
When COMM. JOURNAL = OFF: a Communication Journal will not print.
When COMM. JOURNAL...

37
Basic Operations

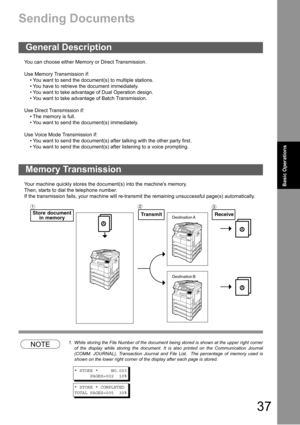

Sending Documents
You can choose either Memory or Direct Transmission.
Use Memory Transmission if:
 You want to send the document(s) to multiple stations.
 You have to retrieve the document immediately.
 You want to take advantage of Dual Operation design.
 You want to take advantage of Batch Transmission.
Use Direct Transmission if:
 The memory is full.
 You want to send the document(s) immediately.
Use Voice Mode Transmission if:
 You want to send the document(s) after...

Sending Documents
38
Memory Transmission

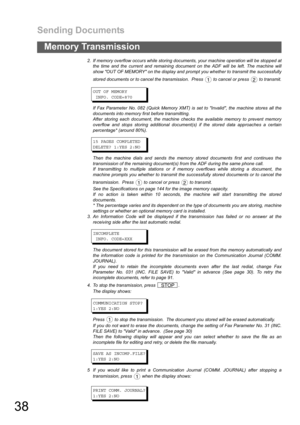

2. If memory overflow occurs while storing documents, your machine operation will be stopped at
the time and the current and remaining document on the ADF will be left. The machine will
show OUT OF MEMORY on the display and prompt you whether to transmit the successfully
stored documents or to cancel the transmission.  Press   to cancel or press   to transmit.
OUTOFMEMORY
INFO. CODE=870
If Fax Parameter No. 082 (Quick Memory XMT) is set to Invalid, the machine...

Sending Documents
39
Memory Transmission
Basic Operations

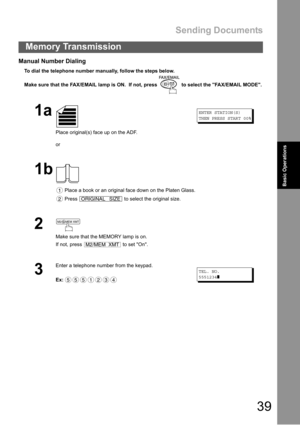

Manual Number Dialing
To dial the telephone number manually, follow the steps below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the original size.
2
Make sure that the MEMORY lamp is on.
If not, press   to set On.
3
Enter a telephone number...

Sending Documents
40
Memory Transmission

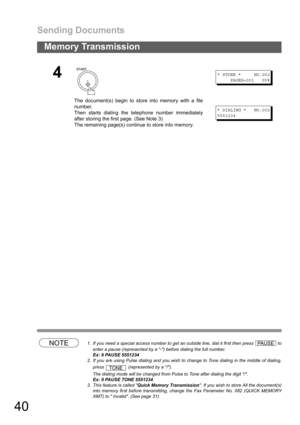

NOTE1. If you need a special access number to get an outside line, dial it first then press   to
enter a pause (represented by a -) before dialing the full number.
Ex: 9 PAUSE 5551234
2. If you are using Pulse dialing and you wish to change to Tone dialing in the middle of dialing,
press   (represented by a /).
The dialing mode will be changed from Pulse to Tone after dialing the digit /.
Ex: 9 PAUSE TONE 5551234
3. This feature is called Quick Memory...
