Panasonic Digital Imaging System Dp1810f Fax Operating Instructions

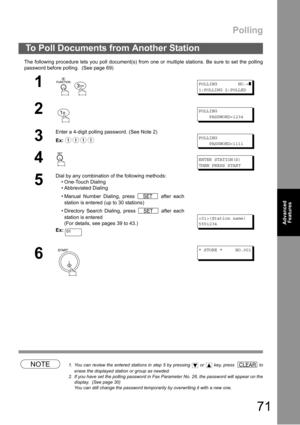

Polling
71
Advanced
Features
The following procedure lets you poll document(s) from one or multiple stations. Be sure to set the polling
password before polling.  (See page 69)
NOTE1. You can review the entered stations in step 5 by pressing   or   key, press   to
erase the displayed station or group as needed.
2. If you have set the polling password in Fax Parameter No. 26, the password will appear on the
display.  (See page 30)
You can still change the password temporarily by overwriting it with a...

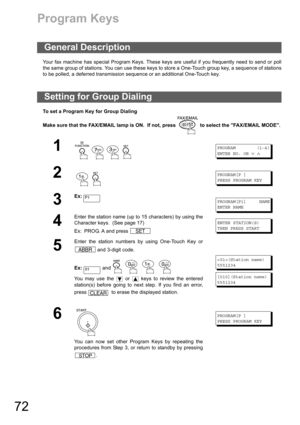

72
Program Keys
Your fax machine has special Program Keys. These keys are useful if you frequently need to send or poll
the same group of stations. You can use these keys to store a One-Touch group key, a sequence of stations
to be polled, a deferred transmission sequence or an additional One-Touch key.
To set a Program Key for Group Dialing
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
General Description
Setting for Group Dialing
1

PROGRAM (1-4)
ENTER NO....

Program Keys

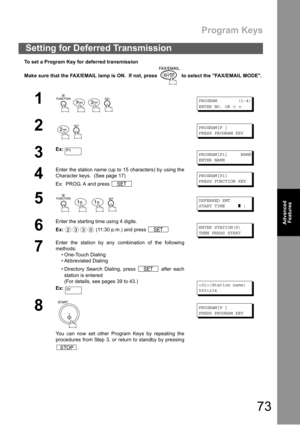

73
Advanced
Features
To set a Program Key for deferred transmission
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
Setting for Deferred Transmission
1

PROGRAM (1-4)
ENTER NO. OR
∨∧
2

PROGRAM[P ]
PRESS PROGRAM KEY
3
Ex:PROGRAM[P1] NAME
ENTER NAME
4
Enter the station name (up to 15 characters) by using the
Character keys.  (See page 17)
Ex:  PROG. A and press
PROGRAM[P1]
PRESS FUNCTION KEY
5

DEFERRED XMT
START TIME
❚:
6
Enter the starting...

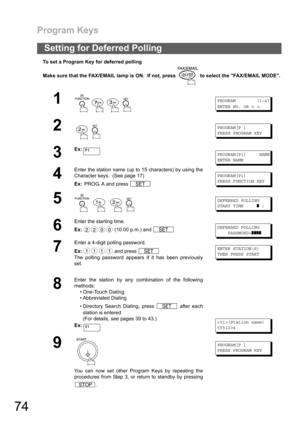

Program Keys
74
To set a Program Key for deferred polling
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
Setting for Deferred Polling
1

PROGRAM (1-4)
ENTER NO. OR
∨∧
2

PROGRAM[P ]
PRESS PROGRAM KEY
3
Ex:PROGRAM[P1] NAME
ENTER NAME
4
Enter the station name (up to 15 characters) by using the
Character keys.  (See page 17)
Ex: PROG. A and press
PROGRAM[P1]
PRESS FUNCTION KEY
5

DEFERRED POLLING
START TIME
❚:
6
Enter the starting time.
Ex: (10:00 p.m.) and...

Program Keys
75
Advanced
Features

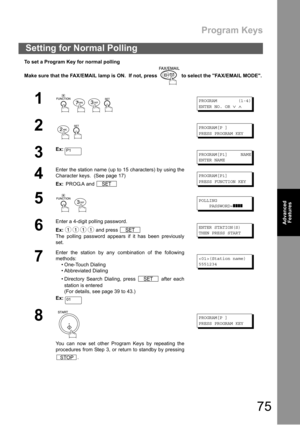

To set a Program Key for normal polling
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
Setting for Normal Polling
1

PROGRAM (1-4)
ENTER NO. OR
∨∧
2

PROGRAM[P ]
PRESS PROGRAM KEY
3
Ex:PROGRAM[P1] NAME
ENTER NAME
4
Enter the station name (up to 15 characters) by using the
Character keys.  (See page 17)
Ex: PROG.A and
PROGRAM[P1]
PRESS FUNCTION KEY
5

POLLING
PASSWORD=
❚❚❚❚
6
Enter a 4-digit polling password.
Ex: and press...

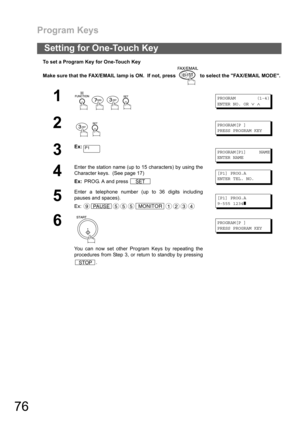

Program Keys
76
To set a Program Key for One-Touch Key
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
Setting for One-Touch Key
1

PROGRAM (1-4)
ENTER NO. OR
∨∧
2

PROGRAM[P ]
PRESS PROGRAM KEY
3
Ex:
PROGRAM[P1] NAME
ENTER NAME
4
Enter the station name (up to 15 characters) by using the
Character keys.  (See page 17)
Ex: PROG. A and press
[P1] PROG.A
ENTER TEL. NO.
5
Enter a telephone number (up to 36 digits including
pauses and spaces).
Ex:
[P1] PROG.A...

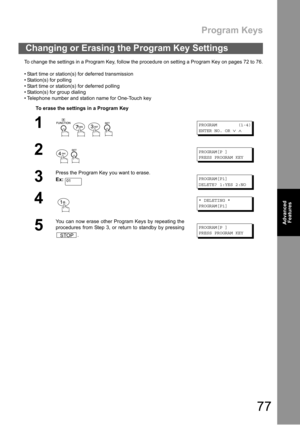

Program Keys
77
Advanced
Features
To change the settings in a Program Key, follow the procedure on setting a Program Key on pages 72 to 76.
 Start time or station(s) for deferred transmission
 Station(s) for polling
 Start time or station(s) for deferred polling
 Station(s) for group dialing
 Telephone number and station name for One-Touch key
Changing or Erasing the Program Key Settings
To erase the settings in a Program Key
1

PROGRAM (1-4)
ENTER NO. OR
∨∧
2

PROGRAM[P ]
PRESS PROGRAM KEY
3...

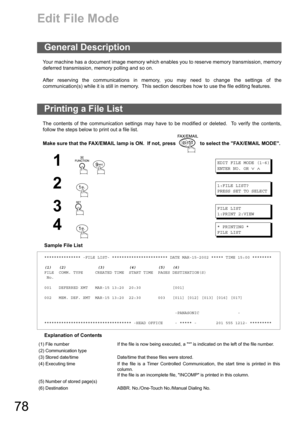

78
Edit File Mode
Your machine has a document image memory which enables you to reserve memory transmission, memory
deferred transmission, memory polling and so on.
After reserving the communications in memory, you may need to change the settings of the
communication(s) while it is still in memory.  This section describes how to use the file editing features.
The contents of the communication settings may have to be modified or deleted.  To verify the contents,
follow the steps below to print out a file...

Edit File Mode
79
Advanced
Features

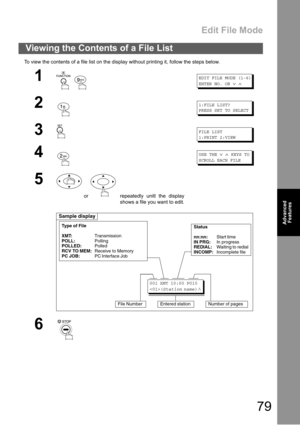

To view the contents of a file list on the display without printing it, follow the steps below.
Viewing the Contents of a File List
1

EDIT FILE MODE (1-6)
ENTER NO. OR
∨∧
21:FILE LIST?
PRESS SET TO SELECT
3FILE LIST
1:PRINT 2:VIEW
4USE THE∨∧KEYS TO
SCROLL EACH FILE
5
 or  repeatedly unitl the display
shows a file you want to edit.
6
.
Sample display
Type of File
XMT:Transmission
POLL:Polling
POLLED:Polled
RCV TO MEM:Receive to Memory
PC JOB:PC Interface JobStatus...

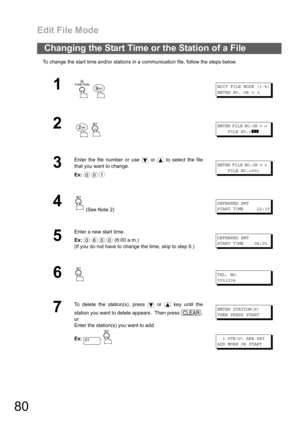

Edit File Mode
80
To change the start time and/or stations in a communication file, follow the steps below.
Changing the Start Time or the Station of a File
1

EDIT FILE MODE (1-6)
ENTER NO. OR
∨∧
2

ENTER FILE NO.OR∨∧
FILE NO.=❚❚❚
3
Enter the file number or use   or   to select the file
that you want to change.
Ex:ENTER FILE NO.OR∨∧
FILE NO.=001
4 (See Note 2)
DEFERRED XMT
START TIME 22:30
5
Enter a new start time.
Ex: (6:00 a.m.)
(If you do not have to change the time, skip to step 6.)
DEFERRED XMT...
