Panasonic Digital Imaging System Dp1810f Fax Operating Instructions

Sending Documents
41
Memory Transmission
Basic Operations

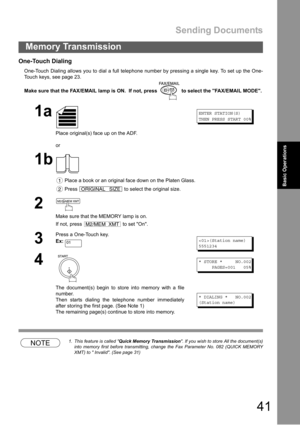

One-Touch Dialing
One-Touch Dialing allows you to dial a full telephone number by pressing a single key. To set up the One-
Touch keys, see page 23.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. This feature is called Quick Memory Transmission. If you wish to store All the document(s)
into memory first before transmitting, change the Fax Parameter No. 082 (QUICK MEMORY
XMT) to  Invalid. (See page...

Sending Documents
42
Memory Transmission

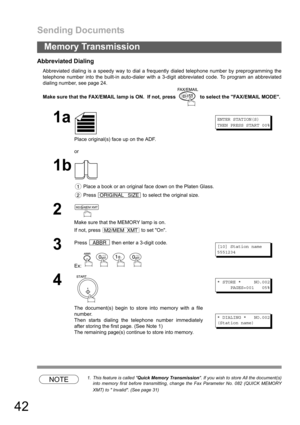

Abbreviated Dialing
Abbreviated dialing is a speedy way to dial a frequently dialed telephone number by preprogramming the
telephone number into the built-in auto-dialer with a 3-digit abbreviated code. To program an abbreviated
dialing number, see page 24.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. This feature is called Quick Memory Transmission. If you wish to store All the document(s)
into memory first before...

Sending Documents
43
Memory Transmission
Basic Operations

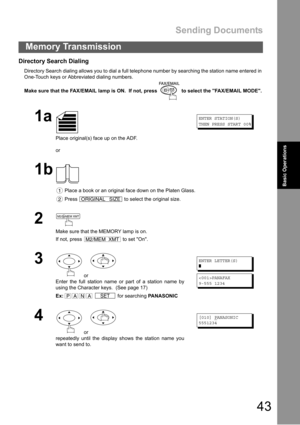

Directory Search Dialing
Directory Search dialing allows you to dial a full telephone number by searching the station name entered in
One-Touch keys or Abbreviated dialing numbers.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the original...

Sending Documents
44
Memory Transmission

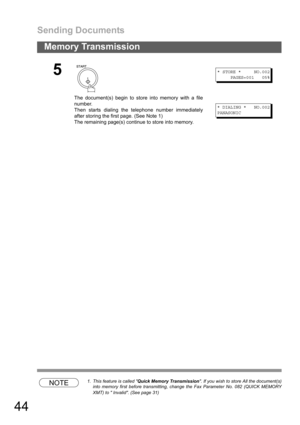

NOTE1. This feature is called Quick Memory Transmission. If you wish to store All the document(s)
into memory first before transmitting, change the Fax Parameter No. 082 (QUICK MEMORY
XMT) to  Invalid. (See page 31)
5
The document(s) begin to store into memory with a file
number.
Then starts dialing the telephone number immediately
after storing the first page. (See Note 1)
The remaining page(s) continue to store into memory.
* STORE * NO.002
PAGES=001 05%
*...

Sending Documents
45
Memory Transmission
Basic Operations

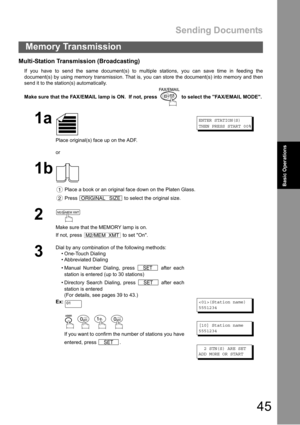

Multi-Station Transmission (Broadcasting)
If you have to send the same document(s) to multiple stations, you can save time in feeding the
document(s) by using memory transmission. That is, you can store the document(s) into memory and then
send it to the station(s) automatically.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%...

Sending Documents
46
Memory Transmission

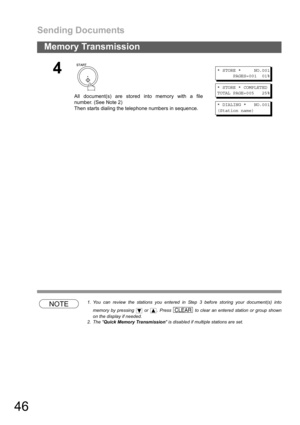

NOTE1. You can review the stations you entered in Step 3 before storing your document(s) into
memory by pressing   or  . Press   to clear an entered station or group shown
on the display if needed.
2. The Quick Memory Transmission is disabled if multiple stations are set.
4
All document(s) are stored into memory with a file
number. (See Note 2)
Then starts dialing the telephone numbers in sequence.
* STORE * NO.001
PAGES=001 01%
* STORE * COMPLETED
TOTAL PAGE=005...

Sending Documents
47
Basic Operations
If your machines memory is full or you wish to send the document(s) immediately, use Direct Transmission.

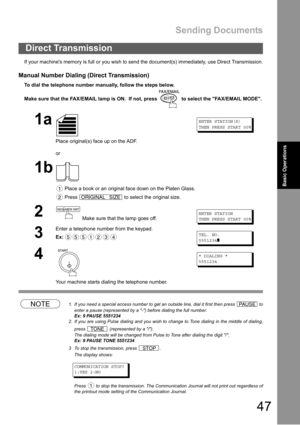

Manual Number Dialing (Direct Transmission)
To dial the telephone number manually, follow the steps below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1. If you need a special access number to get an outside line, dial it first then press   to
enter a pause (represented by a -) before dialing the full number.
Ex: 9...

Sending Documents
48
Direct Transmission

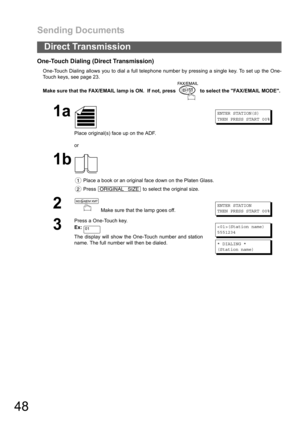

One-Touch Dialing (Direct Transmission)
One-Touch Dialing allows you to dial a full telephone number by pressing a single key. To set up the One-
Touch keys, see page 23.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the original size.
2 Make sure that the lamp...

Sending Documents
49
Direct Transmission
Basic Operations

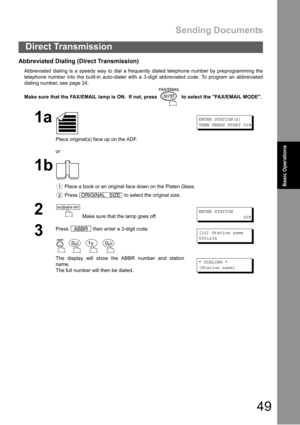

Abbreviated Dialing (Direct Transmission)
Abbreviated dialing is a speedy way to dial a frequently dialed telephone number by preprogramming the
telephone number into the built-in auto-dialer with a 3-digit abbreviated code. To program an abbreviated
dialing number, see page 24.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%...

Sending Documents
50
Direct Transmission

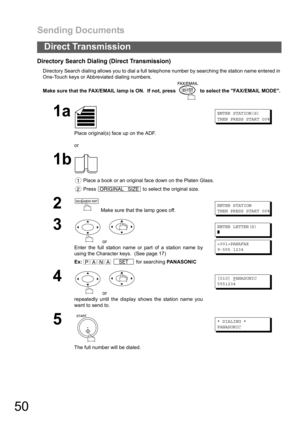

Directory Search Dialing (Direct Transmission)
Directory Search dialing allows you to dial a full telephone number by searching the station name entered in
One-Touch keys or Abbreviated dialing numbers.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the original...
