Panasonic Digital Imaging System Dp1810f Internet Fax Operating Instructions

Journals and Lists
121
One-Touch/Abbreviated and Directory Search List
Printout
Journals
and ListsPrintout Journals
and Lists
Sample Directory Search List
*************** -DIR. SEARCH LIST- ******************* DATE MMM-dd-yyyy ***** TIME 11:11 *** P.01
(8) (2) (1) (3) (7)
STATION NAME ONE-TOUCH/ EMAIL ADDRESS / TELEPHONE NO.
ABBR NO. ROUTING SUB-ADDR(5)ROUTING TSI(6)RELAY ADDR (ABBR NO.)
[B] Bob Jones [003] [email protected]
123456 201 555 1212
[J] John Smith [001]201 555 3456
4452 +1 201 123 4567...

Journals and Lists
122

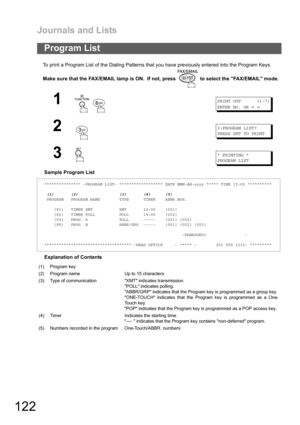

To print a Program List of the Dialing Patterns that you have previously entered into the Program Keys.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Sample Program List
Explanation of Contents
Program List
1

PRINT OUT (1-7)
ENTER NO. OR
∨∧
23:PROGRAM LIST?
PRESS SET TO PRINT
3* PRINTING *
PROGRAM LIST
*************** -PROGRAM LIST- ****************** DATE MMM-dd-yyyy ***** TIME 15:00 **********
(1) (2) (3) (4) (5)
PROGRAM PROGRAM NAME...

Journals and Lists
123
Printout
Journals
and ListsPrintout Journals
and Lists

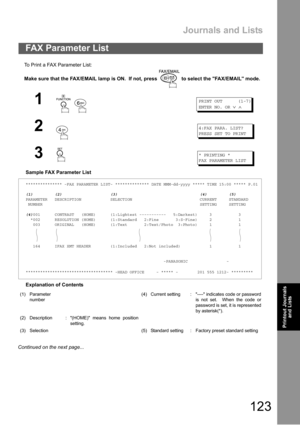

To Print a FAX Parameter List:
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Sample FAX Parameter List
Explanation of Contents
FAX Parameter List
1

PRINT OUT (1-7)
ENTER NO. OR
∨∧
24:FAX PARA. LIST?
PRESS SET TO PRINT
3* PRINTING *
FAX PARAMETER LIST
*************** -FAX PARAMETER LIST- ************** DATE MMM-dd-yyyy ***** TIME 15:00 ***** P.01
(1) (2) (3) (4) (5)
PARAMETER...

Journals and Lists
124
FAX Parameter List

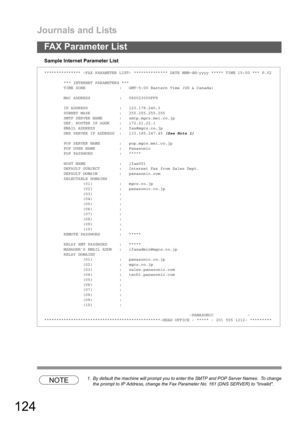

Sample Internet Parameter List
NOTE1. By default the machine will prompt you to enter the SMTP and POP Server Names.  To change
the prompt to IP Address, change the Fax Parameter No. 161 (DNS SERVER) to Invalid.
*************** -FAX PARAMETER LIST- ************** DATE MMM-dd-yyyy ***** TIME 15:00 *** P.02
*** INTERNET PARAMETERS ***
TIME ZONE : GMT-5:00 Eastern Time (US & Canada)
MAC ADDRESS : 080023000FF9
IP ADDRESS : 123.178.240.3
SUBNET MASK : 255.255.255.255...

125
Problem
SolvingProblem Solving
Problem Solving
Troubleshooting

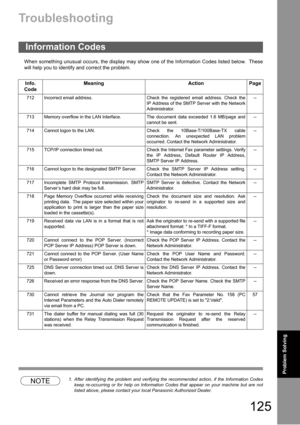

When something unusual occurs, the display may show one of the Information Codes listed below.  These
will help you to identify and correct the problem.
NOTE1. After identifying the problem and verifying the recommended action, if the Information Codes
keep re-occurring or for help on Information Codes that appear on your machine but are not
listed above, please contact your local Panasonic Authorized Dealer.
Information Codes
Info....

Troubleshooting
126
Error Message Sent to the Sender
Error messages that are emailed from your machine to the original sender during remote programming of
the Auto Dialer via email.
Internet FAX Return Receipt Errors Messages
Error messages that are printed on the Internet Fax Return Receipt when remote programming of the Auto
Dialer via email fails.
Email ABBR Programming Errors
Error Message Possible Cause
1 554 Data transfer error (broken header) The  header  or  sub  header  decoding  is  being...

Troubleshooting
127

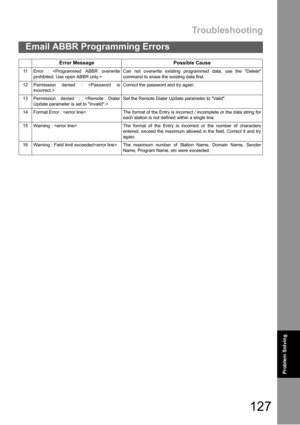

Email ABBR Programming Errors
Problem
SolvingProblem Solving
11 Error : Can not overwrite existing programmed data, use the Delete
command to erase the existing data first.
12 Permission denied : Correct the password and try again.
13 Permission denied : Set the Remote Dialer Update parameter to Valid.
14 Format Error :  The format of the Entry is incorrect / incomplete or the data string for
each station is not defined within a single line.
15 Warning :  The format of the Entry is...

memo
128

129
Appendix
Appendix
Appendix

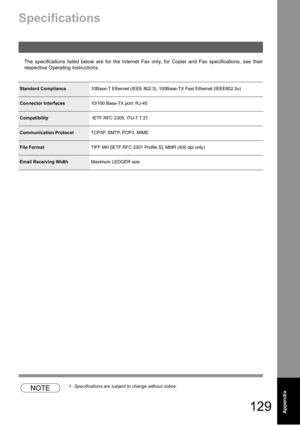

Specifications
The specifications listed below are for the Internet Fax only, for Copier and Fax specifications, see their
respective Operating Instructions.
NOTE1. Specifications are subject to change without notice.
Standard Compliance10Base-T Ethernet (IEEE 802.3), 100Base-TX Fast Ethernet (IEEE802.3u)
Connector Interfaces10/100 Base-TX port: RJ-45
Compatibility IETF RFC 2305, ITU-T T.37
Communication ProtocolTCP/IP, SMTP, POP3. MIME
File FormatTIFF MH [IETF RFC 2301...

130

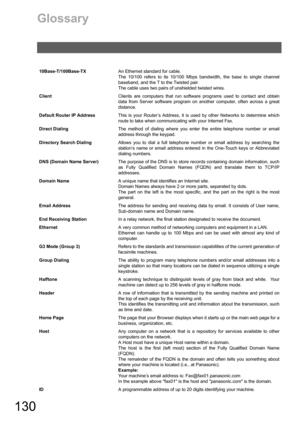

Glossary
10Base-T/100Base-TXAn Ethernet standard for cable.
The 10/100 refers to its 10/100 Mbps bandwidth, the base to single channel
baseband, and the T to the Twisted pair.
The cable uses two pairs of unshielded twisted wires.
ClientClients are computers that run software programs used to contact and obtain
data from Server software program on another computer, often across a great
distance.
Default Router IP AddressThis is your Router’s Address, it is used by other Networks to determine which...
