Panasonic Digital Imaging System Dp1810f Internet Fax Operating Instructions

91
Advanced
Features
Advanced
Features

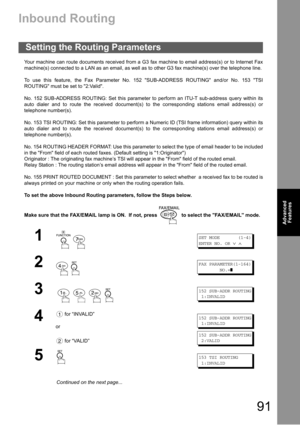

Inbound Routing
Your machine can route documents received from a G3 fax machine to email address(s) or to Internet Fax
machine(s) connected to a LAN as an email, as well as to other G3 fax machine(s) over the telephone line.
To use this feature, the Fax Parameter No. 152 SUB-ADDRESS ROUTING and/or No. 153 TSI
ROUTING must be set to 2:Valid.
No. 152 SUB-ADDRESS ROUTING: Set this parameter to perform an ITU-T sub-address query within its
auto dialer and to route the...

Inbound Routing
92
Setting the Routing Parameters
6
 for “INVALID”
or
 for “VALID”153 TSI ROUTING
1:INVALID
153 TSI ROUTING
2:VALID
7154 ROUTE HEADER FMT
1:ORIGINATOR
8
 for “ORIGINATOR”
or
 for “RELAY STATION”154 ROUTE HEADER FMT
1:ORIGINATOR
154 ROUTE HEADER FMT
2:RELAY STATION
9155 PRINT ROUTED DOC
1:INC. ONLY
10
 for “INC. ONLY”
or
 for “ALWAYS”155 PRINT ROUTED DOC
1:INC. ONLY
155 PRINT ROUTED DOC
2:ALWAYS
11156 PRT FORWARD DOC
1:INC. ONLY
12
 for “INC. ONLY”
or
 for “ALWAYS”156 PRT FORWARD DOC...

Inbound Routing
93
Advanced
Features
Advanced
Features

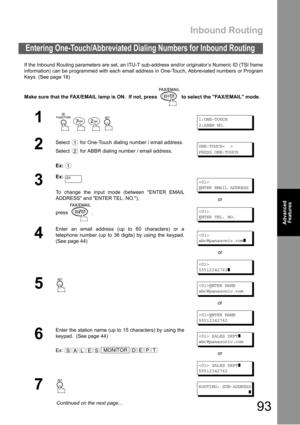

If the Inbound Routing parameters are set, an ITU-T sub-address and/or originator’s Numeric ID (TSI frame
information) can be programmed with each email address in One-Touch, Abbreviated numbers or Program
Keys. (See page 18)
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Entering One-Touch/Abbreviated Dialing Numbers for Inbound Routing
1

1:ONE-TOUCH
2:ABBR NO.
2
Select   for One-Touch dialing number /...

Inbound Routing
94
Entering One-Touch/Abbreviated Dialing Numbers for Inbound Routing
NOTE1. + and SPACE entries in the ROUTING: TSI field are ignored by the receiving machine.
8
Enter the sub-address (up to 20 characters) and press
.
ROUTING: SUB-ADDRESS
1234567
ROUTING: TSI
❚
9
Enter a Numeric ID (TSI) (up to 20 characters) and press
.
To return to standby, press  .
ROUTING: TSI
1234567
ONE-TOUCH< >
PRESS ONE-TOUCH
SET
SET
STOP

95
Advanced
Features
Advanced
Features

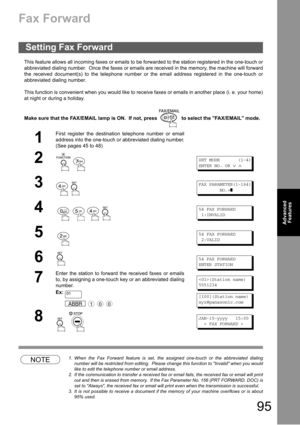

Fax Forward
This feature allows all incoming faxes or emails to be forwarded to the station registered in the one-touch or
abbreviated dialing number.  Once the faxes or emails are received in the memory, the machine will forward
the received document(s) to the telephone number or the email address registered in the one-touch or
abbreviated dialing number.
This function is convenient when you would like to receive faxes or emails in another place (i. e. your...

96

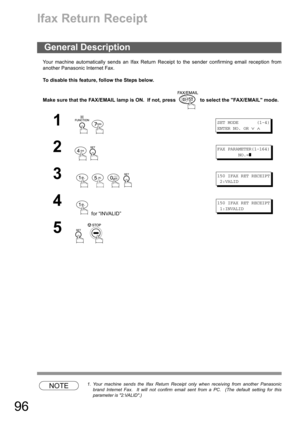

Ifax Return Receipt
Your machine automatically sends an Ifax Return Receipt to the sender confirming email reception from
another Panasonic Internet Fax.
To disable this feature, follow the Steps below.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
NOTE1. Your machine sends the Ifax Return Receipt only when receiving from another Panasonic
brand Internet Fax.  It will not confirm email sent from a PC.  (The default setting for this
parameter is 2:VALID.)...

97
Network
FeaturesNetwork Features
Network Features

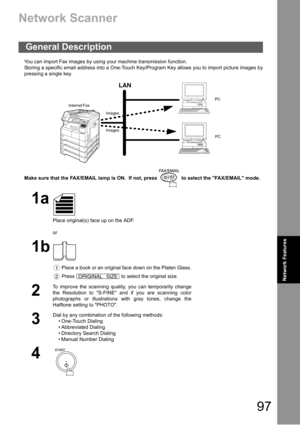

Network Scanner
You can import Fax images by using your machine transmission function.
Storing a specific email address into a One-Touch Key/Program Key allows you to import picture images by
pressing a single key.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
General Description
1a
Place original(s) face up on the ADF.
or
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the...

98

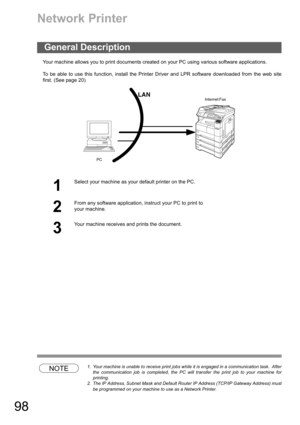

Network Printer
Your machine allows you to print documents created on your PC using various software applications.
To be able to use this function, install the Printer Driver and LPR software downloaded from the web site
first. (See page 20)
NOTE1. Your machine is unable to receive print jobs while it is engaged in a communication task.  After
the communication job is completed, the PC will transfer the print job to your machine for
printing.
2. The IP Address, Subnet Mask and Default Router IP...

99
Network
FeaturesNetwork Features

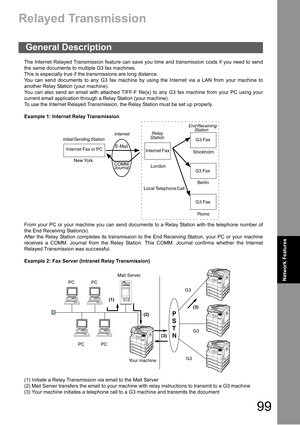

Relayed Transmission
The Internet Relayed Transmission feature can save you time and transmission costs if you need to send
the same documents to multiple G3 fax machines.
This is especially true if the transmissions are long distance.
You can send documents to any G3 fax machine by using the Internet via a LAN from your machine to
another Relay Station (your machine).
You can also send an email with attached TIFF-F file(s) to any G3 fax machine from your PC using...

Relayed Transmission
100

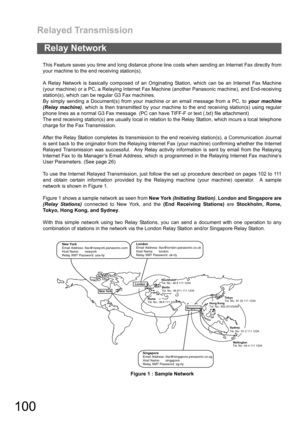

This Feature saves you time and long distance phone line costs when sending an Internet Fax directly from
your machine to the end receiving station(s).
A Relay Network is basically composed of an Originating Station, which can be an Internet Fax Machine
(your machine) or a PC, a Relaying Internet Fax Machine (another Panasonic machine), and End-receiving
station(s), which can be regular G3 Fax machines.
By simply sending a Document(s) from your machine or an email message from a...
