Relayed Transmission
101
Relay Network
Network
FeaturesNetwork Features

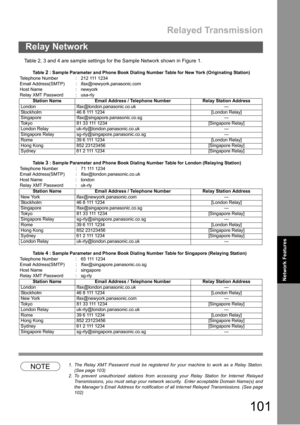

Table 2, 3 and 4 are sample settings for the Sample Network shown in Figure 1.
NOTE1. The Relay XMT Password must be registered for your machine to work as a Relay Station.
(See page 103)
2. To prevent unauthorized stations from accessing your Relay Station for Internet Relayed
Transmissions, you must setup your network security.  Enter acceptable Domain Name(s) and
the Manager’s Email Address for notification of all Internet Relayed...

Relayed Transmission
102

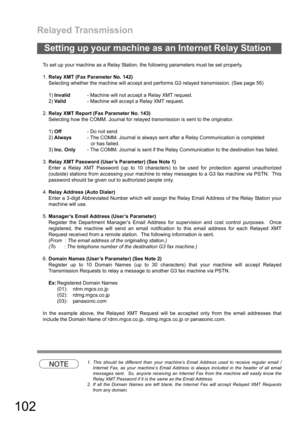

To set up your machine as a Relay Station, the following parameters must be set properly.
1.Relay XMT (Fax Parameter No. 142)
Selecting whether the machine will accept and performs G3 relayed transmission. (See page 56)
1)Invalid- Machine will not accept a Relay XMT request.
2)Valid- Machine will accept a Relay XMT request.
2.Relay XMT Report (Fax Parameter No. 143)
Selecting how the COMM. Journal for relayed transmission is sent to the originator.
1)Off- Do not send
2)Always-...

Relayed Transmission
103
Network
FeaturesNetwork Features

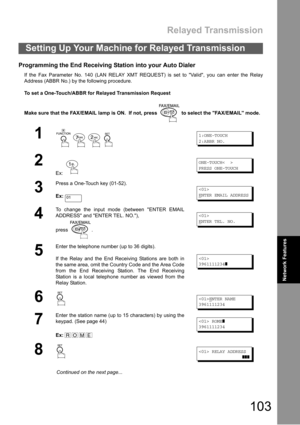

Programming the End Receiving Station into your Auto Dialer
If the Fax Parameter No. 140 (LAN RELAY XMT REQUEST) is set to Valid, you can enter the Relay
Address (ABBR No.) by the following procedure.
To set a One-Touch/ABBR for Relayed Transmission Request
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Setting Up Your Machine for Relayed Transmission
1

1:ONE-TOUCH
2:ABBR NO.
2
Ex:
ONE-TOUCH< >
PRESS...

Relayed Transmission
104
Setting Up Your Machine for Relayed Transmission

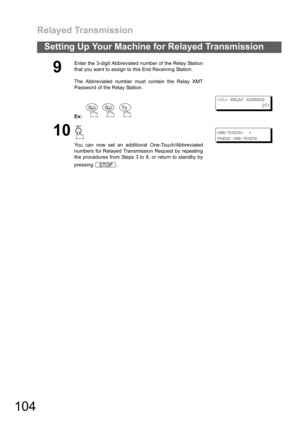

9
Enter the 3-digit Abbreviated number of the Relay Station
that you want to assign to this End Receiving Station.
The Abbreviated number must contain the Relay XMT
Password of the Relay Station.
Ex:
 RELAY ADDRESS
0
01
10
You can now set an additional One-Touch/Abbreviated
numbers for Relayed Transmission Request by repeating
the procedures from Steps 3 to 8, or return to standby by
pressing .
ONE-TOUCH< >
PRESS ONE-TOUCH
.
STOP

Relayed Transmission
105
Network
FeaturesNetwork Features

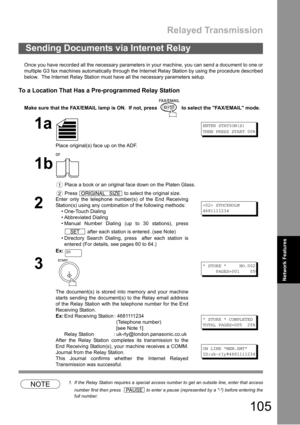

Once you have recorded all the necessary parameters in your machine, you can send a document to one or
multiple G3 fax machines automatically through the Internet Relay Station by using the procedure described
below.  The Internet Relay Station must have all the necessary parameters setup.
To a Location That Has a Pre-programmed Relay Station
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
NOTE1. If the...

Relayed Transmission
106
Sending Documents via Internet Relay

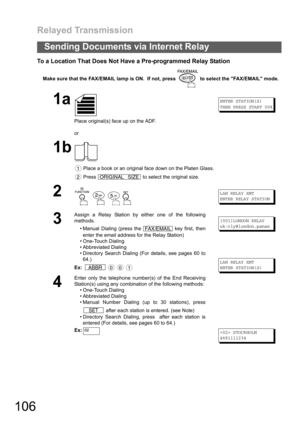

To a Location That Does Not Have a Pre-programmed Relay Station
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
1a
Place original(s) face up on the ADF.
or
ENTER STATION(S)
THEN PRESS START 00%
1b
 Place a book or an original face down on the Platen Glass.
 Press   to select the original size.
2

LAN RELAY XMT
ENTER RELAY STATION
3
Assign a Relay Station by either one of the following
methods.
...

Relayed Transmission
107
Sending Documents via Internet Relay
Network
FeaturesNetwork Features
NOTE1. If the Relay Station requires a special access number to get an outside line, enter that access
number first then press    to enter a pause (represented by a -) before entering the
full number.
2. The # character is not available for the email address of the relay station.
5
The document(s) is stored into memory and your machine
starts sending the document(s) to the Relay email address
of the Relay...

Relayed Transmission
108

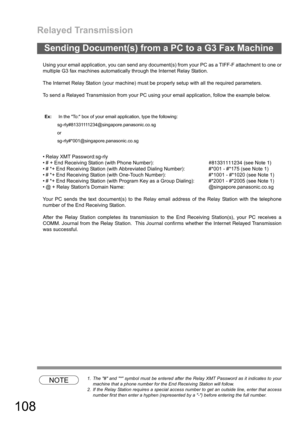

Using your email application, you can send any document(s) from your PC as a TIFF-F attachment to one or
multiple G3 fax machines automatically through the Internet Relay Station.
The Internet Relay Station (your machine) must be properly setup with all the required parameters.
To send a Relayed Transmission from your PC using your email application, follow the example below.
 Relay XMT Password:
sg-rly
 # + End Receiving Station (with Phone Number):#81331111234 (see Note 1)
...

Relayed Transmission
109
Sending Document(s) from a PC to a G3 Fax Machine
Network
FeaturesNetwork Features

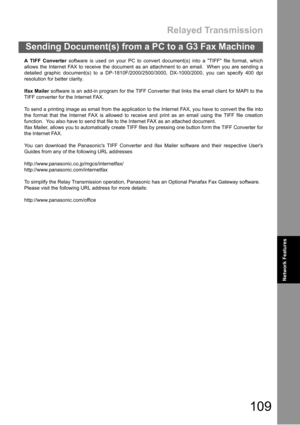

A TIFF Converter software is used on your PC to convert document(s) into a TIFF file format, which
allows the Internet FAX to receive the document as an attachment to an email.  When you are sending a
detailed graphic document(s) to a DP-1810F/2000/2500/3000, DX-1000/2000, you can specify 400 dpi
resolution for better clarity.
Ifax Mailer software is an add-in program for the TIFF Converter that...

Relayed Transmission
110

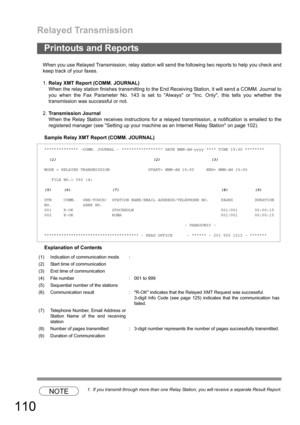

When you use Relayed Transmission, relay station will send the following two reports to help you check and
keep track of your faxes.
1.Relay XMT Report (COMM. JOURNAL)
When the relay station finishes transmitting to the End Receiving Station, it will send a COMM. Journal to
you when the Fax Parameter No. 143 is set to Always or Inc. Only, this tells you whether the
transmission was successful or not.
2.Transmission Journal
When the Relay Station receives instructions for a...
