Panasonic Document Scanner Kv S5076h_s5046h Operating Manual

6.If you selected [Custom] for the installation type in step 5, select the item that you want to install.
Note
•If you select TWAIN or ISIS, Image Capture Plus will also be installed.
7. Follow the instructions on the screen and complete the installation.
• Restart your computer if you are prompted to do so.
8. Press the power button ( A) to turn ON the unit’s power.
• The LED (Green) will flash and then turn on.
• If the hardware wizard appears, follow the on-screen instructions to complete...

Viewing Operating Manual and Help InstalledIf the manuals and software that were included on the Software / Manual CD -ROM have been installed on your
computer, you can use the following procedure to view the Operating Manual and the software’s help.
To view the Operating Manual 1.Select [All Programs]  ® [Panasonic]  ® [Scanner Manuals].
2. Select the manual.
• The manual will open.
Note
•In Windows 8, select the [Panasonic Document Scanner] section on the Apps screen.
To view the help
Note •We...

Preparing Documents
Notice•Make sure to remove paper clips and staples from documents before scanning. Failing to do so can
damage the unit, document, or both.
• Before feeding, ensure that the document is not creased or folded. If the document is creased or folded,
a paper jam or damage to the document may occur.
• When scanning important documents, confirm that the number of scanned images matches the number
of pages in the feed tray. Also, check the condition of the scanned documents.
• Remove...

Document types•Plain paper•Recycled paper•Bond paper•OCR paper•Newspaper•Bank checks•Carbonless copy paper•Tracing paper
Recommended paper: Plain paper
Documents must also meet the following conditions
CurlFolding
24Operating Manual
OperationFeeding direction
Less than
10 mm
(0.4 in.) Less than
10 mm
(0.4 in.)Feeding direction

Unacceptable DocumentsThe following types of documents may not scan properly:
• Torn or frayed documents
• Curled, wrinkled or folded documents
• Carbon paper
• Thick or irregular documents such as envelopes, documents that are glued together, etc.
• Perforated or punched paper
• Non-rectangular or irregularly shaped paper
• Coated paper
• Photographs *1
• Extremely smooth, shiny paper, or paper that is highly textured *1
*1 Documents may become scratched or damaged, etc.
Do not scan the following types...

Scanning Documents1.Adjust the document guides ( A) slightly larger than the actual size of the documents.
2. Fan the documents.
• Documents that have been stapled together or stacked together (as in a file folder) will need to be
separated.
Fan the stack of documents to separate all the edges.
Hold both ends and bend the documents as shown in the illustration.
To flatten the documents, hold firmly and pull them apart as shown in the illustration.
Repeat these steps as necessary.
3. Carefully align the...

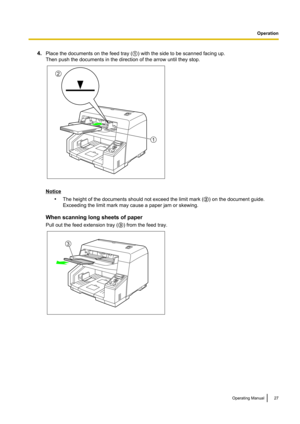

4.Place the documents on the feed tray ( A) with the side to be scanned facing up.
Then push the documents in the direction of the arrow until they stop.
Notice
•The height of the documents should not exceed the limit mark ( B) on the document guide.
Exceeding the limit mark may cause a paper jam or skewing.
When scanning long sheets of paper
Pull out the feed extension tray ( C) from the feed tray.
Operating Manual27
Operation2
1 3

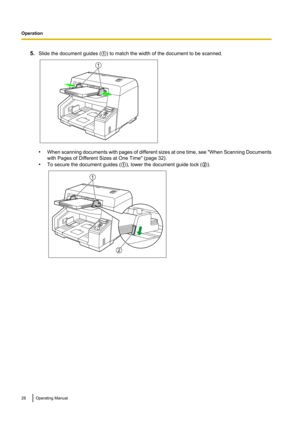

5.Slide the document guides ( A) to match the width of the document to be scanned.
• When scanning documents with pages of different sizes at one time, see  "When Scanning Documents
with Pages of Different Sizes at One Time" (page 32).
• To secure the document guides ( A), lower the document guide lock ( B).
28Operating Manual
Operation1 1
2

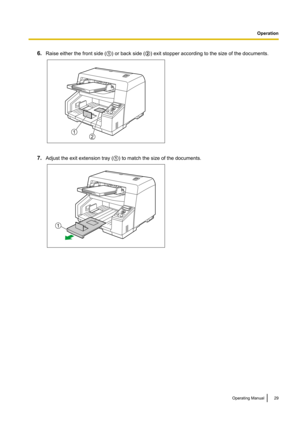

6.Raise either the front side ( A) or back side ( B) exit stopper according to the size of the documents.
7. Adjust the exit extension tray ( A) to match the size of the documents.
Operating Manual29
Operation12 1

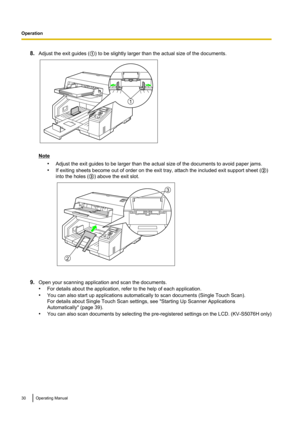

8.Adjust the exit guides ( A) to be slightly larger than the actual size of the documents.
Note
•Adjust the exit guides to be larger than the actual size of the documents to avoid paper jams.
• If exiting sheets become out of order on the exit tray, attach the included exit support sheet ( B)
into the holes ( C) above the exit slot.
9. Open your scanning application and scan the documents.
• For details about the application, refer to the help of each application.
• You can also start up applications...
