Panasonic Ey7880 Operating Instructions Manual

- 11  -

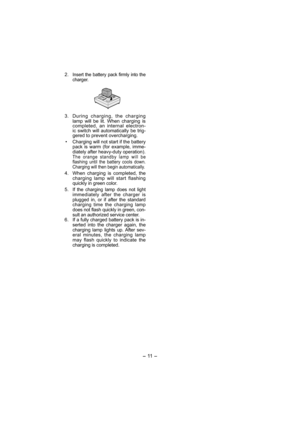

 2. Insert the battery pack firmly into the
charger.
  3.  During charging, the charging
lamp will be lit. When charging is
completed, an internal electron-
ic switch will automatically be trig-
gered to prevent overcharging.
•  Charging will not start if the battery
pack is warm (for example, imme-
diately after heavy-duty operation).
  The orange standby lamp will be
flashing until the battery cools down.
Charging will then begin automatically.
  4.  When charging is completed, the...

- 12 -

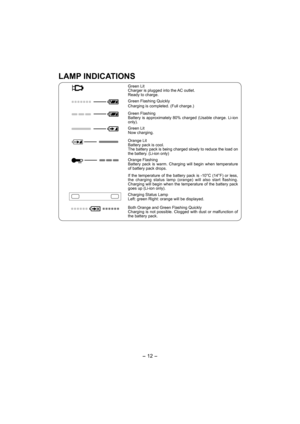

LAMP INDICATIONS
Green Lit
Charger is plugged into the AC outlet.
Ready to charge.
Green Flashing Quickly
Charging is completed. (Full charge.)
Green Flashing
Battery is approximately 80% charged (Usable charge. Li-ion
only).
Green Lit
Now charging.
Orange Lit
Battery pack is cool.
The battery pack is being charged slowly to reduce the load on
the battery. (Li-ion only)
Orange Flashing
Battery pack is warm. Charging will begin when temperature
of battery pack drops.
If the temperature of the...

- 13 -

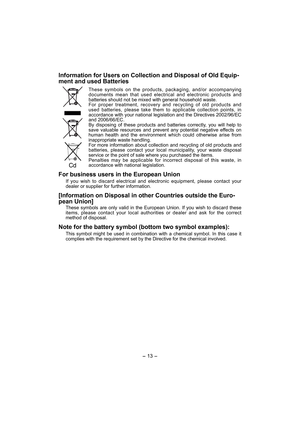

Information for Users on Collection and Disposal of Old Equip-
ment and used Batteries
These symbols on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and
batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and
used batteries, please take them to applicable collection points, in
accordance with your national legislation and the Directives 2002/96/EC
and...

- 14 -

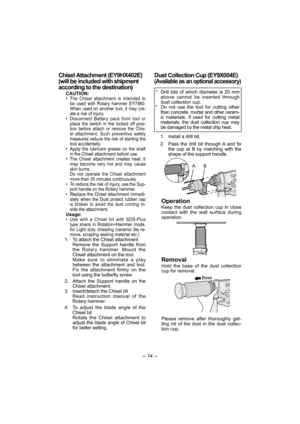

Chisel Attachment (EY9HX402E)
(will be included with shipment
according to the destination)
CAUTION:
• The Chisel attachment is intended to
be used with Rotary hammer EY7880.
When used on another tool, it may cre-
ate a risk of injury.
• Disconnect Battery pack from tool or
place the switch in the locked off posi-
tion before attach or remove the Chis-
el attachment. Such preventive safety
measures reduce the risk of starting the
tool accidentally.
• Apply the lubricant grease on the shaft...

- 15 -

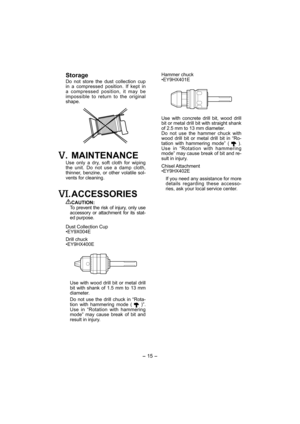

 Storage
Do not store the dust collection cup
in a compressed position. If kept in
a compressed position, it may be
impossible to return to the original
shape.
. MAINTENANCE
Use only a dry, soft cloth for wiping
the unit. Do not use a damp cloth,
thinner, benzine, or other volatile sol-
vents for cleaning.
. ACCESSORIES
CAUTION:
To prevent the risk of injury, only use
accessory or attachment for its stat-
ed purpose.
Dust Collection Cup
•EY9X004E
Drill chuck
•EY9HX400E
Use with wood drill...

- 16 -

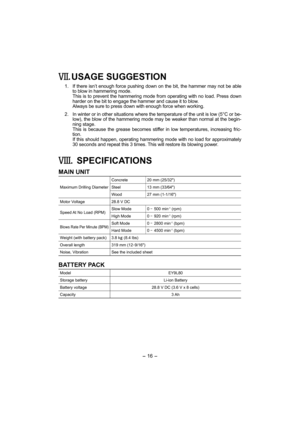

. USAGE SUGGESTION
 1.  If there isn’t enough force pushing down on the bit, the hammer may not be able
to blow in hammering mode.
    This is to prevent the hammering mode from operating with no load. Press down
harder on the bit to engage the hammer and cause it to blow.
    Always be sure to press down with enough force when working.
  2.  In winter or in other situations where the temperature of the unit is low (5°C or be-
low), the blow of the hammering mode may be weaker than normal at...

- 17 -

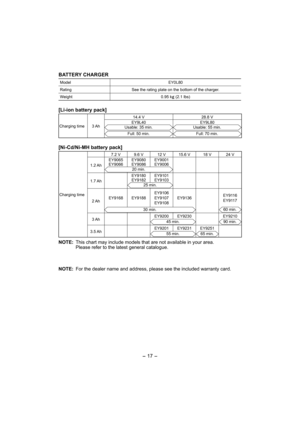

BATTERY CHARGER
Model EY0L80
Rating See the rating plate on the bottom of the charger.
Weight 0.95 kg
(2.1 lbs)
[Li-ion battery pack]
Charging time 3 Ah14.4 V 28.8 V
EY9L40Usable: 35 min.
Full: 50 min.
EY9L80Usable: 55 min.
Full: 70 min.
[Ni-Cd/Ni-MH battery pack]
Charging time7.2 V 9.6 V 12 V 15.6 V 18 V 24 V
1.2 AhEY9065
EY9066EY9080
EY9086EY9001
EY9006
20 min.
1.7 AhEY9180
EY9182EY9101
EY910325 min.
2 AhEY9168 EY9188EY9106
EY9107
EY9108EY9136EY9116
EY9117
30 min.60 min.
3 AhEY9200 EY9230...

- 18 -

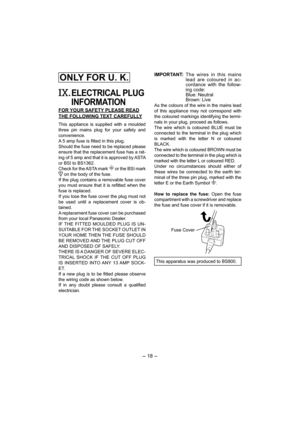

ONLY FOR U. K.
. ELECTRICAL PLUG
INFORMATION
FOR YOUR SAFETY PLEASE READ
THE FOLLOWING TEXT CAREFULLY
This appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
A 5 amp fuse is fi tted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rat-
ing of 5 amp and that it is approved by ASTA
or BSI to BS1362.
Check for the ASTA mark
 or the BSI mark
 on the body of the fuse.
If the plug contains a removable fuse...

- 19 -

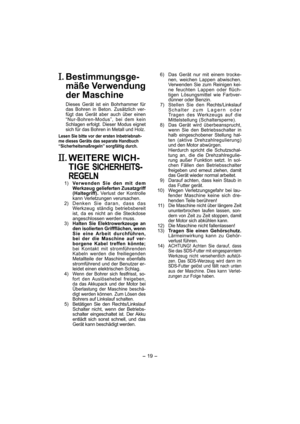

. Bestimmungsge-
mäße Verwendung
der Maschine
Dieses Gerät ist ein Bohrhammer für
das Bohren in Beton. Zusätzlich ver-
fügt das Gerät aber auch über einen
“Nur-Bohren-Modus”, bei dem kein
Schlagen erfolgt. Dieser Modus eignet
sich für das Bohren in Metall und Holz.
Lesen Sie bitte vor der ersten Inbetriebnah-
me dieses Geräts das separate Handbuch
“Sicherheitsmaßregeln” sorgfältig durch.
. WEITERE WICH-
TIGE
SICHERHEITS-
REGELN
 1) Verwenden Sie den mit dem
Werkzeug gelieferten...

- 20 -

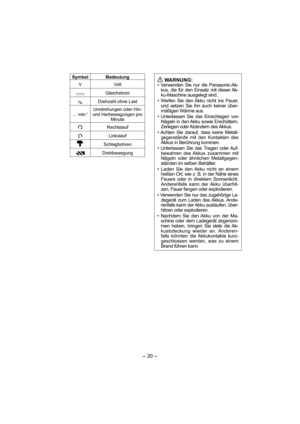

Symbol Bedeutung
V Volt
Gleichstrom
n
0Drehzahl ohne Last
… min
-1Umdrehungen oder Hin-
und Herbewegungen pro
Minute
Rechtslauf
Linkslauf
Schlagbohren
Drehbewegung

WARNUNG:
• Verwenden Sie nur die Panasonic-Ak-
kus, die für den Einsatz mit dieser Ak-
ku-Maschine ausgelegt sind.
• Werfen Sie den Akku nicht ins Feuer,
und setzen Sie ihn auch keiner über-
mäßigen Wärme aus.
• Unterlassen Sie das Einschlagen von
Nägeln in den Akku sowie Erschüttern,
Zerlegen oder Abändern des Akkus.
• Achten...
