Panasonic Hc W570 Owners Manual

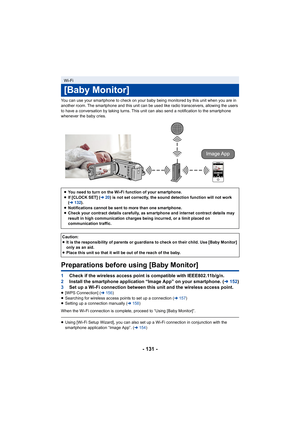

- 131 -
You can use your smartphone to check on your baby being monitored by this unit when you are in
another room. The smartphone and this unit can be used like rad io transceivers, allowing the users
to have a conversation by taking turns. This unit can also send  a notification to the smartphone
whenever the baby cries.
Preparations before using [Baby Monitor]
1 Check if the wireless access point is compatible with IEEE802.1 1b/g/n.
2 Install the smartphone application “Image App” on your smartpho...

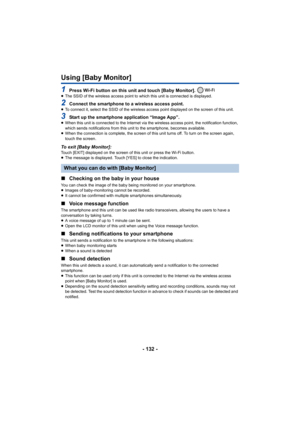

- 132 -
Using [Baby Monitor]
1Press Wi-Fi button on this unit and touch [Baby Monitor]. ≥The SSID of the wireless access  point to which this unit is connected is displayed.
2Connect the smartphone to a wireless access point.≥To connect it, select the SSID of the wireless access point dis played on the screen of this unit.
3Start up the smartphone application “Image App”.≥When this unit is connected to the Internet via the wireless ac cess point, the notification function,
which sends notifications from...

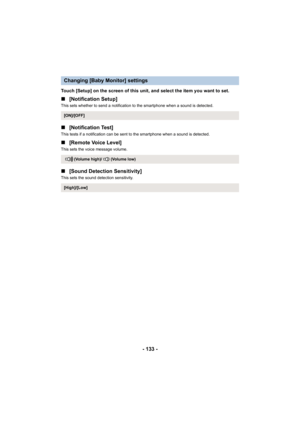

- 133 -
Touch [Setup] on the screen of this unit, and select the item you want to set.
∫[Notification Setup]
This sets whether to send a notification to the smartphone when a sound is detected.
∫[Notification Test]
This tests if a notification can be sent to the smartphone when  a sound is detected.
∫[Remote Voice Level]
This sets the voice message volume.
∫[Sound Detection Sensitivity]
This sets the sound detection sensitivity.
Changing [Baby Monitor] settings
[ON]/[OFF]
(Volume high)/ (Volume low)...

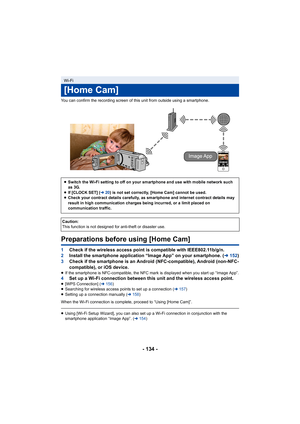

- 134 -
You can confirm the recording screen of this unit from outside using a smartphone.
Preparations before using [Home Cam]
1Check if the wireless access point is compatible with IEEE802.1 1b/g/n.
2 Install the smartphone application “Image App” on your smartpho ne. (l152)
3 Check if the smartphone is an Android (NFC-compatible), Android  (non-NFC-
compatible), or iOS device.
≥ If the smartphone is NFC-compatible, the NFC mark is displayed when you start up “Image App”.4 Set up a Wi-Fi connection...

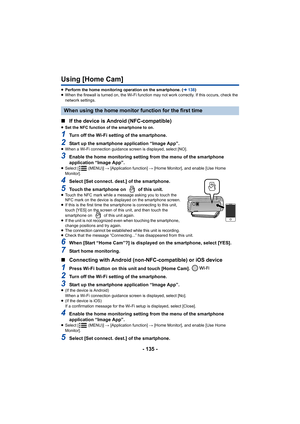

- 135 -
Using [Home Cam]
≥Perform the home monitoring operation on the smartphone. ( l138 )
≥ When the firewall is turned on, the Wi-Fi function may not work  correctly. If this occurs, check the
network settings.
∫ If the device is Android (NFC-compatible)
≥Set the NFC function of the smartphone to on.
1Turn off the Wi-Fi setting of the smartphone.
2Start up the smartphone application “Image App”.≥When a Wi-Fi connection guidance screen is displayed, select [N O].
3Enable the home monitoring setting...

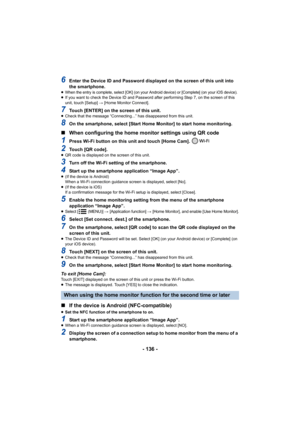

- 136 -
6Enter the Device ID and Password displayed on the screen of this unit into
the smartphone.
≥When the entry is complete, select [OK] (on your Android device) or [Complete] (on your iOS device).≥ If you want to check the Device ID and Password after performin g Step 7, on the screen of this
unit, touch [Setup]  # [Home Monitor Connect].
7Touch [ENTER] on the screen of this unit.≥Check that the message “Connecting...” has disappeared from thi s unit.
8On the smartphone, select [Start Home...

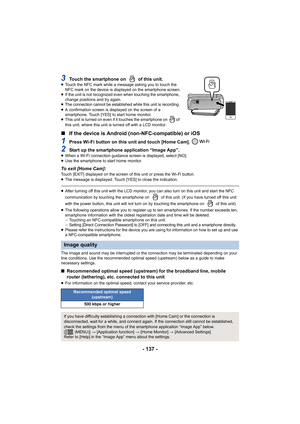

- 137 -
3Touch the smartphone on   of this unit.≥Touch the NFC mark while a message asking you to touch the
NFC mark on the device is displayed on the smartphone screen.
≥ If the unit is not recognized even when touching the smartphone ,
change positions and try again.
≥
The connection cannot be established while this unit is recording.≥ A confirmation screen is displayed on the screen of a
smartphone. Touch [YES] to start home monitor.
≥ This unit is turned on even if it touches the smartphone on...

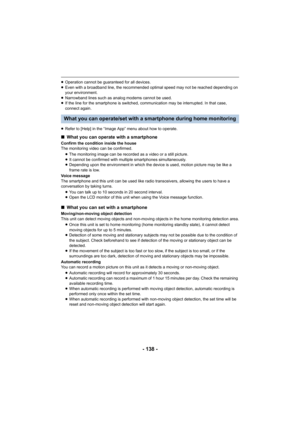

- 138 -
≥Operation cannot be guaranteed for all devices.
≥ Even with a broadband line, the recommended optimal speed may n ot be reached depending on
your environment.
≥ Narrowband lines such as analog modems cannot be used.
≥ If the line for the smartphone is switched, communication may be interrupted. In that case,
connect again.
≥ Refer to [Help] in the “Image App” menu about how to operate.
What you can operate/set with a smartphone during home monitori ng
∫What you can operate with a smartphone...

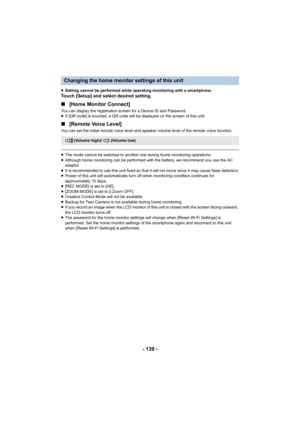

- 139 -
≥Setting cannot be performed while operating monitoring with a s martphone.Touch [Setup] and select desired setting.
∫[Home Monitor Connect]
You can display the registration screen for a Device ID and Pas sword.
≥ If [QR code] is touched, a QR code will be displayed on the scr een of this unit.
∫[Remote Voice Level]
You can set the initial remote voice level and speaker volume l evel of the remote voice function.
≥The mode cannot be switched to another one during home monitori ng operations.
≥...

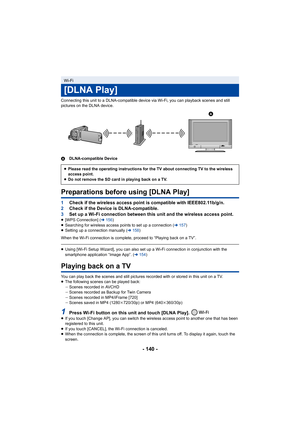

- 140 -
Connecting this unit to a DLNA-compatible device via Wi-Fi, you can playback scenes and still
pictures on the DLNA device.
A DLNA-compatible Device
Preparations before using [DLNA Play]
1Check if the wireless access point is compatible with IEEE802.1 1b/g/n.
2 Check if the Device is DLNA-compatible.
3 Set up a Wi-Fi connection between this unit and the wireless ac cess point.
≥[WPS Connection] ( l156 )
≥ Searching for wireless access points to set up a connection ( l157)
≥ Setting up a...
