Chapter 4 Settings — [POSITION] menu
ENGLISH - 91
3) Press as to select [MODE].
4)
Press
 qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
 qw to switch the item.
[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.
[ON] Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and...

Chapter 4 Settings — [POSITION] menu
92 - ENGLISH

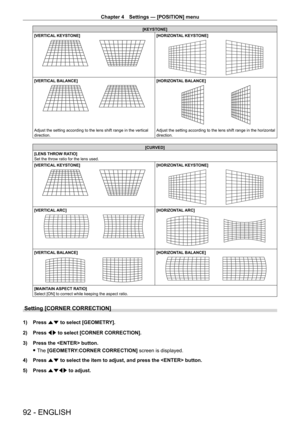

[KEYSTONE]
[VERTICAL KEYSTONE]
[HORIZONTAL KEYSTONE]
[VERTICAL BALANCE][HORIZONTAL BALANCE]
Adjust the setting according to the lens shift range in the vertical
direction. Adjust the setting according to the lens shift range in the horizontal
direction.
[CURVED]
[LENS THROW RATIO]
Set the throw ratio for the lens used.
[VERTICAL KEYSTONE]
[HORIZONTAL KEYSTONE]
[VERTICAL ARC][HORIZONTAL ARC]
[VERTICAL BALANCE][HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]...

Chapter 4 Settings — [POSITION] menu
ENGLISH - 93

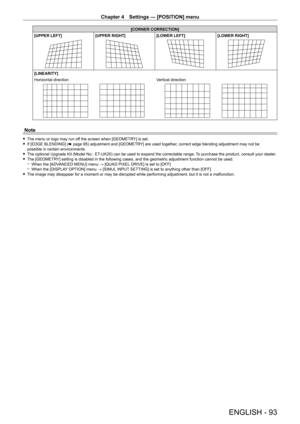

[CORNER CORRECTION]
[UPPER LEFT]
[UPPER RIGHT][LOWER LEFT][LOWER RIGHT]
[LINEARITY]
Horizontal direction
Vertical direction
Note
 f The menu or logo may run of f the screen when [GEOMETRY] is set. fIf [EDGE BLENDING] ( x
  page   95) adjustment and [GEOMETRY] are used together, correct edge blending adjustment may not be
possible in certain environments.
 f The optional Upgrade Kit (Model No.: ET-

UK20) can be used to expand the correctable range. To...

Chapter 4 Settings — [ADVANCED MENU] menu
94 - ENGLISH
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.

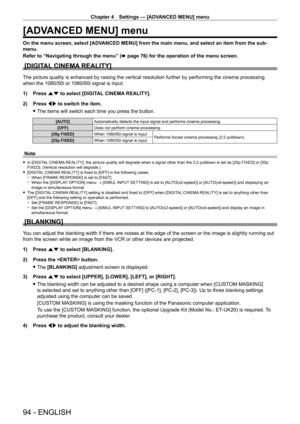

[DIGITAL CINEMA REALITY]
The picture quality is enhanced by raising the vertical resolution further by performing the cinema processing
when the 1080/50i or 1080/60i signal is input.
1)

Press
 as to select [DIGITAL CINEMA REALITY]....

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 95

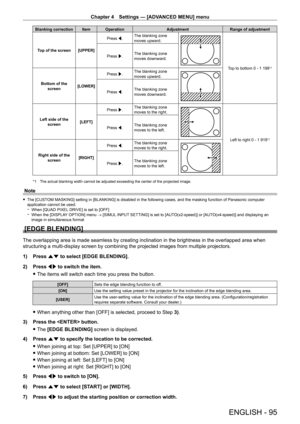

Blanking correction Item OperationAdjustmentRange of adjustment
Top of the screen [UPPER] Press q.
The blanking zone
moves upward.
Top to bottom 0 - 1 199*1
Press w.The blanking zone
moves downward.
Bottom of the  screen [LOWER]Press w.
The blanking zone
moves upward.
Press q.The blanking zone
moves downward.
Left side of the  screen [LEFT]Press w.
The blanking zone
moves to the right.
Left to right 0 - 1 919*1
Press q.The blanking zone
moves...

Chapter 4 Settings — [ADVANCED MENU] menu
96 - ENGLISH

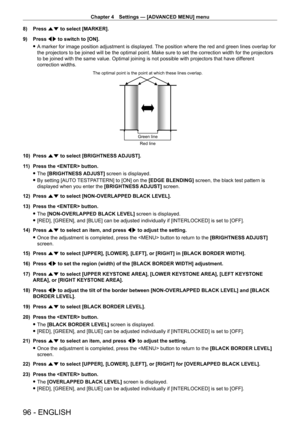

8) Press as to select [MARKER].
9)
Press
 qw to switch to [ON].
 fA

 marker for image position adjustment is displayed. The position where the red and green lines overlap for
the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors
to be joined with the same value. Optimal joining is not possible with projectors that have dif ferent
correction widths.
The optimal point is the point at...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 97

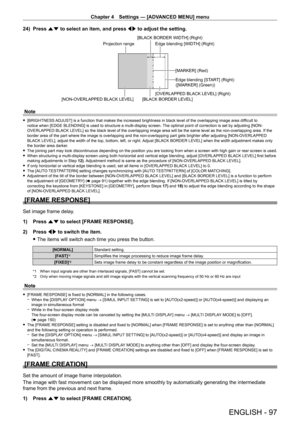

24) Press as to select an item, and press qw to adjust the setting.
[BLACK BORDER WIDTH] (Right)
Projection range Edge blending [WIDTH] (Right)
[MARKER] (Red)Edge blending [START] (Right)
([MARKER] (Green))
[BLACK BORDER LEVEL] [OVERLAPPED BLACK LEVEL] (Right)
[NON-OVERLAPPED BLACK LEVEL]
Note
 f [BRIGHTNESS  ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difficult to
notice when [EDGE...

Chapter 4 Settings — [ADVANCED MENU] menu
98 - ENGLISH
2) Press the  button.
 fThe

[FRAME CREATION] screen is displayed.
3)

Press
 as to select [FRAME CREATION MODE].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Disables the frame creation function.
[1] Sets the amount of interpolation weaker.
[2] Sets the amount of interpolation midway.
(Factory default setting)
[3] Sets the amount of interpolation stronger.
Note
 fThe effect may be difficult to...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 99
2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Enables the QUAD PIXEL DRIVE function.
[OFF] Disables the QUAD PIXEL DRIVE function.
Note
 f[QUAD PIXEL  DRIVE] is fixed to [ON] in the following cases. gWhen the [POSITION] menu  →
 [GEOMETRY] is set to anything other than [OFF]
 gWhen [CUST

OM MASKING] in [BLANKING] is set to anything other than [OFF] ([PC-1], [PC-2], [PC-3])
To use the [CUSTOM MASKING]...

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
100 - ENGLISH
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.

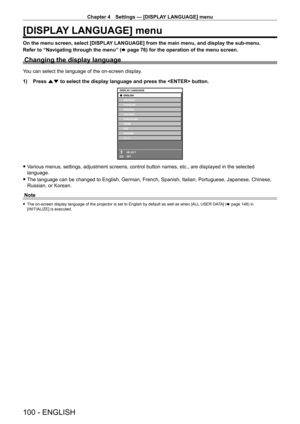

Changing the display language
You can select the language of the on-screen display.
1)

Press
 as to select the display language and press the  button.
ENTER
DISPLAY LANGUAGE
SELECT
SET
 fVarious menus, settings, adjustment screens,...
