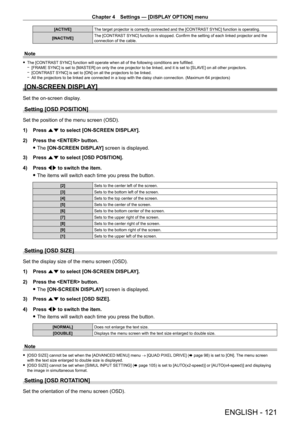

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 121
[ACTIVE]The target projector is correctly connected and the [CONTRAST SYNC] function is operating.
[INACTIVE] The [CONTRAST SYNC] function is stopped. Confirm the setting of each linked projector and the
connection of the cable.
Note
 f
The [CONTRAST  SYNC] function will operate when all of the following conditions are fulfilled. g[FRAME SYNC] is set to [MASTER] on only the one projector to be linked, and it is set to [SLA VE] on all other...

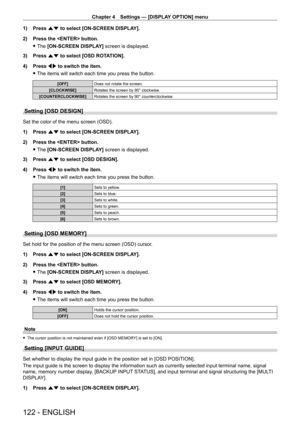

Chapter 4 Settings — [DISPLAY OPTION] menu
122 - ENGLISH
1) Press as to select [ON-SCREEN DISPLAY].
2)
Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [OSD ROTATION].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Does not rotate the screen.
[CLOCKWISE] Rotates the screen by 90° clockwise.
[COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise.
Setting [OSD DESIGN]
Set the color of the menu screen...

Chapter 4 Settings — [DISPLAY OPTION] menu

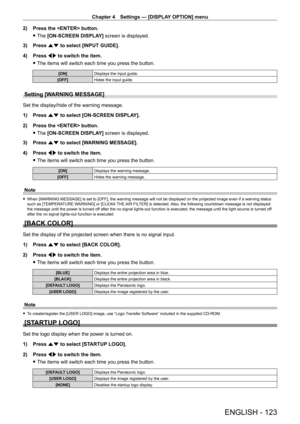

ENGLISH - 123
2) Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [INPUT GUIDE].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays the input guide.
[OFF] Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is...

Chapter 4 Settings — [DISPLAY OPTION] menu
124 - ENGLISH
Note
 fWhen [USER LOGO] is selected, the display of the startup logo will be kept for approximately 15 seconds. fT
o create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[UNIFORMITY]
Correct the brightness and color unevenness of the entire screen.
Setting each color
1) Press  as to select [UNIFORMITY].
2)
Press the  button.
 fThe

[UNIFORMITY] screen is displayed.
3)

Press
 as to select...

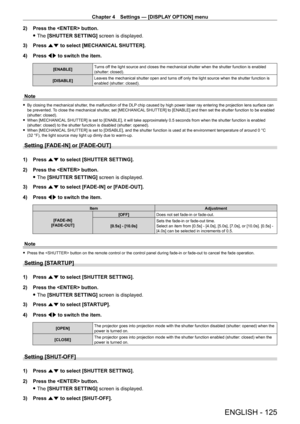

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 125
2) Press the  button.
 fThe

[SHUTTER SETTING]  screen is displayed.
3)

Press
 as to select [MECHANICAL SHUTTER].
4)

Press
 qw to switch the item.
[ENABLE] Turns off the light source and closes the mechanical shutter when the shutter function is enabled
(shutter: closed).
[DISABLE] Leaves the mechanical shutter open and turns off only the light source when the shutter function is
enabled (shutter: closed).
Note
 f
By closing the mechanical...

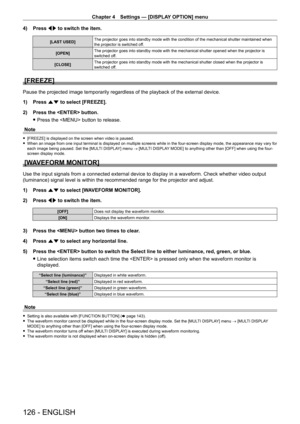

Chapter 4 Settings — [DISPLAY OPTION] menu
126 - ENGLISH
4) Press qw to switch the item.
[LAST USED] The projector goes into standby mode with the condition of the mechanical shutter maintained when
the projector is switched off.
[OPEN] The projector goes into standby mode with the mechanical shutter opened when the projector is
switched off.
[CLOSE] The projector goes into standby mode with the mechanical shutter closed when the projector is
switched off.
[FREEZE]
Pause the projected image...

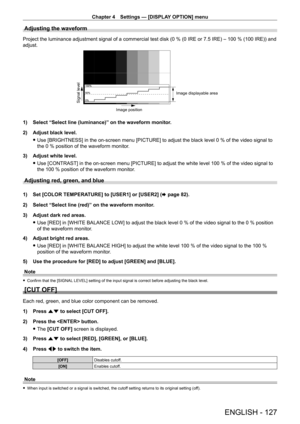

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 127
Adjusting the waveform
Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and
adjust.
Signal level
Image displayable area
Image position
1) Select “Select line (luminance)” on the waveform monitor .
2)
Adjust black level.
 fUse [BRIGHTNESS] in the on-screen menu [PICTURE] to adjust the black level 0

  % of the video signal to
the 0
  % position of the waveform monitor.
3)

Adjust white...

Chapter 4 Settings — [PROJECTOR SETUP] menu
128 - ENGLISH
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side
to enable simultaneous control or individual control via a single remote control.
1)

Press
 as to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 129

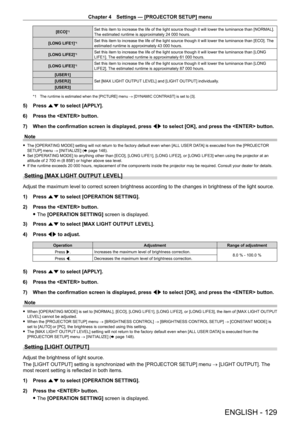

[ECO]*1Set this item to increase the life of the light source though it will lower the luminance than [NORMAL].
The estimated runtime is approximately 24  000 hours.
[LONG LIFE1]
*1Set this item to increase the life of the light source though it will lower the luminance than [ECO].  The
estimated runtime is approximately 43   000 hours.
[LONG LIFE2]
*1Set this item to increase the life of the light source though it will lower the luminance than...

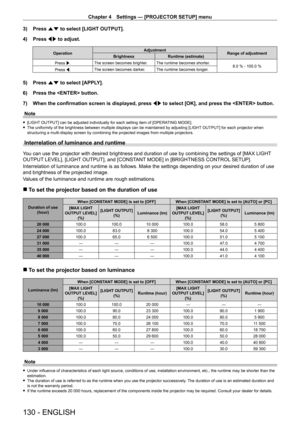

Chapter 4 Settings — [PROJECTOR SETUP] menu
130 - ENGLISH
3) Press as to select [LIGHT OUTPUT].
4)
Press
 qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime (estimate)
Press w. The screen becomes brighter. The runtime becomes shorter.
8.0
  % - 100.0   %
Press q. The screen becomes darker. The runtime becomes longer.
5) Press
as to select [APPLY].
6)
Press the  button.
7)


When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
Note
