[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press as to select [COLOR MATCHING].
2)
Press
 qw to switch the item.
 fThe...

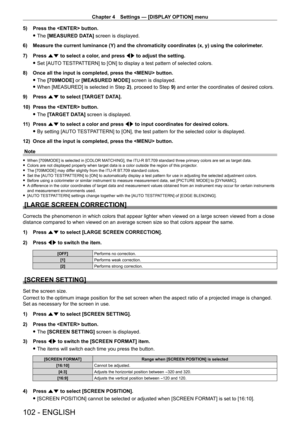

Chapter 4 Settings — [DISPLAY OPTION] menu
102 - ENGLISH
5) Press the  button.
 fThe

[MEASURED DATA] screen is displayed.
6)

Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter .
7)


Press
 as to select a color, and press qw to adjust the setting.
 fSet [AUT

O TESTPATTERN] to [ON] to display a test pattern of selected colors.
8)

Once all the input is completed, press the  button.
 fThe

[709MODE] or [MEASURED MODE] screen is displayed.
 fWhen...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 103

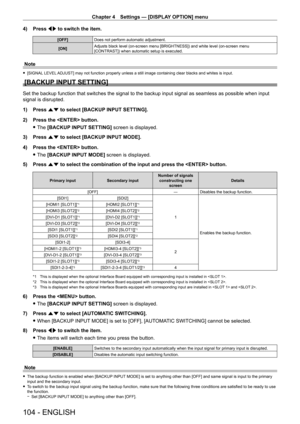

5) Press qw to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of signals automatically.
The screen display position or signal level can be adjusted automatically without pressing the
button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc.
1)

Press
 as to select [AUTO SIGNAL].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the...

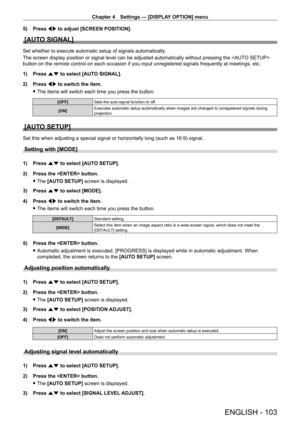

Chapter 4 Settings — [DISPLAY OPTION] menu
104 - ENGLISH
4) Press qw to switch the item.
[OFF] Does not perform automatic adjustment.
[ON] Adjusts black level (on-screen menu [BRIGHTNESS]) and white level (on-screen menu
[CONTRAST]) when automatic setup is executed.
Note
 f
[SIGNAL LEVEL ADJUST] may not function properly unless a still image containing clear blacks and whites is input.
[BACKUP INPUT SETTING]
Set the backup function that switches the signal to the backup input signal as seamless as...

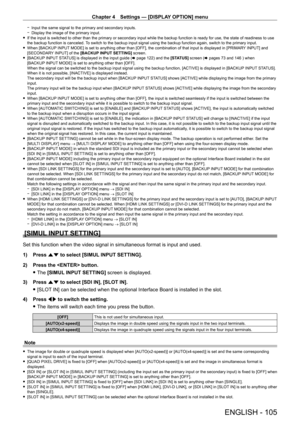

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 105
 gInput the same signal to the primary and secondary inputs. gDisplay the image of the primary input. fIf the input is switched to other than the primary or secondary input while the backup function is ready for use, the state of readiness to use
the backup function is canceled.

To switch to the backup input signal using the backup function again, switch to the primary input.
 fWhen [BACKUP

 INPUT MODE] is set to anything other than [OFF], the...

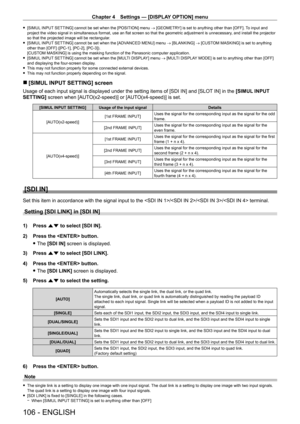

Chapter 4 Settings — [DISPLAY OPTION] menu
106 - ENGLISH
 f[SIMUL INPUT SETTING] cannot be set when the [POSITION] menu  → [GEOMETRY] is set to anything other than [OFF]. To input and
project the video signal in simultaneous format, use an flat screen so that the geometric adjustment is unnecessary , and install the projector
so that the projected image will be rectangular.
 f [SIMUL

 INPUT SETTING] cannot be set when the [ADVANCED MENU] menu  → [BLANKING] → [CUSTOM MASKING] is set to anything
other...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 107
 gWhen [MUL TI DISPLAY] → [MULTI DISPLAY MODE] is set to anything other than [OFF] and displaying the four-screen display fThe [SDI LINK] setting cannot be changed when [BACKUP
 INPUT MODE] in [BACKUP INPUT SETTING] is set as the combination used for
the SDI input equipped on the projector as standard.
 f The content set is displayed in [SDI LINK SETTINGS].
Setting [RESOLUTION] in [SDI IN]
1) Press  as to select [SDI IN].
2)
Press the  button....

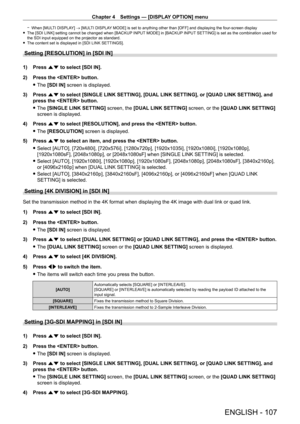

Chapter 4 Settings — [DISPLAY OPTION] menu
108 - ENGLISH
5) Press qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO] Automatically select [LEVEL A] or [LEVEL B].
[LEVEL A] Fixes the mapping method to 3G-SDI Level-A.
[LEVEL B] Fixes the mapping method to 3G-SDI Level-B.
Note
 fThis function does not operate when the SD - SDI signal or the HD - SDI signal is input.
Setting [COLOR SPACE] in [SDI IN]
1) Press as to select [SDI IN].
2)
Press the  button.
 fThe

[SDI IN]...

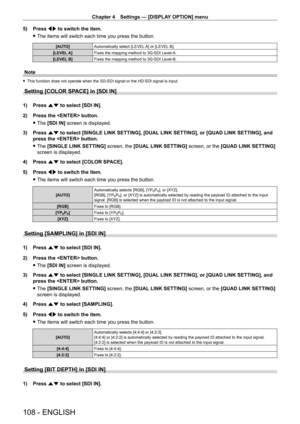

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 109
2) Press the  button.
 fThe

[SDI IN] screen is displayed.
3)

Press
 as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and
press the  button.
 f The

[SINGLE LINK SETTING]  screen, the [DUAL LINK SETTING]  screen, or the [QUAD LINK SETTING]
screen is displayed.
4)

Press
 as to select [BIT DEPTH].
5)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO]...

Chapter 4 Settings — [DISPLAY OPTION] menu
110 - ENGLISH

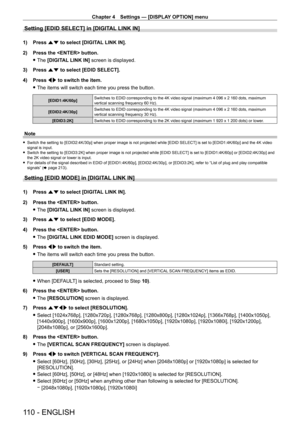

Setting [EDID SELECT] in [DIGITAL LINK IN]
1) Press as to select [DIGITAL LINK IN].
2)
Press the  button.
 fThe

[DIGITAL LINK IN] screen is displayed.
3)

Press
 as to select [EDID SELECT].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[EDID1:4K/60p] Switches to EDID corresponding to the 4K video signal (maximum 4   096   x   2   160 dots, maximum
vertical scanning frequency 60   Hz)....
