Panasonic Projector PT-RQ13K User Manual
Here you can view all the pages of manual Panasonic Projector PT-RQ13K User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

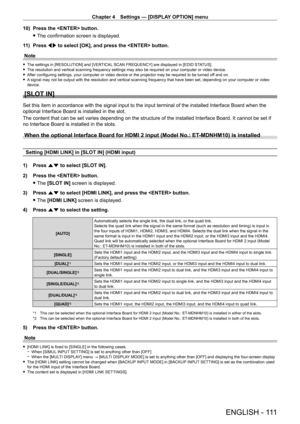

Page 111
![Page 111
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 111
10) Press the button.
fThe confirmation screen is displayed.
1
1)
Press
qw to select [OK], and press the button.
Note
f The settings in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] are displayed in [EDID STATUS]. fThe resolution and vertical scanning frequency settings may also be required on your computer or video device. fAfter configuring settings, your computer or video device or the projector may be required to be turned of f and on....](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-110.png "Page 111
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 111
10) Press the button.
fThe confirmation screen is displayed.
1
1)
Press
qw to select [OK], and press the button.
Note
f The settings in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] are displayed in [EDID STATUS]. fThe resolution and vertical scanning frequency settings may also be required on your computer or video device. fAfter configuring settings, your computer or video device or the projector may be required to be turned of f and on....")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 111 10) Press the button. fThe confirmation screen is displayed. 1 1) Press qw to select [OK], and press the button. Note f The settings in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] are displayed in [EDID STATUS]. fThe resolution and vertical scanning frequency settings may also be required on your computer or video device. fAfter configuring settings, your computer or video device or the projector may be required to be turned of f and on....

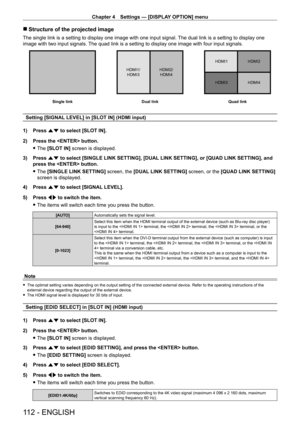

Page 112
![Page 112
Chapter 4 Settings — [DISPLAY OPTION] menu
112 - ENGLISH
rStructure of the projected image
The single link is a setting to display one image with one input signal. The dual link is a setting to display one
image with two input signals. The quad link is a setting to display one image with four input signals.
Dual link
HDMI1/
HDMI3 HDMI1 HDMI2
HDMI3 HDMI4
HDMI2/
HDMI4
Quad link
Single link
Setting [SIGNAL LEVEL] in [SLOT IN] (HDMI input)
1)
Press
as to select [SLOT IN].
2)
Press the button.
f...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-111.png "Page 112
Chapter 4 Settings — [DISPLAY OPTION] menu
112 - ENGLISH
rStructure of the projected image
The single link is a setting to display one image with one input signal. The dual link is a setting to display one
image with two input signals. The quad link is a setting to display one image with four input signals.
Dual link
HDMI1/
HDMI3 HDMI1 HDMI2
HDMI3 HDMI4
HDMI2/
HDMI4
Quad link
Single link
Setting [SIGNAL LEVEL] in [SLOT IN] (HDMI input)
1)
Press
as to select [SLOT IN].
2)
Press the button.
f...")
Chapter 4 Settings — [DISPLAY OPTION] menu 112 - ENGLISH rStructure of the projected image The single link is a setting to display one image with one input signal. The dual link is a setting to display one image with two input signals. The quad link is a setting to display one image with four input signals. Dual link HDMI1/ HDMI3 HDMI1 HDMI2 HDMI3 HDMI4 HDMI2/ HDMI4 Quad link Single link Setting [SIGNAL LEVEL] in [SLOT IN] (HDMI input) 1) Press as to select [SLOT IN]. 2) Press the button. f...

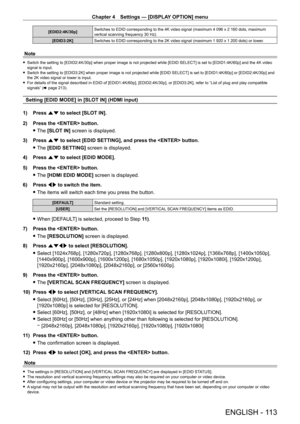

Page 113
![Page 113
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 113
[EDID2:4K/30p]Switches to EDID corresponding to the 4K video signal (maximum 4 096 x 2 160 dots, maximum
vertical scanning frequency 30 Hz).
[EDID3:2K] Switches to EDID corresponding to the 2K video signal (maximum 1
920 x 1 200 dots) or lower.
Note
fSwitch the setting to [EDID2:4K/30p] when proper image is not projected while [EDID SELECT] is set to [EDID1:4K/60p] and the 4K video
signal is input.
fSwitch the setting to...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-112.png "Page 113
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 113
[EDID2:4K/30p]Switches to EDID corresponding to the 4K video signal (maximum 4 096 x 2 160 dots, maximum
vertical scanning frequency 30 Hz).
[EDID3:2K] Switches to EDID corresponding to the 2K video signal (maximum 1
920 x 1 200 dots) or lower.
Note
fSwitch the setting to [EDID2:4K/30p] when proper image is not projected while [EDID SELECT] is set to [EDID1:4K/60p] and the 4K video
signal is input.
fSwitch the setting to...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 113 [EDID2:4K/30p]Switches to EDID corresponding to the 4K video signal (maximum 4 096 x 2 160 dots, maximum vertical scanning frequency 30 Hz). [EDID3:2K] Switches to EDID corresponding to the 2K video signal (maximum 1 920 x 1 200 dots) or lower. Note fSwitch the setting to [EDID2:4K/30p] when proper image is not projected while [EDID SELECT] is set to [EDID1:4K/60p] and the 4K video signal is input. fSwitch the setting to...

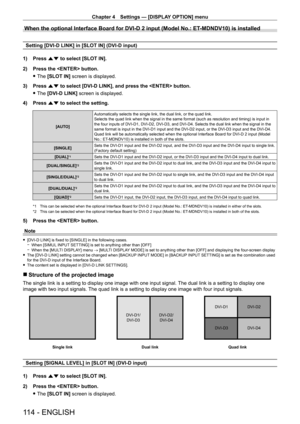

Page 114
![Page 114
Chapter 4 Settings — [DISPLAY OPTION] menu
114 - ENGLISH
When the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed
Setting [DVI-D LINK] in [SLOT IN] (DVI-D input)
1)
Press
as to select [SLOT IN].
2)
Press the button.
f The
[SLOT IN] screen is displayed.
3)
Press
as to select [DVI-D LINK], and press the button.
fThe
[DVI-D LINK] screen is displayed.
4)
Press
as to select the setting.
[AUTO] Automatically selects the single link, the dual link, or the...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-113.png "Page 114
Chapter 4 Settings — [DISPLAY OPTION] menu
114 - ENGLISH
When the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed
Setting [DVI-D LINK] in [SLOT IN] (DVI-D input)
1)
Press
as to select [SLOT IN].
2)
Press the button.
f The
[SLOT IN] screen is displayed.
3)
Press
as to select [DVI-D LINK], and press the button.
fThe
[DVI-D LINK] screen is displayed.
4)
Press
as to select the setting.
[AUTO] Automatically selects the single link, the dual link, or the...")
Chapter 4 Settings — [DISPLAY OPTION] menu 114 - ENGLISH When the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed Setting [DVI-D LINK] in [SLOT IN] (DVI-D input) 1) Press as to select [SLOT IN]. 2) Press the button. f The [SLOT IN] screen is displayed. 3) Press as to select [DVI-D LINK], and press the button. fThe [DVI-D LINK] screen is displayed. 4) Press as to select the setting. [AUTO] Automatically selects the single link, the dual link, or the...

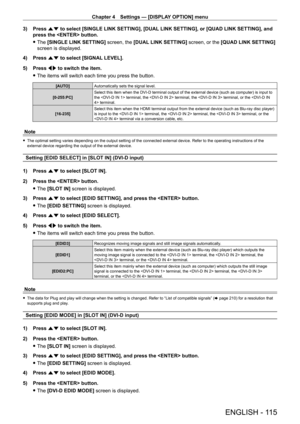

Page 115
![Page 115
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 115
3) Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and
press the button.
f The
[SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING]
screen is displayed.
4)
Press
as to select [SIGNAL LEVEL].
5)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Automatically sets the signal level.
[0-255:PC] Select this item when the...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-114.png "Page 115
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 115
3) Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and
press the button.
f The
[SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING]
screen is displayed.
4)
Press
as to select [SIGNAL LEVEL].
5)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Automatically sets the signal level.
[0-255:PC] Select this item when the...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 115 3) Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed. 4) Press as to select [SIGNAL LEVEL]. 5) Press qw to switch the item. fThe items will switch each time you press the button. [AUTO] Automatically sets the signal level. [0-255:PC] Select this item when the...

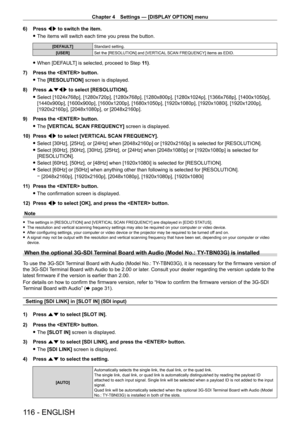

Page 116
![Page 116
Chapter 4 Settings — [DISPLAY OPTION] menu
116 - ENGLISH
6) Press qw to switch the item.
fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[USER] Set the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
fWhen [DEF AULT] is selected, proceed to Step 11 ) .
7)
Press the button.
f The
[RESOLUTION] screen is displayed.
8)
Press
asqw to select [RESOLUTION].
fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p],...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-115.png "Page 116
Chapter 4 Settings — [DISPLAY OPTION] menu
116 - ENGLISH
6) Press qw to switch the item.
fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[USER] Set the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
fWhen [DEF AULT] is selected, proceed to Step 11 ) .
7)
Press the button.
f The
[RESOLUTION] screen is displayed.
8)
Press
asqw to select [RESOLUTION].
fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p],...")
Chapter 4 Settings — [DISPLAY OPTION] menu 116 - ENGLISH 6) Press qw to switch the item. fThe items will switch each time you press the button. [DEFAULT] Standard setting. [USER] Set the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID. fWhen [DEF AULT] is selected, proceed to Step 11 ) . 7) Press the button. f The [RESOLUTION] screen is displayed. 8) Press asqw to select [RESOLUTION]. fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p],...

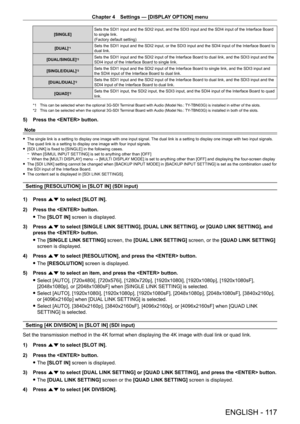

Page 117
![Page 117
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 117
[SINGLE]Sets the SDI1 input and the SDI2 input, and the SDI3 input and the SDI4 input of the Interface Board
to single link.
(Factory default setting)
[DUAL]
*1Sets the SDI1 input and the SDI2 input, or the SDI3 input and the SDI4 input of the Interface Board to
dual link.
[DUAL/SINGLE]
*2Sets the SDI1 input and the SDI2 input of the Interface Board to dual link, and the SDI3 input and the
SDI4 input of the Interface Board to single link....](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-116.png "Page 117
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 117
[SINGLE]Sets the SDI1 input and the SDI2 input, and the SDI3 input and the SDI4 input of the Interface Board
to single link.
(Factory default setting)
[DUAL]
*1Sets the SDI1 input and the SDI2 input, or the SDI3 input and the SDI4 input of the Interface Board to
dual link.
[DUAL/SINGLE]
*2Sets the SDI1 input and the SDI2 input of the Interface Board to dual link, and the SDI3 input and the
SDI4 input of the Interface Board to single link....")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 117 [SINGLE]Sets the SDI1 input and the SDI2 input, and the SDI3 input and the SDI4 input of the Interface Board to single link. (Factory default setting) [DUAL] *1Sets the SDI1 input and the SDI2 input, or the SDI3 input and the SDI4 input of the Interface Board to dual link. [DUAL/SINGLE] *2Sets the SDI1 input and the SDI2 input of the Interface Board to dual link, and the SDI3 input and the SDI4 input of the Interface Board to single link....

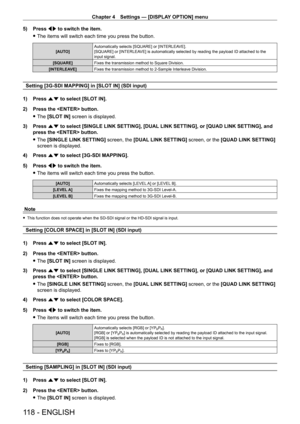

Page 118
![Page 118
Chapter 4 Settings — [DISPLAY OPTION] menu
118 - ENGLISH
5) Press qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Automatically selects [SQUARE] or [INTERLEAVE].
[SQUARE] or [INTERLEAVE] is automatically selected by reading the payload ID attached to the
input signal.
[SQUARE] Fixes the transmission method to Square Division.
[INTERLEAVE] Fixes the transmission method to 2-Sample Interleave Division.
Setting [3G-SDI MAPPING] in [SLOT IN] (SDI input)
1)
Press
as...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-117.png "Page 118
Chapter 4 Settings — [DISPLAY OPTION] menu
118 - ENGLISH
5) Press qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Automatically selects [SQUARE] or [INTERLEAVE].
[SQUARE] or [INTERLEAVE] is automatically selected by reading the payload ID attached to the
input signal.
[SQUARE] Fixes the transmission method to Square Division.
[INTERLEAVE] Fixes the transmission method to 2-Sample Interleave Division.
Setting [3G-SDI MAPPING] in [SLOT IN] (SDI input)
1)
Press
as...")
Chapter 4 Settings — [DISPLAY OPTION] menu 118 - ENGLISH 5) Press qw to switch the item. fThe items will switch each time you press the button. [AUTO] Automatically selects [SQUARE] or [INTERLEAVE]. [SQUARE] or [INTERLEAVE] is automatically selected by reading the payload ID attached to the input signal. [SQUARE] Fixes the transmission method to Square Division. [INTERLEAVE] Fixes the transmission method to 2-Sample Interleave Division. Setting [3G-SDI MAPPING] in [SLOT IN] (SDI input) 1) Press as...

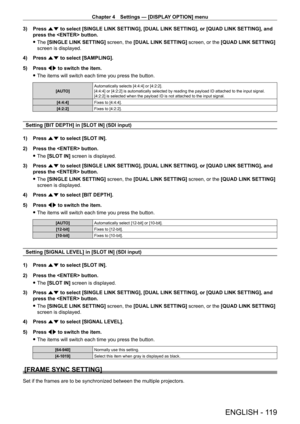

Page 119
![Page 119
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 119
3) Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and
press the button.
f The
[SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING]
screen is displayed.
4)
Press
as to select [SAMPLING].
5)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Automatically selects [4:4:4] or [4:2:2].
[4:4:4] or [4:2:2] is automatically...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-118.png "Page 119
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 119
3) Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and
press the button.
f The
[SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING]
screen is displayed.
4)
Press
as to select [SAMPLING].
5)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Automatically selects [4:4:4] or [4:2:2].
[4:4:4] or [4:2:2] is automatically...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 119 3) Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed. 4) Press as to select [SAMPLING]. 5) Press qw to switch the item. fThe items will switch each time you press the button. [AUTO] Automatically selects [4:4:4] or [4:2:2]. [4:4:4] or [4:2:2] is automatically...

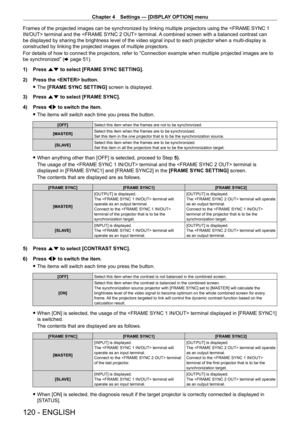

Page 120
![Page 120
Chapter 4 Settings — [DISPLAY OPTION] menu
120 - ENGLISH
Frames of the projected images can be synchronized by linking multiple projectors using the terminal and the terminal. A combined screen with a balanced contrast can
be displayed by sharing the brightness level of the video signal input to each projector when a multi-display is
constructed by linking the projected images of multiple projectors.
For details of how to connect the projectors, refer to “Connection example when multiple projected...](http://img.usermanuals.tech/thumb/58/100456/w300_projector_manual_9142_d-119.png "Page 120
Chapter 4 Settings — [DISPLAY OPTION] menu
120 - ENGLISH
Frames of the projected images can be synchronized by linking multiple projectors using the terminal and the terminal. A combined screen with a balanced contrast can
be displayed by sharing the brightness level of the video signal input to each projector when a multi-display is
constructed by linking the projected images of multiple projectors.
For details of how to connect the projectors, refer to “Connection example when multiple projected...")
Chapter 4 Settings — [DISPLAY OPTION] menu 120 - ENGLISH Frames of the projected images can be synchronized by linking multiple projectors using the terminal and the terminal. A combined screen with a balanced contrast can be displayed by sharing the brightness level of the video signal input to each projector when a multi-display is constructed by linking the projected images of multiple projectors. For details of how to connect the projectors, refer to “Connection example when multiple projected...
