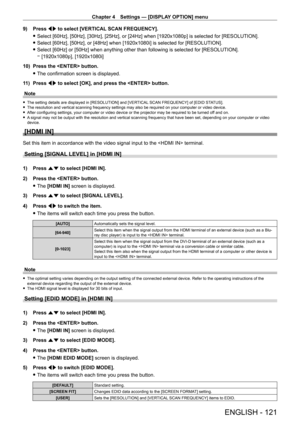

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 121
9) Press qw to select [VERTICAL SCAN FREQUENCY].
 fSelect [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
 fSelect [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
 fSelect [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION].
 g[1920x1080p], [1920x1080i]
10)


Press the  button.
 fThe confirmation screen is displayed.
1

1)
Press
 qw to select [OK],...

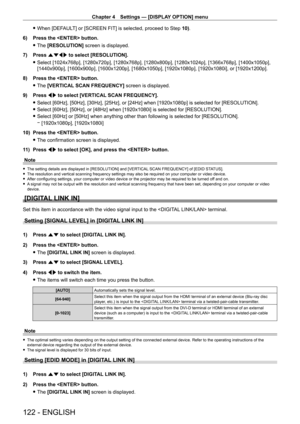

Chapter 4 Settings — [DISPLAY OPTION] menu
122 - ENGLISH
 fWhen [DEF AULT] or [SCREEN FIT] is selected, proceed to Step  10).
6)

Press the  button.
 f The

[RESOLUTION] screen is displayed.
7)

Press
 asqw  to select [RESOLUTION].
 fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],
[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8)


Press the  button.
 f The

[VERTICAL SCAN FREQUENCY] screen is...

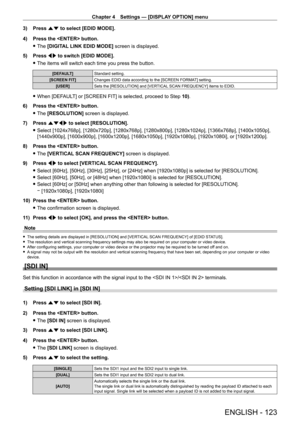

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 123
3) Press as to select [EDID MODE].
4)
Press the  button.
 fThe

[DIGITAL LINK EDID MODE] screen is displayed.
5)

Press
 qw to switch [EDID MODE].
 fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items to EDID.
 fWhen [DEF AULT] or [SCREEN FIT] is selected, proceed to Step  10)....

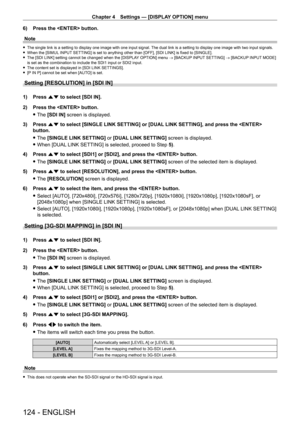

Chapter 4 Settings — [DISPLAY OPTION] menu
124 - ENGLISH
6) Press the  button.
Note
 f The single link is a setting to display one image with one input signal.\
  The dual link is a setting to display one image with two input signals. fWhen the [SIMUL
 INPUT SETTING] is set to anything other than [OFF], [SDI LINK] is fixed to [SINGLE].
 fThe [SDI LINK] setting cannot be changed when the [DISPLA

Y OPTION] menu → [BACKUP INPUT SETTING]  → [BACKUP INPUT MODE]
is set as the combination to include the SDI1...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 125

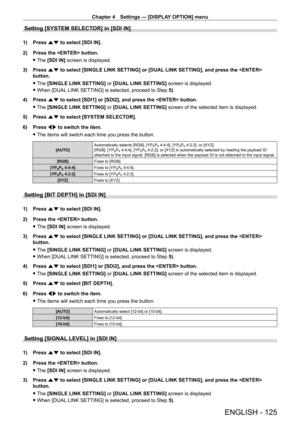

Setting [SYSTEM SELECTOR] in [SDI IN]
1) Press as to select [SDI IN].
2)
Press the  button.
 fThe

[SDI IN] screen is displayed.
3)

Press
 as to select [SINGLE LINK SETTING] or [DUAL LINK SETTING], and press the
button.
 f The

[SINGLE LINK SETTING]  or [DUAL LINK SETTING]  screen is displayed.
 fWhen [DUAL

 LINK SETTING] is selected, proceed to Step 5).
4)

Press
 as to select [SDI1] or [SDI2], and press the  button.
 fThe

[SINGLE...

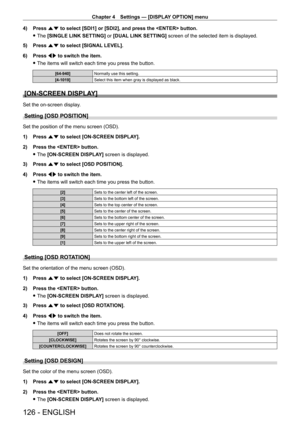

Chapter 4 Settings — [DISPLAY OPTION] menu
126 - ENGLISH
4) Press as to select [SDI1] or [SDI2], and press the  button.
 fThe

[SINGLE LINK SETTING]  or [DUAL LINK SETTING]  screen of the selected item is displayed.
5)

Press
 as to select [SIGNAL LEVEL].
6)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[64-940] Normally use this setting.
[4-1019] Select this item when gray is displayed as black.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD...

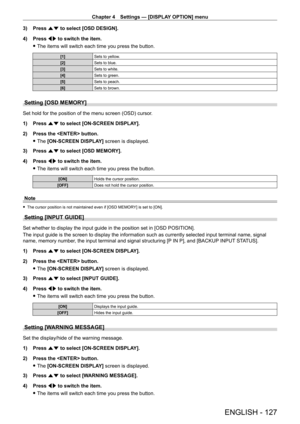

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 127
3) Press as to select [OSD DESIGN].
4)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[1] Sets to yellow.
[2] Sets to blue.
[3] Sets to white.
[4] Sets to green.
[5] Sets to peach.
[6] Sets to brown.
Setting [OSD MEMORY]
Set hold for the position of the menu screen (OSD) cursor.
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press...

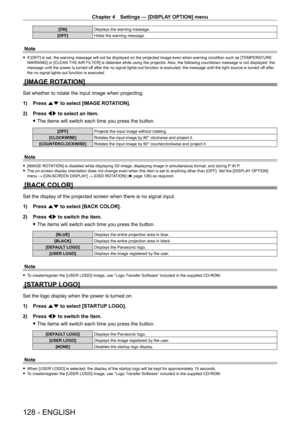

Chapter 4 Settings — [DISPLAY OPTION] menu
128 - ENGLISH
[ON]Displays the warning message.
[OFF] Hides the warning message.
Note
 fIf [OFF] is set, the warning message will not be displayed on the projected image even when warning condition such as [TEMPERA TURE
W ARNING] or [CLEAN THE AIR FILTER] is detected while using the projector. Also, the following countdown message is not displayed: the
message until the power is turned off after the no signal lights-out function is executed; the message until...

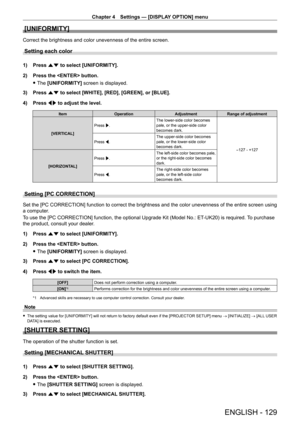

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 129
[UNIFORMITY]
Correct the brightness and color unevenness of the entire screen.
Setting each color
1) Press as to select [UNIFORMITY].
2)
Press the  button.
 fThe

[UNIFORMITY] screen is displayed.
3)

Press
 as to select [WHITE], [RED], [GREEN], or [BLUE].
4)

Press
 qw to adjust the level.
Item Operation AdjustmentRange of adjustment
[VERTICAL] Press w.
The lower-side color becomes
pale, or the upper-side color
becomes dark.
-127 - +127...

Chapter 4 Settings — [DISPLAY OPTION] menu
130 - ENGLISH

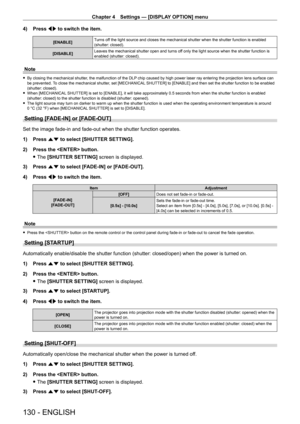

4) Press qw to switch the item.
[ENABLE] Turns off the light source and closes the mechanical shutter when the shutter fu\
nction is enabled
(shutter: closed).
[DISABLE] Leaves the mechanical shutter open and turns off only the light source when the shutter function is
enabled (shutter: closed).
Note
 f
By closing the mechanical shutter , the malfunction of the DLP chip caused by high power laser ray entering the projection lens surface can
be...
