Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 131

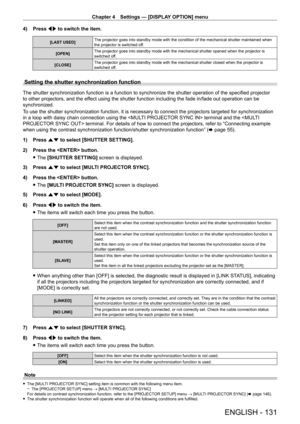

4) Press qw to switch the item.
[LAST USED] The projector goes into standby mode with the condition of the mechanica\
l shutter maintained when
the projector is switched off.
[OPEN] The projector goes into standby mode with the mechanical shutter opened \
when the projector is
switched off.
[CLOSE] The projector goes into standby mode with the mechanical shutter closed \
when the projector is
switched off.
Setting the shutter synchronization...

Chapter 4 Settings — [DISPLAY OPTION] menu
132 - ENGLISH

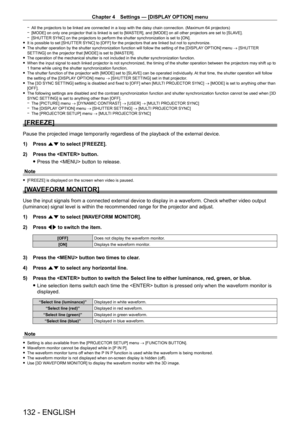

 gAll the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors) g[MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLA VE]. g[SHUTTER SYNC] on the projectors to perform the shutter synchronization is set to [ON]. fIt is possible to set [SHUTTER SYNC] to [OFF] for the projectors that are linked but not to synchronize. fThe shutter...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 133

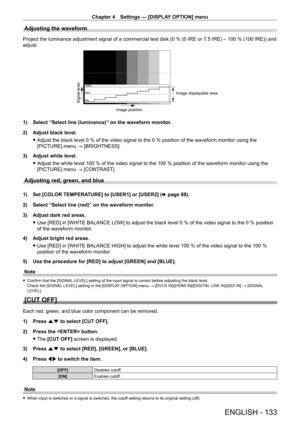

Adjusting the waveform
Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and
adjust.
Signal level
Image displayable area
Image position
1) Select “Select line (luminance)” on the waveform monitor .
2)
Adjust black level.
 fAdjust the black level 0

  % of the video signal to the 0   % position of the waveform monitor using the
[PICTURE] menu → [BRIGHTNESS].
3)

Adjust white level....

Chapter 4 Settings — [PROJECTOR SETUP] menu
134 - ENGLISH
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side
to enable simultaneous control or individual control via a single remote\
 control.
1)

Press
 as...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 135

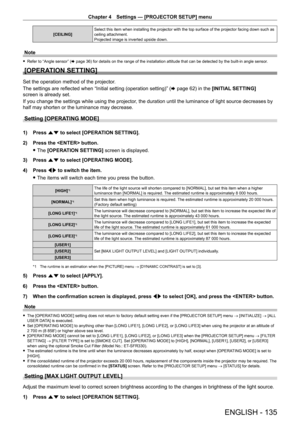

[CEILING]Select this item when installing the projector with the top surface of t\
he projector facing down such as
ceiling attachment.
Projected image is inverted upside down.
Note
 f
Refer to “Angle sensor” ( x   page   36) for details on the range of the installation attitude that can be d\
etected by the built-in angle sensor.
[OPERATION SETTING]
Set the operation method of the projector.
The settings are reflected when “Initial setting...

Chapter 4 Settings — [PROJECTOR SETUP] menu
136 - ENGLISH
2) Press the  button.
 fThe

[OPERATION SETTING]  screen is displayed.
3)

Press
 as to select [MAX LIGHT OUTPUT LEVEL].
4)

Press
 qw to adjust.
Operation AdjustmentRange of adjustment
Press w. Increases the maximum level of brightness correction.
8.0
  % - 100.0   %
Press q. Decreases the maximum level of brightness correction.
5) Press
as to select [APPLY].
6)
Press the  button.
7)


When the confirmation screen is displayed, press...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 137

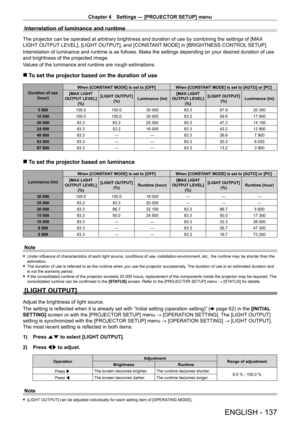

Interrelation of luminance and runtime
The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX
LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].
Interrelation of luminance and runtime is as follows. Make the settings depending on your desired duration of use
and brightness of the projected image.
Values of the luminance and runtime are rough estimations....

Chapter 4 Settings — [PROJECTOR SETUP] menu
138 - ENGLISH
 fIn such a case when configuring multiple screens with multiple projectors, uniformity of brightness between multiple screens can be
obtained by adjusting [LIGHT
 OUTPUT].

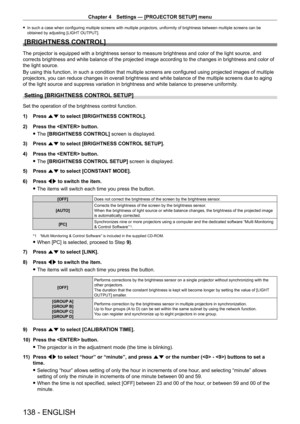

[BRIGHTNESS CONTROL]
The projector is equipped with a brightness sensor to measure brightness and color of the light source, and
corrects brightness and white balance of the projected image according t\
o the changes in brightness and color of
the light source.
By using this...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 139

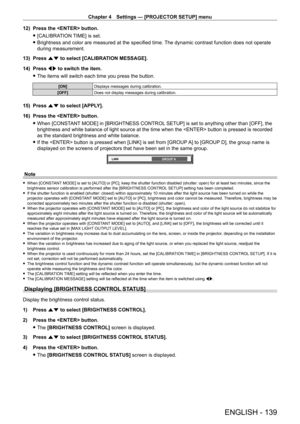

12) Press the  button.
 f[CALIBRA

TION TIME] is set.
 fBrightness and color are measured at the specified time.

The dynamic contrast function does not operate
during measurement.
13)

Press
 as to select [CALIBRATION MESSAGE].
14)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays messages during calibration.
[OFF] Does not display messages during calibration.
15) Press as to select...

Chapter 4 Settings — [PROJECTOR SETUP] menu
140 - ENGLISH

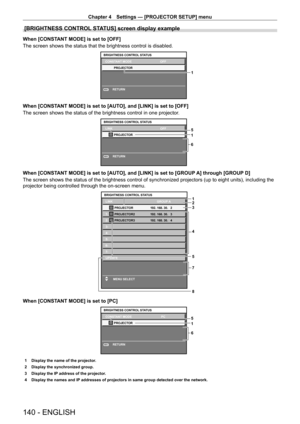

[BRIGHTNESS CONTROL STATUS] screen display example
When [CONSTANT MODE] is set to [OFF]
The screen shows the status that the brightness control is disabled.
1
RETURN
BRIGHTNESS CONTROL STATUS
CONSTANT MODE PROJECTOR OFFMENU
When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one projector.
5
1
6
RETURN
LINK
PROJECTOR OFF
BRIGHTNESS CONTROL STATUSMENU
When [CONSTANT MODE] is set...
