Panasonic Uf 5500 Operating Instructions Manual

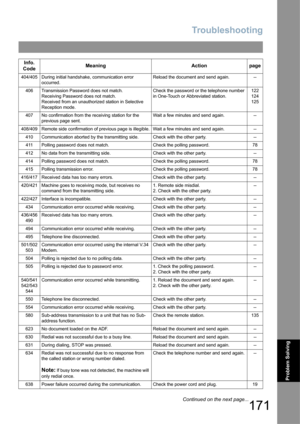

Troubleshooting
171
Problem Solving
404/405 During initial handshake, communication error
occurred.Reload the document and send again. --
406 Transmission Password does not match.
Receiving Password does not match.
Received from an unauthorized station in Selective
Reception mode.Check the password or the telephone number
in One-Touch or Abbreviated station.122
124
125
407 No confirmation from the receiving station for the
previous page sent.Wait a few minutes and send again. --
408/409 Remote side...

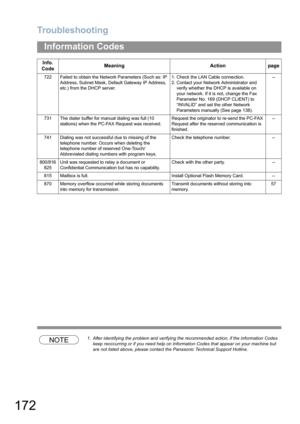

Troubleshooting
172
Information Codes
NOTE1. After identifying the problem and verifying the recommended action, if the information Codes
keep reoccurring or if you need help on Information Codes that appear on your machine but
are not listed above, please contact the Panasonic Technical Support Hotline. 722 Failed to obtain the Network Parameters (Such as: IP
Address, Subnet Mask, Default Gateway IP Address,
etc.) from the DHCP server.1. Check the LAN Cable connection.
2. Contact your Network...

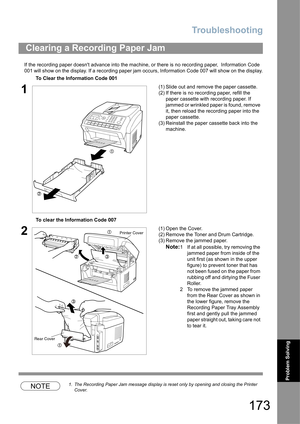

Troubleshooting
173
Problem Solving
If the recording paper doesnt advance into the machine, or there is no recording paper,  Information Code
001 will show on the display. If a recording paper jam occurs, Information Code 007 will show on the display.
NOTE1. The Recording Paper Jam message display is reset only by opening and closing the Printer
Cover.
Clearing a Recording Paper Jam
To Clear the Information Code 001
1(1) Slide out and remove the paper cassette.
(2) If there is no recording paper,...

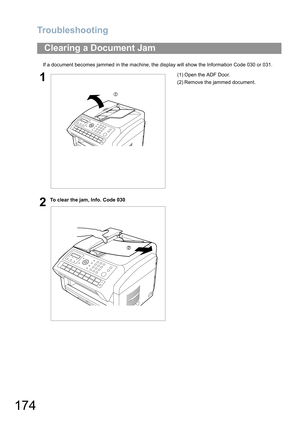

Troubleshooting
174
If a document becomes jammed in the machine, the display will show the Information Code 030 or 031.
Clearing a Document Jam
1(1) Open the ADF Door.
(2) Remove the jammed document.
2To clear the jam, Info. Code 030

Troubleshooting
175
Problem Solving

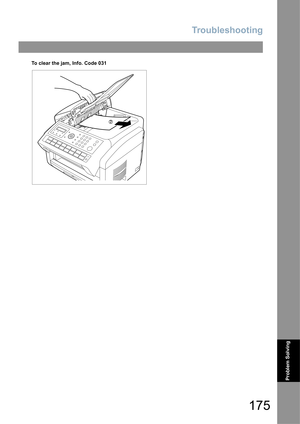

To clear the jam, Info. Code 031

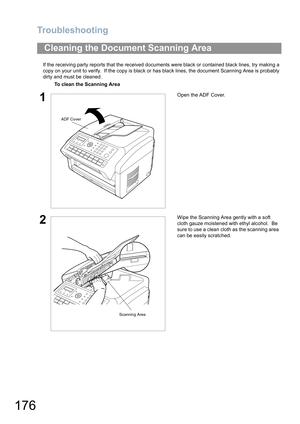

Troubleshooting
176
If the receiving party reports that the received documents were black or contained black lines, try making a
copy on your unit to verify.  If the copy is black or has black lines, the document Scanning Area is probably
dirty and must be cleaned.
Cleaning the Document Scanning Area
To clean the Scanning Area
1Open the ADF Cover.
2Wipe the Scanning Area gently with a soft
cloth gauze moistened with ethyl alcohol.  Be
sure to use a clean cloth as the scanning area
can be easily...

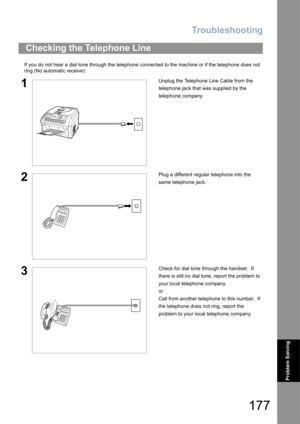

Troubleshooting
177
Problem Solving
If you do not hear a dial tone through the telephone connected to the machine or if the telephone does not
ring (No automatic receive).
Checking the Telephone Line
1Unplug the Telephone Line Cable from the
telephone jack that was supplied by the
telephone company.
2Plug a different regular telephone into the
same telephone jack.
3Check for dial tone through the handset.  If
there is still no dial tone, report the problem to
your local telephone company.
or
Call...

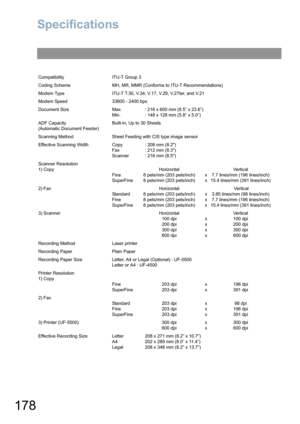

178
Appendix
Specifications
Compatibility ITU-T Group 3
Coding Scheme MH, MR, MMR (Conforms to ITU-T Recommendations)
Modem Type ITU-T T.30, V.34, V.17, V.29, V.27ter, and V.21
Modem Speed 33600 - 2400 bps
Document Size Max. : 216 x 600 mm (8.5” x 23.6”)
Min. : 148 x 128 mm (5.8” x 5.0”)
ADF Capacity
(Automatic Document Feeder)Built-in, Up to 30 Sheets
Scanning Method Sheet Feeding with CIS type image sensor
Effective Scanning Width Copy : 208 mm (8.2)
Fax : 212 mm (8.3)
Scanner : 216 mm (8.5)
Scanner...

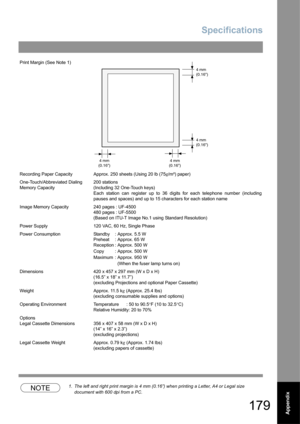

Specifications
179Appendix
NOTE1. The left and right print margin is 4 mm (0.16”) when printing a Letter, A4 or Legal size
document with 600 dpi from a PC. Print Margin (See Note 1)
Recording Paper Capacity Approx. 250 sheets (Using 20 lb (75g/m²) paper)
One-Touch/Abbreviated Dialing
Memory Capacity200 stations
(Including 32 One-Touch keys)
Each station can register up to 36 digits for each telephone number (including
pauses and spaces) and up to 15 characters for each station name
Image Memory...

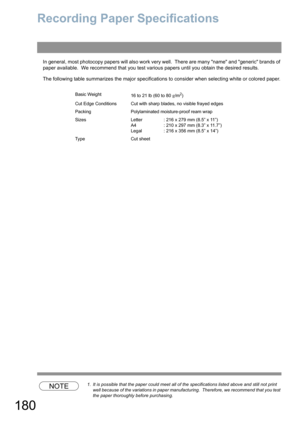

180
Recording Paper Specifications
In general, most photocopy papers will also work very well.  There are many name and generic brands of
paper available.  We recommend that you test various papers until you obtain the desired results.
The following table summarizes the major specifications to consider when selecting white or colored paper.
NOTE1. It is possible that the paper could meet all of the specifications listed above and still not print
well because of the variations in paper manufacturing....
