Panasonic Uf 5500 Operating Instructions Manual

Installing the Printer Driver and Application Software
141
General Description
Panasonic Document Management System
(UF-5500 Only)

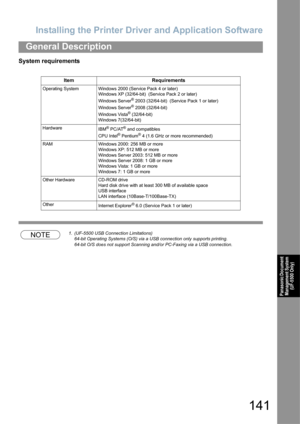

System requirements
NOTE1. (UF-5500 USB Connection Limitations)
64-bit Operating Systems (O/S) via a U SB connection only supports printing.
64-bit O/S does not support Scanning and/ or PC-Faxing via a USB connection.
ItemRequirements
Operating System Windows 2000 (Service Pack 4 or later)
Windows XP (32/64-bit)  (Service Pack 2 or later)
Windows Server
® 2003 (32/64-bit)...

Installing the Printer Driver and Application Software
142
Do not connect the USB Cable until you reach the step 4.

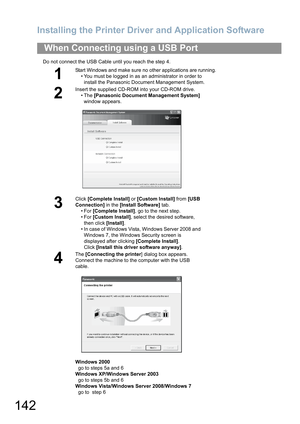

When Connecting using a USB Port
1
Start Windows and make sure no other applications are running.
• You must be logged in as an administrator in order to
install the Panasonic Document Management System.
2
Insert the supplied CD-ROM into your CD-ROM drive.
•The [Panasonic Document Management System]
window appears.
3
Click [Complete Install] or [Custom Install] from [USB
Connection] in...

Installing the Printer Driver and Application Software
143
When Connecting using a USB Port
Panasonic Document Management System
(UF-5500 Only)

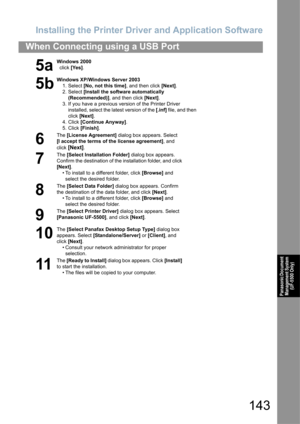

5a
Windows 2000
  click  [Yes].
5b
Windows XP/Windows Server 2003
1. Select  [No, not this time] , and then click [Next].
2. Select  [Install the software automatically
(Recommended)] , and then click [Next] .
3. If you have a previous version of the Printer Driver  installed, select the  latest version of the  [.inf] file, and then
click  [Next] .
4. Click...

Installing the Printer Driver and Application Software
144

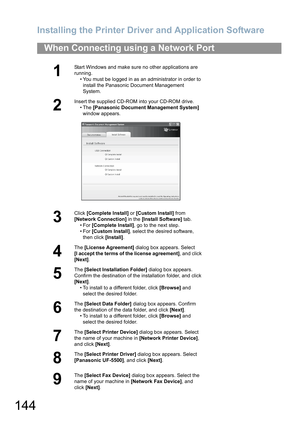

When Connecting using a Network Port
1
Start Windows and make sure no other applications are
running.• You must be logged in as an administrator in order to install the Panasonic Document Management
System.
2
Insert the supplied CD-ROM into your CD-ROM drive. •The  [Panasonic Document Management System]
window appears.
3
Click  [Complete Install]  or [Custom Install]  from
[Network Connection]  in the [Install Software]  tab.
•For  [Complete...

Installing the Printer Driver and Application Software
145
When Connecting using a Network Port
Panasonic Document Management System
(UF-5500 Only)

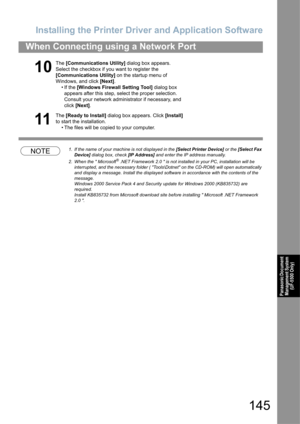

NOTE1. If the name of your machi ne is not displayed in the [Select Printer Device] or the [Select Fax
Device]  dialog box, check  [IP Address] and enter the IP address manually.
2. When the  Microsoft
® .NET Framework 2.0  is not installed in your PC, installation will be
interrupted, and the necessary folder ( Tools\Dotnet on the CD-ROM) will open...

146

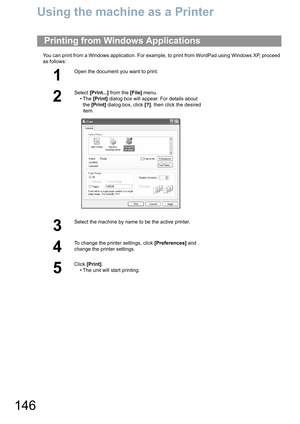

Using the machine as a Printer
You can print from a Windows application. For example, to print from WordPad using Windows XP, proceed
as follows:
Printing from Windows Applications
1
Open the document you want to print.
2
Select [Print...] from the [File] menu.
•The [Print] dialog box will appear. For details about
the [Print] dialog box, click [?], then click the desired
item.
3
Select the machine by name to be the active printer.
4
To change the printer settings, click [Preferences] and
change...

147
Panasonic Document
Management System
(UF-5500 Only)

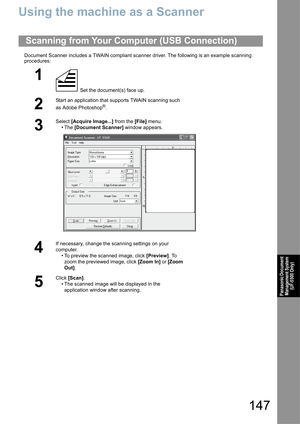

Using the machine as a Scanner
Document Scanner includes a TWAIN compliant scanner driver. The following is an example scanning
procedures:
Scanning from Your Computer (USB Connection)
1
 Set the document(s) face up.
2
Start an application that supports TWAIN scanning such
as Adobe Photoshop
®.
3
Select [Acquire Image...] from the [File] menu.
•The [Document Scanner] window appears.
4
If necessary, change the scanning settings on your...

Using the machine as a Scanner
148

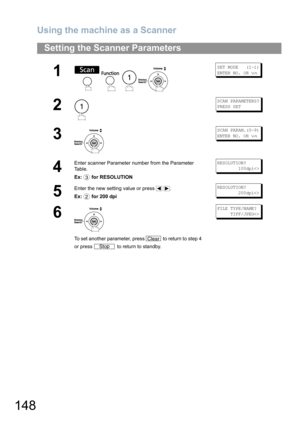

Setting the Scanner Parameters
1

SET MODE   (1-1)
ENTER NO. OR
∨∧
2
SCAN PARAMETERS?
PRESS SET
3
SCAN PARAM.(0-9)
ENTER NO. OR
∨∧
4
Enter scanner Parameter number from the Parameter
Table.
Ex: for RESOLUTIONRESOLUTION?
        100dpi
5
Enter the new setting value or press    .
Ex: for 200 dpiRESOLUTION?
        200dpi
6
To set another parameter, press   to return to step 4
or press   to return to standby.
FILE TYPE/NAME?
     TIFF/JPEG
1
1
3
2
Clear
Stop

Using the machine as a Scanner
149
Panasonic Document
Management System
(UF-5500 Only)
General User Mode
Key Operator Mode

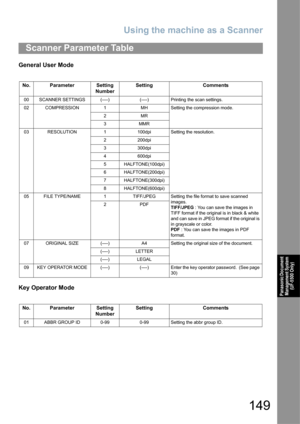

Scanner Parameter Table
No. Parameter Setting
NumberSetting Comments
00 SCANNER SETTINGS (----) (----)Printing the scan settings.
02 COMPRESSION 1 MH Setting the compression mode.
2MR
3MMR
03 RESOLUTION 1 100dpi Setting the resolution.
2 200dpi
3 300dpi
4 600dpi
5 HALFTONE(100dpi)
6 HALFTONE(200dpi)
7 HALFTONE(300dpi)
8 HALFTONE(600dpi)
05 FILE TYPE/NAME 1 TIFF/JPEG Setting the...

Using the machine as a Scanner
150

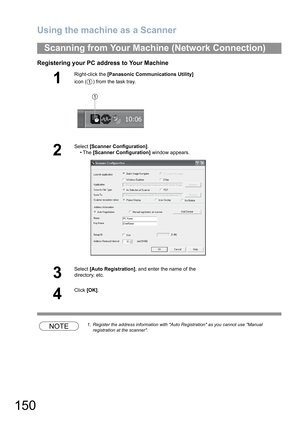

Registering your PC address to Your Machine
NOTE1. Register the address information with Auto Registration as you cannot use Manual
registration at the scanner.
Scanning from Your Machine (Network Connection)
1
Right-click the [Panasonic Communications Utility]
icon ( ) from the task tray.
2
Select [Scanner Configuration].
•The [Scanner Configuration] window appears.
3
Select [Auto Registration], and enter the name of the
directory, etc.
4
Click [OK].
1
