NEC Neax 2400 Ipx Feature Programming Manual

NEAX2400 IPX Feature Programming ManualPage 648NDA-24297, Issue 1
S-4D Splitting - Dterm
S-4D  Splitting - Dterm
General Description
This feature allows a Dtermuser to alternately converse between two separate parties while one party is connected
and one party remains on hold. The user uses the TRANSFER button to alternate conversations between the two
parties.
Operating Procedure
While a conversation is in progress
1. Press the TRANSFER key; hear special dial tone.
2. Dial the new number; the first...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 649
Station-Controlled Conference S-6
S-6 Station-Controlled Conference
General Description
This feature allows any NEAX2400 IPX station to establish a conference. The conference may be any combination
of stations and/or trunks (inside and outside parties).
Operating Procedure
Procedure 1 (MEET-ME CONFERENCE)
1. User wishing to establish the conference (conference leader) calls each party desired and advises them of
the conference.
2. All...

NEAX2400 IPX Feature Programming ManualPage 650NDA-24297, Issue 1
S-6 Station-Controlled Conference
Programming
STEP 1:ANPD- A number level must be reserved for station numbering plan. In an existing system, a station
level will already be established. If a vacant level does exist, it may be used to create 2 or 3-digit
station numbering. For example:
TN: 1 DC: 3 CI: N, H, BNND: 1 BLF: 1-On
STEP 2:ASPA- For the desired station numbering assign SRV = STN (Station). For example:
ACC: 3 CI: N, H, B SRV = STN...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 651
Station Hunting - Circular S-7
S-7  Station Hunting - Circular
General Description
This feature permits a call to be processed automatically through a hunt group of busy extensions, in a programmed
order.
Operating Procedure
No manual operation is required.
Service Conditions
1. This feature can be activated via FCCS.
2. When all stations within a Circular Hunt Group are busy:
a.) If a call is terminated to a group does not have a...

NEAX2400 IPX Feature Programming ManualPage 652NDA-24297, Issue 1
S-7 Station Hunting - Circular
Service Conditions (cont’d)
16. This feature will be activated whenever the hunt group is dialed or terminated under the following
conditions:
a.) dialed from a station
b.) dialed from ATTENDANT CONSOLE [A-3]
c.) dialed from DID [D-8]
d.) dialed from TIE LINE [T-3]
e.) terminatedbyDIT[D-7]
f.) terminated by HOT LINE [H-1]
g.) terminated by OFF-HOOK ALARM [O-6]
h.) terminated by PRIORITY CALL [P-9]
17. An ISDN...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 653
Station Hunting - Circular S-7
Service Conditions (cont’d)

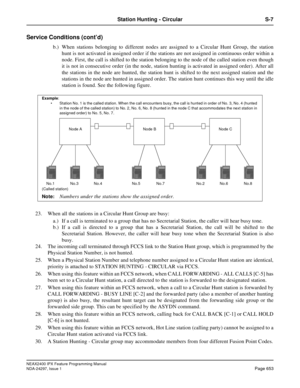

b.) When stations belonging to different nodes are assigned to a Circular Hunt Group, the station
hunt is not activated in assigned order if the stations are not assigned in continuous order within a
node. First, the call is shifted to the station belonging to the node of the called station even though
it is not in consecutive order (in the node, station hunting is activated in...

NEAX2400 IPX Feature Programming ManualPage 654NDA-24297, Issue 1
S-7 Station Hunting - Circular
Service Conditions (cont’d)
31. This feature can be programmed on a node basis even with the use of telephone numbers. In other words,
the feature became available via the data written on the Local Data Memory (LDM), not only on the Data
Memory (DM) or the Network Data Memory (NDM). If this is the case, conditions are as follows:
a.) The feature is to be programmed by using the telephone number of each...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 655
Station Hunting - Circular S-7
Interactions
1. Secretaries are not counted as one of the 100 allowed stations per group.
2. The stations in the hunt group must first be programmed in the ASDT command. Stations placed into a
Station Hunting-Circular Group must have a corresponding LEN.
3. CALL FORWARDING-ALL CALLS [C-5]: If Station A is assigned to a hunt group, CALL
FORWARDING-ALL CALLS [C-5] is activated to Station B:
a.) Calls directly...

NEAX2400 IPX Feature Programming ManualPage 656NDA-24297, Issue 1
S-7 Station Hunting - Circular
Interactions (cont’d)
d.) A call forwarding-override call from Station B to Station A will hunt if Station A is busy.
5. STATION MESSAGE DETAIL RECORDING [S-10]: The number recorded is the telephone number
where the call actually terminates.
6. ATTENDANT CAMP-ON WITH TONE INDICATION [A-1] and CALL WAITING-TERMINATING
[C-12] features are superseded by STATION HUNTING-CIRCULAR.
7. A station in a Station...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 657
Station Hunting - Circular S-7
Programming (cont’d)
STEP 2:APHN- Assign Phantom Number (PHSTN) to each Circular Hunt Station (as necessary)
TN: Tenant Number
REAL STN: Station Number of the Circular Hunt station
PH: Phantom Number mode
0 = Used individually
1 = Used as the pilot number (for station hunting)
CNT (PHSTN): Phantom Station Number
Note:* Indicates the order of a station in the group.
For Pilot Stations within a Hunt Group to...
