NEC Neax 2400 Ipx Feature Programming Manual

NEAX2400 IPX Feature Programming ManualPage 668NDA-24297, Issue 1
S-9 Station Hunting - Terminal
Programming
STEP 1:ASHP- Assign the required data to the Assignment Pilot Hunting command:
TN: Tenant Number
STN: Station Number
SECRET: Secretary Station Number (if necessary)
*STN: Station numbers of the stations included in the Pilot group.
Note:* Indicates the order of a station in the group.
STEP 2:APHN- Assign Phantom Number (PHSTN) to the pilot station:
TN: Tenant Number
REAL STN: Station Number of the...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 669
Station Hunting - Terminal S-9
FCCS Programming (cont’d)
Note 2:Multi PHTELNs (maximum of 16) can be assigned per TELN. Select whether to use each PHTELN for
station hunt or not by the“PH”parameter.

NEAX2400 IPX Feature Programming ManualPage 670NDA-24297, Issue 1
S-10 Station Message Detail Recording (SMDR)
S-10  Station Message Detail Recording (SMDR)
General Description
This feature provides a call record for all outgoing station to trunk calls and incoming trunk to station calls. When
the system is equipped with this feature, an RS232C output port or a SOCKET interface (LAN) is provided,
permitting interface with a customer-owned computer system. All output is in the ASCII format, and includes...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 671
Station Message Detail Recording (SMDR) S-10
Service Conditions (cont’d)
8. If the distance between the system and the processing computer exceeds 50 feet (15 meters), an
asynchronous-type modem should be used.
9. RS232C Interface specifications: Synchronization Asynchronous
Data Speed 300, 600, 1200, 2400, 4800, 9600bps
Code ASCII 7-Bit + parity Bit
Maximum Distance 50 ft. (15m) without modem
10. Supervision on the status of the external...

NEAX2400 IPX Feature Programming ManualPage 672NDA-24297, Issue 1
S-10 Station Message Detail Recording (SMDR)
Service Conditions (cont’d)
31. Additional hardware is required.
32. When either of the 2 parties goes On-Hook (or presses Transfer key, Hold key, Answer key, Over key)
during Station-to-Station Calling [S-11], output of the billing information will be completed.
33. Call Time specification:
The base for Call Start Time and Call End Time is the time in the calling party-side node.
In case...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 673
Station Message Detail Recording (SMDR) S-10
Service Conditions (cont’d)
39. When a line connection is established on the FCCS link, the billing data concerned is collected fully in the
called station-side node, not in the calling station side. The collected data is then transmitted to the SMDR
terminal as the call finishes.
40. Multiple Center Nodes can be assigned on a FCCS network for centralized billing purposes.
41. Transmission of...

NEAX2400 IPX Feature Programming ManualPage 674NDA-24297, Issue 1
S-10 Station Message Detail Recording (SMDR)
Service Conditions (cont’d)
Example 2
Node A tries to collect the billing information of Node B and Node C via FCCS, using the polling method
(Node A cannot collect the billing information of Node C via FCCS).
Node C sends the billing information via CCIS, ignoring polling from Node A.
Node C deletes the Point Code (CCIS) of Node A for centralized billing data when required to send billing...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 675
Station Message Detail Recording (SMDR) S-10
Service Conditions (cont’d)
Example 3
Node A tries to collect the billing information of Node B via FCCS, using the polling method (Node A
cannot collect the billing information of Node B via FCCS).
Node B sends the billing information via CCIS, ignoring polling from Node A.
Node B deletes the Point Code (CCIS) of Node C for centralized billing data when required to send billing
information...

NEAX2400 IPX Feature Programming ManualPage 676NDA-24297, Issue 1
S-10 Station Message Detail Recording (SMDR)
Service Conditions (cont’d)

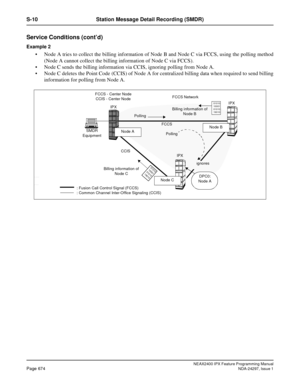

Example 5
Node A collects the billing information of Node B and Node C via FCCS, using the polling method (Billing
information of Node B cannot be collected).
Node B sends the billing information to Node D via CCIS, ignoring polling from Node A.
Node B deletes the Point Code (CCIS) for Node D when Node B wants to send billing information for
polling from Node A....

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 677
Station Message Detail Recording (SMDR) S-10
Service Conditions (cont’d)

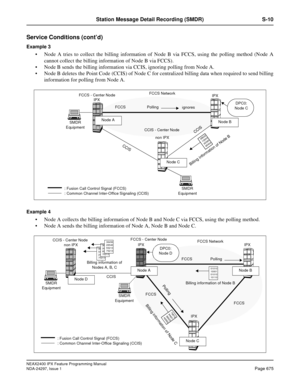

Example 6
Node A collects the billing information of Node B, Node C and Node D, which are stored in Node B by
polling method.
Node D sends the billing information to Node B.
SOCKET Interface (LAN Interface) Conditions
1. SMDR data can be output via LAN cable.
2. A maximum of four SMDR apparatuses per node are available.
3. When providing this feature with LAN...
