NEC Neax 2400 Ipx Feature Programming Manual

NEAX2400 IPX Feature Programming ManualPage 928NDA-24297, Issue 1
L-25 Look Ahead Routing - CCIS
Programming (cont’d)
If a station in Office A calls a station in Office B, and that station is forwarded to a station in Office A,
the link will become idle between Office A and B after the station in A answers.
If a station in Office A calls a station in Office B and then transfers the call to Station C (which is also
in Office A), Office B disconnects, and the link which goes to Office A drops. The call...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 929
LDN Night Connection - CCIS L-29
L-29  LDN Night Connection - CCIS
General Description
When an LDN incoming call arrives from a CCIS line or other outside line while the System is in Night Mode, this
service feature transfers the call to a transfer destination outside line, including CCIS lines, assigned for that LDN.
Operating Procedure
1. Attendants 1 & 2 in Node A set into Night mode using the NITE key; the Night lamp illuminates...

NEAX2400 IPX Feature Programming ManualPage 930NDA-24297, Issue 1
L-29 LDN Night Connection - CCIS
Operating Procedure (cont’d)
3. Station (B) answers; Stations (B) and (C) are connected with each other. If necessary, the call can be
transferred to another station by means of Call Transfer-All Calls service.
Service Conditions
1. The ranking of this service feature within the Night Connection service is as follows:
Night Connection Flexible.
Night Connection Fixed.
LDN Night Connection (This...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 931
LDN Night Connection - CCIS L-29
Service Conditions (cont’d)
7. If the system changes to Night Mode during a call termination to the Attendant Console, an LDN incoming
call will be connected to the transfer destination associated with the LDN dialed. If this connection is not
possible because of the status of the transfer destination, the call is handled by the next-ranked Night
Connection service (Night Connection Outside, TAS etc.), or...

NEAX2400 IPX Feature Programming ManualPage 932NDA-24297, Issue 1
M-34 Message Reminder - CCIS
M-34  Message Reminder - CCIS
General Description
This service feature allows Inter-Office Message Reminder when the calling station and the called station belong to
different PBXs in the CCIS network.
Operating Procedure
From Dterm to Dterm
1. DtermA and B are engaging in a call.
2. D
termC goes off-hook and dials the number for DtermB; receives busy tone.
3. D
termC presses the MSG key and receives service...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 933
Message Reminder - CCIS M-34
Operating Procedure (cont’d)
5. DtermB hangs up.
6. While the message lamp illuminates, D
termB goes off-hook or presses the SPEAKER key and receives
dial tone.
7. D
termB presses the MSG key and receives ringback tone. Redial is automatically made to DtermC, and
DtermC rings.
From a single-line Station to a Dterm
1. Dterms A and B are engaging in a call.
NE
C
NE
C
NEC
Dterm (a)
[Node A][Node B]
Dterm (b)...

NEAX2400 IPX Feature Programming ManualPage 934NDA-24297, Issue 1
M-34 Message Reminder - CCIS
Operating Procedure (cont’d)
2. Station C goes off-hook and dials the number for DtermB; receives busy tone.
3. Station C switch hook flashes; receives special dial tone.
4. Station C dials the MESSAGE REMINDER access code; receives service set tone. The MESSAGE lamp
on D
termB illuminates, indicating that the message has been set.
5. D
termB hangs up.
6. While the message lamp illuminates, D
termB goes...

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 935
Message Reminder - CCIS M-34
Operating Procedure (cont’d)
7. DtermB presses the MSG key and receives ringback tone. Redial is automatically made to Station C and
Station C rings.
Service Conditions
1. A message can be sent out only when the called station is either idle or busy.
2. A message can be sent out during ringing, recall from Call Transfer-All Calls, or recall from Consultation
Hold-All Calls.
3. A maximum of four messages can be...

NEAX2400 IPX Feature Programming ManualPage 936NDA-24297, Issue 1
M-34 Message Reminder - CCIS
Programming (cont’d)
STEP 2:ANPD- Assign minimum necessary number of digits for the first number of the Access Code of
Message Reminder service.
STEP 3:ASPA- Assign the Access Code of the Message Reminder service.
CI = H (Hooking) SRV = SSCA (Service Code Appendix)
CI = B (Busy) SIDA = 42:
STEP 4:ASFC- With respect to SFC of the stations which sets Message Reminder service, cancel the
restriction of SFI = 53....

NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1Page 937

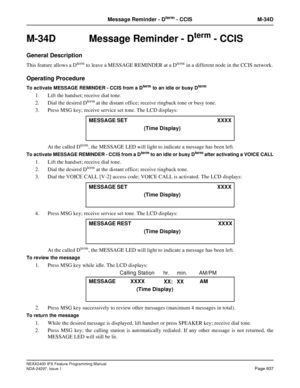

Message Reminder - Dterm- CCIS M-34D
M-34D  Message Reminder - Dterm - CCIS
General Description
ThisfeatureallowsaDtermto leave a MESSAGE REMINDER at a Dtermin a different node in the CCIS network.
Operating Procedure
To activate MESSAGE REMINDER - CCIS from a Dterm to an idle or busy Dterm
1. Lift the handset; receive dial tone.
2. Dial the desired D
termat the distant office; receive ringback tone or busy tone.
3. Press MSG key; receive...
